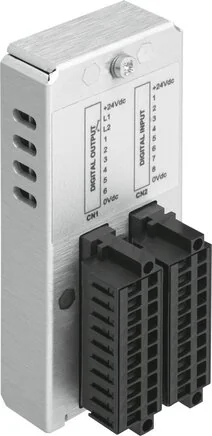

Festo - CDPX-EA-V2-8023321 - Input/Output Module

SKU: festo-cdpx-ea-v2-8023321

Browse all parts
Festo - CDPX-EA-V2-8023321 - Input/Output Module

€515.06€440.22 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€515.06

Brand
Festo
Permission
c UL us - Listed (OL)
Height (mm)
89
Length (mm)
41
Material Note
RoHs compliant
Relative Humidity
Not condensing
Protection Category
IP20
Integration Depth (mm)
34
LABS (PWIS) Conformity
VDMA24364-Zone III
Quantity Digital Inputs
8
Digital Outputs, Contact
1 relay
Quantity Digital Outputs
7
Ambient Temperature (°C)
0 to 50
Bearing Temperature (°C)
-20 to 70
Digital Outputs, Output Voltage
12 - 30 V DC
Digital Outputs, Output Current (A)
0.5
Digital Inputs, Potential Separation
yes
Digital Outputs, Overload Protection
yes
Digital Outputs, Potential Separation
yes
Digital Inputs, Nominal Value For TRUE
12 - 30 VDC
Digital Inputs, Input Signal Delay (ms)
20
Digital Inputs, Input Voltage / Current
24 VDC
Digital Inputs, Nominal Value For FALSE (V)
0
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
Digital Outputs, Short Circuit Current Rating
yes
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
EAN
4052568258498
Manufacturer
Festo
