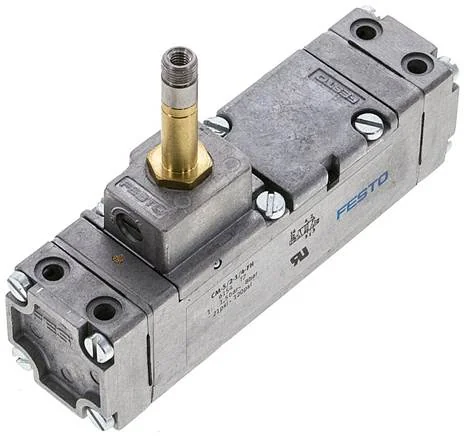

Festo - CM-5/2-1/4-FH-6154 - Solenoid Valve

SKU: festo-cm-5-2-1-4-fh-6154

Browse all parts
Festo - CM-5/2-1/4-FH-6154 - Solenoid Valve

€714.43€610.62 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€714.43

Brand
Festo
Actuation Type
Electrical
Fastening Type
on connection plate
Seals Material
NBR
Valve Function
5/2 monostable
Housing Material
Aluminium wrought alloy
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Diaphragm Material
PUR
Nominal Width (mm)
6,5
Material Information
LABS containing materials included
Hand Assist Actuation
tentative
Installation Position
arbitrary
Shifting Time On (ms)
28
Pneumatic Connection 1
G1/4
Pneumatic Connection 2
G1/4
Pneumatic Connection 3
G1/4
Pneumatic Connection 4
G1/4
Pneumatic Connection 5
G1/4
Medium Temperature (°C)
-10 to 60
Operating Pressure (bar)
1.5 to 8
Control Air 12 Connection
G1/8
Control Air 14 Connection
G1/8
Normal Nominal Flow (l/min)
1.400
Max. Switching Frequency (Hz)
40
Information About Operating And Control Medium
Oiled operation possible (required in further operations)
EAN
4052568110857
Manufacturer
Festo
