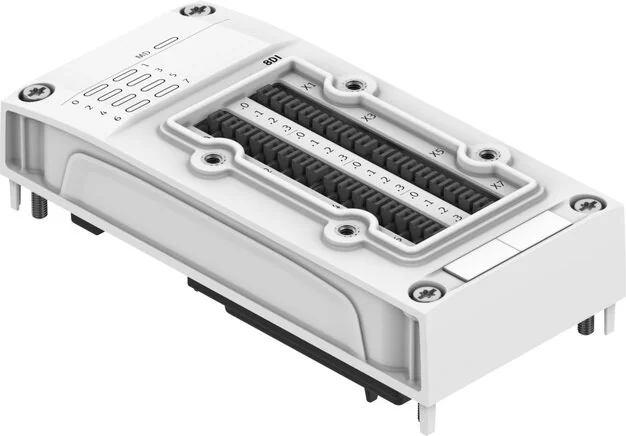

Switch Level
Signal 1: >= 11 V
Material Note
phosphorsäureesterfrei
Cover Material
PBT reinforced
Fastening Type
Permanently screwed
Screws Material
Nickel-plated steel
Max. Line Length
30 m Eingänge
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Channel Parameter
Eingangsentprellzeit
Diagnosis Via LED
Status pro Kanal
Relative Humidity
Not condensing
Dimensions W x L x H
50,1 mm x 107,3 mm x 57,5 mm
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Installation Position
arbitrary
Max. Setup Height (m)
3.500
LABS (PWIS) Conformity
VDMA24364-B2-L
Switching Logic Inputs
3-Drahtsensoren nach IEC 61131-2
Nominal Altitude Of Use
<= 2000 m ASL (> 79,5 kPa)
Ambient Temperature (°C)
-20 to 50
Bearing Temperature (°C)
-20 to 70
Fire Inspection, Material
UL94 V-0 (Gehäuse)
Input Debouncing Time (ms)
20
Max. Address Volume, Inputs
1
Reverse Polarity Protection
yes
Characteristic Curves Inputs
to IEC 61131-2 type 3
Power Blackout Bridging (ms)
10
Corrosion Resistance Class KBK
1 - low corrosion stress
Communication Interface, Protocol
AP
Max. Power Supply Per Channel (A)
0.5
Diagnostics Per Internal Communication
Unterspannung Elektronik/Sensoren
Electrical Connection: Input, Function
Digital input
Fuse Protection Of Inputs (Short Circuit)
Internal electronic fuse Per module
Electrical Connection: Input, Connection Type
8x multi tube holder
Max. Cumulative Current Inputs Per Module (A)
1,8
Electrical Isolation Of Inputs Between Channels
no
Permitted Voltage Oscillations Electronics/sensors
± 25 %
Electrical Connection: Input, Connection Technology
Spring tension clamp
Behaviour After End Of Overload Of The Sensor Supply
Automatische Wiederkehr
Electrical Connection: Inlet, Conductor Cross-section
0,25 to 1,5
Nominal Operating Voltage DC Electronics / Sensor (V)
24
Electrical Connection: Inlet, Conductor Cross-section (AWG)
AWG24 - AWG16
Intrinsic Power Input Operating Voltage Electronics/sensors
typisch 40 mA
Electrical Connection: Inlet, Information On Conductor Cross-section
0,13 - 1,5 mm² für Leiter flexibel ohne Aderendhülse
Electrical Isolation Of Inputs Between Channel - Internal Communication
yes
