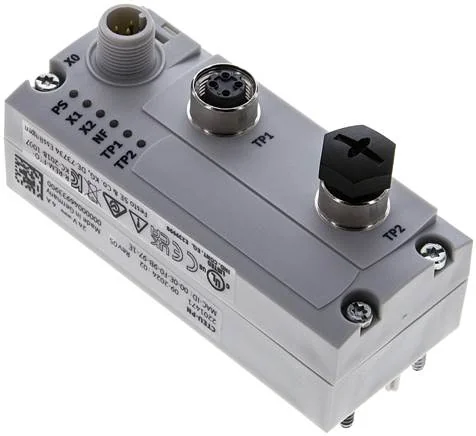

Festo - CTEU-PN-2201471 - Bus Node

SKU: festo-cteu-pn-2201471

Festo - CTEU-PN-2201471 - Bus Node

€603.81€516.08 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€603.81

Brand
Festo
Report
PROFINET
Diagnosis
Unterspannung, Kommunikationsfehler, Systemdiagnose
Permission
RCM mark, c UL us - Listed (OL)
Fastening Type
auf Elektrik-Anschaltung, auf Elektrik-Anschlussplatte
Housing Material
PA
Fieldbus Interface
Ethernet
Fast start up (FSU), LLDP, MRP, PROFINET IRT, PROFIenergy, SNMP, Conformance Class C, Shared device, Web server
Internal Cycle Time
1 ms per 1 byte user data
Protection Category
IP65, IP67
Dimensions W x L x H
40 mm x 91 mm x 50 mm
Pitch Dimension (mm)
40
LED Display Bus Specific
NF: Network error, TP1: Network active port 1, TP2: Network active port 2
Voltage Supply, Function
Electronics and load
Ambient Temperature (°C)
-5 to 50
Bearing Temperature (°C)
-20 to 70
Fieldbus Interface, Report
PROFINET RT
Max. Address Volume, Inputs
KC-EMV
Fieldbus Interface, Function
PS: Operating voltage electronics and load supply, X1: System status module I port 1, X2: System status module I port 2
Max. Address Volume, Outputs
to EU EMC directive
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Operating Voltage Range DC (V)
18 to 30
Voltage Supply, Connection Type
Plug
Power Supply, Connection Pattern
LABS containing materials included, RoHs compliant
Max. Address Volume Inputs (Byte)
64
Fieldbus Interface, Connection Type
2x socket
Information About Protection Category
in assembled condition, unused connection closed
Voltage Supply, Connection Technology
M12x1 A coded to EN 61076-2-101
Voltage Supply, Number Of Poles/wires
5
Fieldbus Interface, Connection Technology
M12x1 D coded to EN 61076-2-101
Fieldbus Interface, Galvanically Separated
yes
Fieldbus Interface, Number Of Pins / Wires
4
Intrinsic Power Input At Operating Voltage
Typical 80 mA
UKCA Marking (See Declaration Of Conformity)
100 Mbit/s
Fieldbus Interface, Galvanically Separated (A)
4
Intern Power Consumption Nominal Operating Voltage
GSDML file
EAN
4052568264444
Manufacturer
Festo
