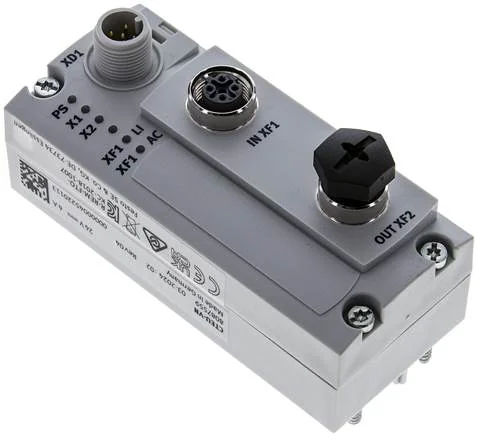

Festo - CTEU-VN-8087559 - Bus Node

SKU: festo-cteu-vn-8087559

Festo - CTEU-VN-8087559 - Bus Node

€591.98€505.97 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€591.98

Brand
Festo
Diagnosis
Unterspannung, Kommunikationsfehler, Systemdiagnose
Permission
RCM mark
Fastening Type
auf Elektrik-Anschaltung, auf Elektrik-Anschlussplatte
Parameterising
Failsafe-Reaktion, IO-Link Modus
Housing Material
PA
Fieldbus Interface
Ethernet
FFT, VARAN Splitter
Internal Cycle Time
1 ms per 1 byte user data
Protection Category
IP65, IP67
Dimensions W x L x H
40 mm x 91 mm x 50 mm
Pitch Dimension (mm)
40
LED Display Bus Specific
XF1 AC: Netzwerk Datenverkehr Port 1, XF1 LI: Netzwerk aktiv Port 1
Voltage Supply, Function
Electronics and load
Ambient Temperature (°C)
-5 to 50
Bearing Temperature (°C)
-20 to 70
Fieldbus Interface, Report
VARAN
Max. Address Volume, Inputs
KC-EMV
Fieldbus Interface, Function
PS: Operating voltage electronics and load supply, X1: System status module I port 1, X2: System status module I port 2
Max. Address Volume, Outputs
to EU EMC directive
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Operating Voltage Range DC (V)
18 to 30
Voltage Supply, Connection Type
Plug
Power Supply, Connection Pattern
LABS containing materials included, RoHs compliant
Max. Address Volume Inputs (Byte)
32
Fieldbus Interface, Connection Type
2x socket
Information About Protection Category
in assembled condition, unused connection closed
Voltage Supply, Connection Technology
M12x1 A coded to EN 61076-2-101
Voltage Supply, Number Of Poles/wires
5
Fieldbus Interface, Connection Technology
M12x1 D coded to EN 61076-2-101
Fieldbus Interface, Galvanically Separated
yes
Fieldbus Interface, Number Of Pins / Wires
4
Intrinsic Power Input At Operating Voltage
Type 65 mA
UKCA Marking (See Declaration Of Conformity)
100 Mbit/s
Fieldbus Interface, Galvanically Separated (A)
4
Intern Power Consumption Nominal Operating Voltage
LASAL Baustein
EAN
4052568451608
Manufacturer
Festo
