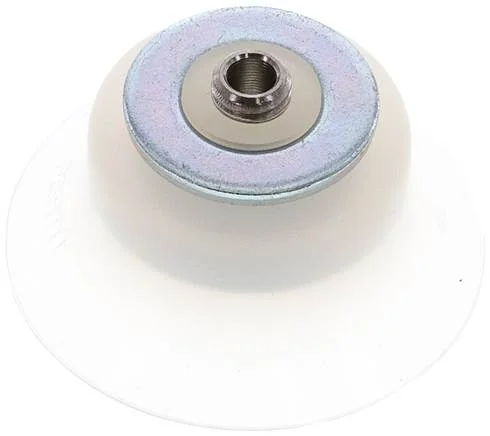

Festo - ESS-60-ES-189356 - Vacuum Sucker

SKU: festo-ess-60-es-189356

Browse all parts
Festo - ESS-60-ES-189356 - Vacuum Sucker

€48.41€41.38 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€48.41

Brand
Festo
Colour
transparent
Material Note
RoHs compliant
Stud Material
Stahl, verzinkt und verchromt
Fastening Type
Via vacuum connection
Shore Hardness
50 ± 5
Operating Medium
Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Suction Cup Shape
rund extra-tief
Vacuum Connection
M10
Food Compatibility
See expanded material information
Nominal Width (mm)
6
Operating Pressure
-0,095 to 0
Suction Cup Volume
19,77
Connection Position
top
Installation Position
arbitrary
Suction Cups Material
VMQ (Silicone)
LABS (PWIS) Conformity
VDMA24364-Zone III
Ambient Temperature (°C)
-30 to 180
Suction Cup Diameter (mm)
60
Min. Workpiece Radius (mm)
120
Nominal Operating Pressure
-0,07
Allocate Suction Cup Fixation
Size 5
Corrosion Resistance Class KBK
1 - low corrosion stress
Shear Force For Nominal Operating Pressure (N)
63,5
Holding Force For Nominal Operating Pressure (N)
162,50
EAN
4052568078782
Manufacturer
Festo
