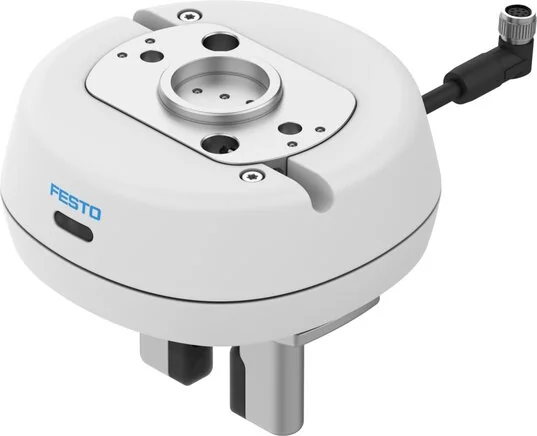

Festo - HPPH-16-16-NC-N-SR12-8205392 - Parallel Gripper

SKU: festo-hpph-16-16-nc-n-sr12-8205392

Browse all parts
Festo - HPPH-16-16-NC-N-SR12-8205392 - Parallel Gripper

€2,074.64€1,773.20 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€2,074.64

Brand
Festo
Size
16
Guide
Kugelführung
Dampening
nicht einstellbar
Permission
RCM mark
Drive System
pneumatic
Mass Inertia
0,6
Control Input
NPN
Material Note
RoHs compliant
Control Output
PNP
Cover Material
PA reinforced
Fastening Type
nach ISO 9409
O-ring Material
NBR
Piston Material
Aluminium-Knetlegierung, eloxiert
Screws Material
High-alloyed steel
Spring Material
High-alloyed stainless steels
Gripper Function
Parallel
Housing Material
Aluminium-Knetlegierung, eloxiert
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Relative Humidity
Not condensing
Total Stroke (mm)
16
Certification Body
TÜV Süd M70132770525.01
Position Detection
mit Wegmesssystem integriert
Construction Set Up
Force controlled movement cycle
Gear Wheel Material
High-alloyed steel
Max. Torque Mx (Nm)
2,8
Max. Torque My (Nm)
1,4
Max. Torque Mz (Nm)
1,4
Protection Category
IP40
Maintenance Interval
Lifetime lubrication
Max. Power Input (A)
100
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Pneumatic Connection
für Steckanschluss-Außen-Ø 4 mm
Gripper Jaws Material
High-alloyed steel
Gripping Force Safety
When closing
Installation Position
arbitrary
Quantity Gripper Jaws
2
LABS (PWIS) Conformity
VDMA24364-Zone III
Material - Piston Seal
TPE-U(PU)
Principle Of Operation
double acting
Material Gripper Finger
Aluminium-Knetlegierung, eloxiert
Operating Pressure (MPa)
0,25 to 0,7
Ambient Temperature (°C)
-5 to 50
Switching Status Indicator
LED blau, Schaltzustand über Signaleingang
Repeatability Grippers (mm)
0,06
Stroke Per Gripper Jaw (mm)
8
Operating Pressure MRK (MPa)
0.25 to 0.5
Sound Pressure Level (dB(A))
75
Max. Gripper Jaw Play Sz (mm)
0
Corrosion Resistance Class KBK
1 - low corrosion stress
Permitted Voltage Oscillations
± 10 %
Electrical Connection 1, Design
round
Nominal Operating Voltage DC (V)
24
Electrical Connection 1, Function
Field device screen
Total Gripping Force MRK Close (N)
232 to 256
Max. Working Frequency Gripper (Hz)
1
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Electrical Connection 1, Cable Output
Angled
Electrical Connection 1, Connection Type
Kabel mit Dose
Max. Force On Gripper Jaws Fz Static (N)
176
Max. Mass Per External Griper Finger (g)
100
Recommended Workpiece Weight For MRK (kg)
1
Bending Radius, Moving Cable Placement (mm)
52
Electrical Connection 1, Connection Pattern
997559
Electrical Connection 1, Occupied Pin / Wire
6
Gripping Force Per Gripper Jaw MRK Close (N)
116 to 128
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
Max. Angular Gripper Jaw Backlash Ax, Ay (°)
0
Bending Radius, Permanent Cable Placement (mm)
26
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M8x1, A coded to EN 61076-2-104
Electrical Connection 1, Number Of Pins / Wires
8
Electrical Connection 1, Tightening Torque (Nm)
0,2
Min. Closing Time At 0.6 MPa (6 bar, 87 psi) (ms)
90
Min. Opening Time At 0.6 MPa (6 bar, 87 psi) (ms)
180
Theoretical Spring Force Per Gripper Jaw, Closing (N)
23,3 to 34,9
Total Gripping Force, Closing, 0.6MPa (6bar, 87 psi) (N)
278 to 302
Gripper Force Per Gripper Jaw, Closing, 0.6 MPa (6 bar, 87 psi) (N)
139 to 151
EAN
4052568651831
Manufacturer
Festo
