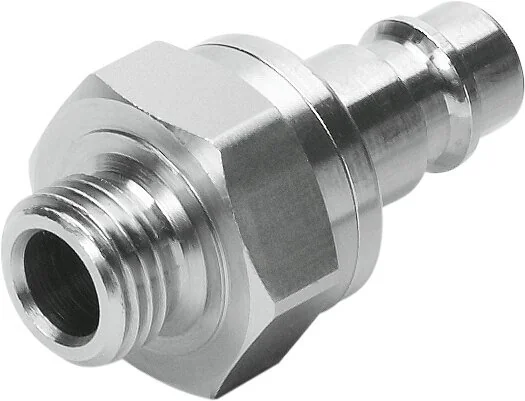

Festo - KS4-1/4-A-R-531677 - Coupling Plug

SKU: festo-ks4-1-4-a-r-531677

Browse all parts
Festo - KS4-1/4-A-R-531677 - Coupling Plug

€15.56€13.30 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€15.56

Brand
Festo
Material Note
RoHs compliant
Seals Material
NBR
Spring Material
High-alloyed stainless steels
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Nominal Width (mm)
8
Valve Body Material
Brass
Material Information
Brass
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Male thread G1/4
Thread Sealing Material
PA66-GF30 / TPE-U
Ambient Temperature (°C)
-10 to 60
Corrosion Resistance Class KBK
1 - low corrosion stress
Nominal Tightening Torque (Nm)
9,50
Note On Operating And Control Medium
Oiled operation possible
Tolerance To Nominal Tightening Torque
± 15 %
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 1,2
Nominal Flow Rate Standardised According To ISO 8778
829,3
Standard Nominal Flow Rate (Standardised To DIN 1343)
765
EAN
4052568047887
Manufacturer
Festo
