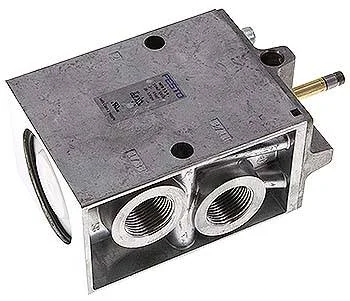

Festo - MFH-3-3/4-11967 - Solenoid Valve

SKU: festo-mfh-3-3-4-11967

Browse all parts
Festo - MFH-3-3/4-11967 - Solenoid Valve

€660.76€564.75 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€660.76

Brand
Festo
Overlap
negative Überdeckung
Permission
c UL us - Recognized (OL)
Reset Mode
Mechanical spring
Control Type
pilot operated
Material Note
RoHs compliant
Actuation Type
Electrical
Fastening Type
With throughway bores
Flow Direction
Not reversible
Seals Material
NBR
Valve Function
3/2 closed monostable
Build Width (mm)
68,0
Exhaust Function
Can be throttled
Housing Material
Aluminium die casting
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Sealing Principle
Soft
Control Air Supply
Internal
Nominal Width (mm)
19
Construction Set Up
Plate seat
Protection Category
IP65
Electrical Connection
Via f-coil, order separately
Hand Assist Actuation
Ratcheting
Installation Position
arbitrary
Shifting Time On (ms)
36
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G3/4
Pneumatic Connection 2
G3/4
Pneumatic Connection 3
G3/4
Shifting Time Off (ms)
32
Medium Temperature (°C)
-10 to 60
Operating Pressure (MPa)
0,2 to 0,8
Ambient Temperature (°C)
-5 to 40
Bearing Temperature (°C)
-20 to 60
Coil Characteristic Value
See solenoid coil, order separately
Exhaust Control Connection 82
M5
Corrosion Resistance Class KBK
1 - low corrosion stress
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Max. Positive Test Impulse At 0 Signal
2200
Standard Nominal Flow Rate (Standardised To DIN 1343)
7500
EAN
4052568111946
Manufacturer
Festo
