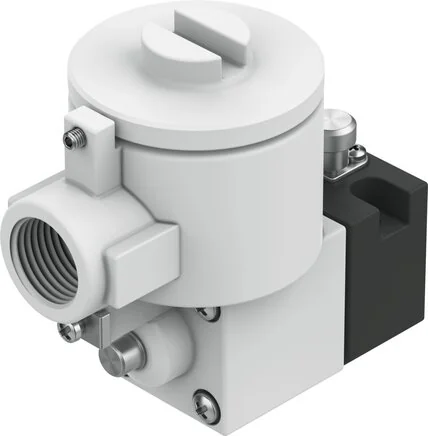

Festo - MGXDH-3/2-H-T-1.2-110DC-EX-8118346 - Pilot Valve

SKU: festo-mgxdh-3-2-h-t-1-2-110dc-ex-8118346

Browse all parts
Festo - MGXDH-3/2-H-T-1.2-110DC-EX-8118346 - Pilot Valve

€426.36€364.41 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€426.36

Brand
Festo
Reset Mode
Mechanical spring
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Fastening Type
CNOMO
Flow Direction
Not reversible
Valve Function
3/2 closed monostable
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
ATEX Gas Category
II 2G
ATEX Dust Category
II 2D
Certification Body
IEC: IECEx CML 17.0147X
Construction Set Up
Switch on valve
Protection Category
IP66
Hand Assist Actuation
tentative
Ex Ambient Temperature
-65°C<= Ta <= +40°C
LABS (PWIS) Conformity
VDMA24364-Zone III
Operating Pressure (MPa)
-0,09 to 0,8
Ambient Temperature (°C)
-65 to 80
Coil Characteristic Value
110 V DC: 3,0 W
Insulation Material Class
H
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Ex Ignition Protection Type Gas
Ex db IIC T4 Gb
Ex Ignition Protection Type Dust
Ex tb IIIC T135°C Db
Permitted Frequency Oscillations
± 10 %
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Ex Protection Approval Outside Of The EU
EPL Gb (IEC-EX)
CE Certificate (See Declaration Of Conformity)
to EU EX protection directive (ATEX)
EAN
4052568580964
Manufacturer
Festo
