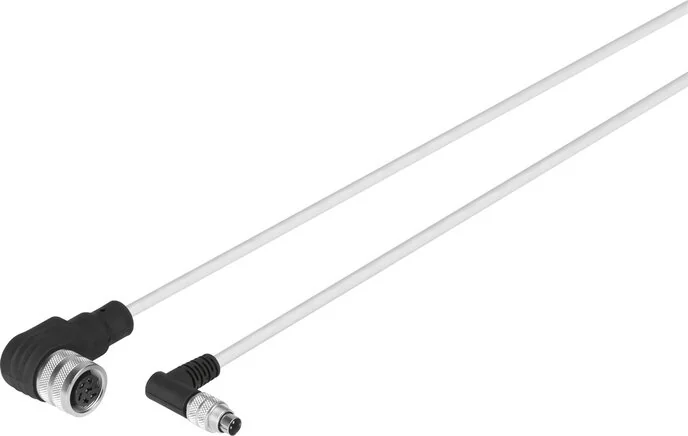

Festo - NEBP-M16W6-K-2-M9W5-575898 - Connection Line

SKU: festo-nebp-m16w6-k-2-m9w5-575898

Browse all parts
Festo - NEBP-M16W6-K-2-M9W5-575898 - Connection Line

€198.57€169.72 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€198.57

Brand
Festo
Shielding
yes
Cable Set Up
2 x 0,25 mm² + 2 x 0,34 mm² + 0,49 mm²
Material Note
RoHs compliant
Housing Colour
black
Line Properties
energiekettentauglich
Cable Length (m)
2
Housing Material
TPE-U(PUR)
Line Designation
With Accessories
Cable Diameter (mm)
5,5
Cable Shield Colour
Light grey
Protection Category
IP67
Screw Lock Material
brass, nickel-plated
Additional Functions
product specific pin assignment
Test Conditions Line
Prüfbedingungen nach Anfrage
Cable Sleeve Material
TPE-U(PUR)
LABS (PWIS) Conformity
VDMA24364-B2-L
Plug Contacts Material
brass, Gold plated
Degree Of Contamination
1
Ambient Temperature (°C)
-20 to 70
Insulation Sleeve Material
TPE-U(PUR)
Surge Voltage Strength (kV)
0,5
Corrosion Resistance Class KBK
1 - low corrosion stress
Operating Voltage Range DC (V)
0 to 30
Electrical Connection 1, Design
round
Electrical Connection 2, Design
round
Conductor - Nominal Cross-section
0,25 to 0,34 to 0,49
Electrical Connection 1, Function
Field device screen
Electrical Connection 2, Function
Control screen
Electrical Connection 1, Cable Output
Angled
Electrical Connection 2, Cable Output
Angled
Information About Protection Category
In mounted condition
Current Carrying Capacity At 40 °C (A)
3
Electrical Connection 1, Fastening Type
Screw lock
Electrical Connection 2, Fastening Type
Screw lock
Electrical Connection 1, Connection Type
socket / container / ….
Electrical Connection 2, Connection Type
Plug
Bending Radius, Moving Cable Placement (mm)
75
Electrical Connection 1, Connection Pattern
995709
Electrical Connection 2, Connection Pattern
995745
Electrical Connection 1, Occupied Pin / Wire
4
Electrical Connection 2, Occupied Pin / Wire
4
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M16x0,75
Electrical Connection 2, Connection Technology
M9x0,5
Electrical Connection 1, Number Of Pins / Wires
6
Electrical Connection 2, Number Of Pins / Wires
5
Information About Current Load Rating At 40 °C
3,6 A fuer 0,49 mm²
Ambient Temperature For Moving Cable Placements (°C)
-5 to 70
EAN
4052568224158
Manufacturer
Festo
