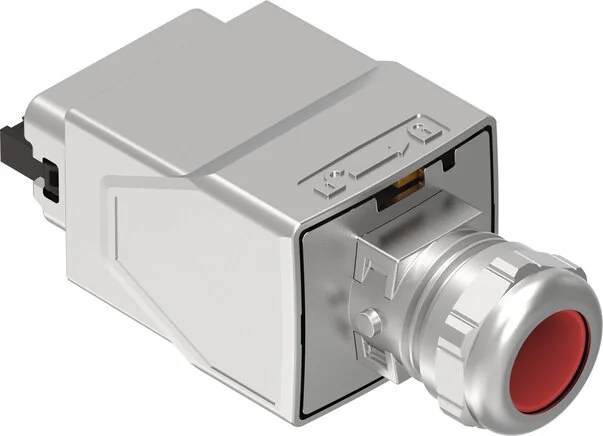

Festo - NECU-M-PPG5PP-C1-PN-5195383 - Power Connection Socket

SKU: festo-necu-m-ppg5pp-c1-pn-5195383

Browse all parts
Festo - NECU-M-PPG5PP-C1-PN-5195383 - Power Connection Socket

€59.82€51.13 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€59.82

Brand
Festo
Report
PROFINET
Cable Output
straight
Housing Colour
silver
Seals Material
NBR, TPE-V
Fire Inspection
UL94 V-0
Housing Material
Zinc pressure cast, nickel-plated
Cable Diameter (mm)
9 to 13
Protection Category
IP65, IP67
Additional Functions
meets requirements acc. to AIDA
Connection Frequency
100
Material Information
RoHs compliant
1 - low corrosion stress
LABS (PWIS) Conformity
3
Plug Contacts Material
Copper allow, nickel and gold plated
Ambient Temperature (°C)
-40 to 85
Bearing Temperature (°C)
-40 to 85
Operating Voltage Range DC (V)
0 to 24
Electrical Connection 1, Design
Angular
Conductor - Nominal Cross-section
AWG18 - 13
Nominal Conductor cross-section/I2
Pg13.5 hexagonal SW22
Information About Protection Category
In mounted condition
Current Carrying Capacity At 40°C (A)
16,0
Electrical Connection 1, Fastening Type
Push-Pull with lock against accidental pulling
Conductor - Nominal Cross-section (mm²)
0.75 to 2.5
Electrical Connection 1, Connection Type
socket / container / ….
Electrical Connection 1, Occupied Pin / Wire
5
Electrical Connection 1, Connection Technology
Wiring diagram PP, coding on Pin 2 and 5
Electrical Connection 2, Connection Technology
Spring tension clamp
Electrical Connection 1, Number Of Pins / Wires
5
EAN
4052568293758
Manufacturer
Festo
