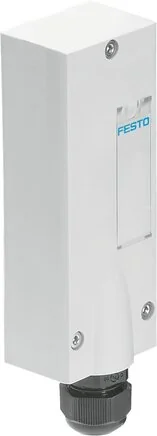

Festo - NECV-S1W37-545974 - Hood

SKU: festo-necv-s1w37-545974

Browse all parts
Festo - NECV-S1W37-545974 - Hood

€43.59€37.26 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€43.59

Brand
Festo
Cable Gland
M20x1,5
Housing Material
PA
Cable Diameter (mm)
5 to 13
Protection Category
NEMA 4
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Ambient Temperature (°C)
-5 to 50
Surge Voltage Strength (kV)
1
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Operating Voltage Range DC (V)
0 to 30
Electrical Connection 1, Design
Angular
Conductor - Nominal Cross-section
0.08 to 0.5
Electrical Connection 1, Function
Field device screen
Electrical Connection 1, Cable Output
Angled
Information About Protection Category
In mounted condition
Current Carrying Capacity At 40 °C (A)
2
Electrical Connection 1, Fastening Type
3x M4 screws
Electrical Connection 1, Connection Type
socket / container / ….
Electrical Connection 1, Connection Pattern
995644
Electrical Connection 1, Occupied Pin / Wire
37
Electrical Connection 1, Connection Technology
Sub-D
Electrical Connection 2, Connection Technology
Crimp contacts
Electrical Connection 1, Number Of Pins / Wires
37
EAN
4052568091996
Manufacturer
Festo
