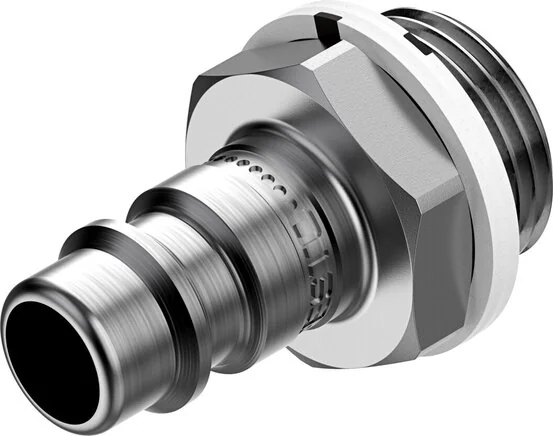

Festo - NPHS-S6-M-G38-8059259 - Coupling Plug

SKU: festo-nphs-s6-m-g38-8059259

Festo - NPHS-S6-M-G38-8059259 - Coupling Plug

€8.41€7.19 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€8.41

Brand
Festo
Material Note
RoHs compliant
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Nominal Width (mm)
7,85
Material Information
Zinc-plated steel
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Male thread G3/8
Thread Sealing Material
PA66-GF30 / TPE-U
Ambient Temperature (°C)
-10 to 60
Corrosion Resistance Class KBK
1 - low corrosion stress
Nominal Tightening Torque (Nm)
12,5
Note On Operating And Control Medium
Oiled operation possible
Tolerance To Nominal Tightening Torque
± 20 %
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 1,2
Nominal Flow Rate Standardised According To ISO 8778
1125,2 to 2222,2
Standard Nominal Flow Rate (Standardised To DIN 1343)
1038 to 2050
EAN
4052568290061
Manufacturer
Festo
