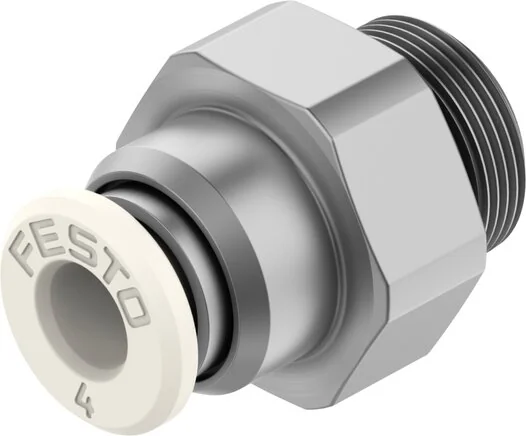

Festo - NPQO-D-G18-Q4-P10-8203294 - Push-In Fitting

SKU: festo-npqo-d-g18-q4-p10-8203294

Browse all parts
Festo - NPQO-D-G18-Q4-P10-8203294 - Push-In Fitting

€17.42€14.89 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€17.42

Brand
Festo
Design
straight shape
Packing Size
10
Material Note
RoHs compliant
Sleeve Colour
white
Stud Material
High-alloyed stainless steels
O-ring Material
FPM
Sleeve Material
PVDF
Housing Material
High-alloyed stainless steels
Operating Medium
Nitrogen
Seal Type On Stud
O-ring
Food Compatibility
See expanded material information
Nominal Width (mm)
3,2
Construction Set Up
Push-pull principle
Thrust Ring Material
PVDF
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-Zone III
Pneumatic Connection 1
Male thread G1/8
Pneumatic Connection 2
für Schlauch Außen-Ø 4 mm
Hose Plug-in Depth (mm)
14,8
Thread Sealing Material
FPM
Medium Temperature (°C)
0 to 120
Ambient Temperature (°C)
0 to 120
Max. Tightening Torque (Nm)
6,0
Tube Seal, Hose Seal Material
FPM
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Hose Clamping Segment Material
High-alloyed stainless steels
Nominal Tightening Torque (Nm)
5,00
Biocompatibility According To Standard
ISO 18562
Tolerance To Nominal Tightening Torque
± 10 %
Maximum Impurity Level For Hydrocarbons
550
Oxygen Suitability According To Standard
ISO 15001
Operating Pressure Complete Temperature Range (MPa)
-0,09 to 2
EAN
4052568659165
Manufacturer
Festo
