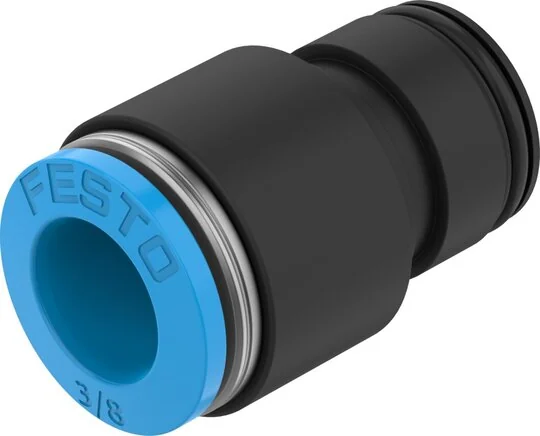

Festo - NPQX-D-PC12-T532-P10-8184512 - Cartridge

SKU: festo-npqx-d-pc12-t532-p10-8184512

Browse all parts
Festo - NPQX-D-PC12-T532-P10-8184512 - Cartridge

€4.96€4.24 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€4.96

Brand
Festo
Size
Standard
Design
straight shape
Packing Size
10
Material Note
RoHs compliant
Sleeve Colour
blue
Fastening Type
With Holding clamp
O-ring Material
HNBR
Housing Material
PA reinforced
Operating Medium
Inerte Gase
Seal Type On Stud
O-ring
Nominal Width (mm)
2,6
Construction Set Up
Push-pull principle
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
Cartridge 12 mm
Pneumatic Connection 2
"für Schlauch Außen-Ø 5/32"""
Hose Plug-in Depth (mm)
15
Operating Pressure (MPa)
-0,095 to 1
Ambient Temperature (°C)
-10 to 60
Tube Seal, Hose Seal Material
NBR
Corrosion Resistance Class KBK
3 - severe corrosion stress
Hose Clamping Segment Material
High-alloyed stainless steels
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Operating Pressure Complete Temperature Range (MPa)
-0,095 to 1
EAN
4052568636395
Manufacturer
Festo
