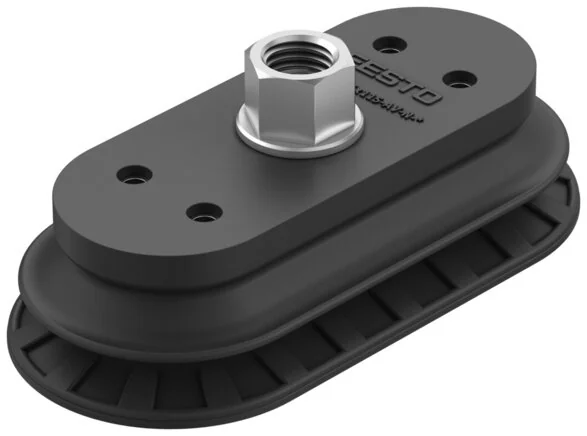

Festo - OGVM-55X115-AV-N-G14F-8073867 - Vacuum Sucker

SKU: festo-ogvm-55x115-av-n-g14f-8073867

Browse all parts
Festo - OGVM-55X115-AV-N-G14F-8073867 - Vacuum Sucker

€79.74€68.15 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€79.74

Brand
Festo
Colour
black
Material Note
RoHs compliant
Stud Material
Aluminium wrought alloy
Fastening Type
Via vacuum connection
Shore Hardness
60 ± 5
Operating Medium
Atmospheric air based on ISO 8573-1:2010 [7:-:-]
Suction Cup Size
55x115 mm
Suction Cup Shape
oval Faltenbalg 1,5-fach
Vacuum Connection
female thread G1/4
Nominal Width (mm)
8
Operating Pressure
-0,095 to 0
Suction Cup Volume
52
Connection Position
top
Installation Position
arbitrary
Suction Cups Material
NBR
LABS (PWIS) Conformity
VDMA24364-A1-L
Ambient Temperature (°C)
-20 to 80
Min. Workpiece Radius (mm)
50
Nominal Operating Pressure
-0,06
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Height Balance Suction Cup (mm)
13,0
Holding Force For Nominal Operating Pressure (N)
200
Shear Force Vertical For Nominal Operating Pressure (N)
234
EAN
4052568301040
Manufacturer
Festo
