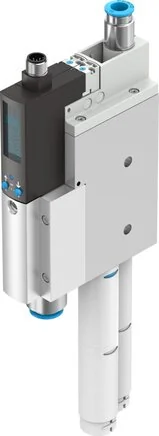

Permission
c UL us - Listed (OL)
Material Note
RoHs compliant
Fastening Type
With Accessories
Filter Material
Sinterstahl
Setting Options
Via display and buttons
Switch Function
Threshold comparator
Housing Material
PA reinforced
IO-Link, Profile
Smart sensor profile
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Relative Humidity
5 - 85 %
Tamper-proof Fuse
Electronic locking
IO-Link, Device ID
0x00003E
Measured Parameter
Relative pressure
Overload Resistant
Available
Construction Set Up
Modular
Display Range (bar)
-0,999 to 0
Integrated Function
vacuum switch
Jet Nozzle Material
Aluminium wrought alloy
Button Field Material
TPE-U
Electrical Connection
Plug
Hand Assist Actuation
zusätzlich über Bedientasten
Installation Position
arbitrary
Measurement Principle
Piezoresistive
Plug Housing Material
brass, nickel-plated
Ejector Characteristic
Standard
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Tightening Torque
2,5 Nm mit Durchgangsbohrung
Plug Contacts Material
brass, Gold plated
Pneumatic Connection 1
QS-10
Pneumatic Connection 3
silencer
Capture Nozzle Material
POM
Filter Housing Material
PA reinforced
Max. Output Current (mA)
100
Medium Temperature (°C)
0 to 50
Operating Pressure (bar)
2 to 8
Short Circuit Resistance
yes
Ambient Temperature (°C)
0 to 50
Coil Characteristic Value
24 V DC: Low current phase 0.3 W, high current phase 2,55 W
Control Input To Standard
IEC 61131-2
IO-Link, Function Classes
Teach channel
IO-Link, Protocol Version
Device V 1.1
Regulation Screw Material
Steel
Screw Connection Material
brass, nickel-plated
Switching Element Function
NO contact
Switching Position Display
LCD
Switching Status Indicator
Visual
IO-Link, Communication Mode
COM2 (38.4 kBaud)
IO-Link, Data Memory Needed
500
Reverse Polarity Protection
for all electrical connections
Surge Voltage Strength (kV)
0,8
Corrosion Resistance Class KBK
2 - moderate corrosion stress
IO-Link, Process Data Width IN
2 Bytes
Operating Voltage Range DC (V)
20.4 to 27.6
Construction Type Silencer Type
open
IO-Link, Process Data Width OUT
1 Bytes
Nominal Width Laval Nozzle (mm)
2
Settings Range Hysteresis (bar)
-0,9 to 0
IO-Link, Minimum Cycle Time (ms)
3.5
Nominal Operating Pressure (bar)
6
Pressure Measurement Range (bar)
-1 to 0
Reproducibility Shifting Time FS
0,6
IO-Link, Process Data Contents IN
2 bit BDC (Drucküberwachung)
IO-Link, Process Data Contents OUT
1 bit (Vakuum EIN/AUS)
Note On Operating And Control Medium
Oiled operation not possible
Settings Range Threshold Value (bar)
-0,999 to 0
Operating Pressure For Max. Vacuum (bar)
4
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für EMV
CE Certificate (See Declaration Of Conformity)
to EU EMC directive
Venting Time For Nominal Operating Pressure (s)
0,2
Max. Suction Volume Flow Rate Against Atmosphere
98
Noise Level For Nominal Operating Pressure (dB(A))
62
