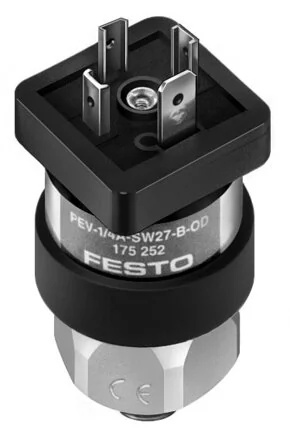

Festo - PEV-1/4-A-SW27-B-OD-175252 - Pressure Switch

SKU: festo-pev-1-4-a-sw27-b-od-175252

Browse all parts
Festo - PEV-1/4-A-SW27-B-OD-175252 - Pressure Switch

€154.45€132.01 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€154.45

Brand
Festo
Fastening Type
Screwable
Housing Material
Zinc plated steel
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Diaphragm Material
NBR
Measured Parameter
Relative pressure
Measurement Process
Pneumatic electric pressure converter
Protection Category
IP65
Pneumatic Connection
G1/4
Electrical Connection
Plug
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Max. Output Current (mA)
4000
Medium Temperature (°C)
-20 to 80
Operating Pressure (MPa)
1 to 10
Ambient Temperature (°C)
-30 to 100
Switching Element Function
changeover contact
Max. Switching Frequency (Hz)
3
Max. Switch Off Voltage AC (V)
250
Max. Switch Off Voltage DC (V)
250
Settings Range Threshold Value (bar)
1 to 10
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für elektrische Betriebsmittel
CE Certificate (See Declaration Of Conformity)
to EU low voltage directive
EAN
4052568142933
Manufacturer
Festo
