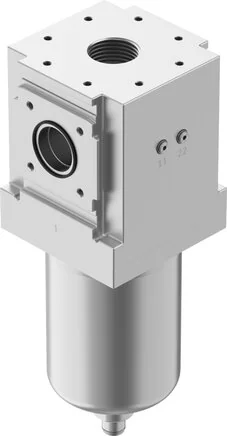

Festo - PFML-186-HP3-H-AST-1624062 - Fine Filter

SKU: festo-pfml-186-hp3-h-ast-1624062

Browse all parts
Festo - PFML-186-HP3-H-AST-1624062 - Fine Filter

€8,449.83€7,222.08 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€8,449.83

Brand
Festo
Size
186
Volume
6,7
Model Series
L
Material Note
RoHs compliant
Fastening Type
pipe installation
Seals Material
NBR
Clamps Material
High-alloyed stainless steels
Filter Material
Borosilicate fibre
Filter Porosity
0,01
Condensate Drain
Manually
Housing Material
Aluminium wrought alloy
Operating Medium
Inerte Gase
Food Compatibility
See expanded material information
Construction Set Up
Fibre filter
Installation Position
vertical ± 5°
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Condensate Amount
400
Filter Effective Degree
99,99998
Medium Temperature (°C)
5 to 60
Operating Pressure (MPa)
0 to 5
Ambient Temperature (°C)
5 to 60
Bearing Temperature (°C)
-10 to 60
Air Purity Class At The Output
Compressed air to ISO 8573-1:2010 [1:4:2]
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Min. Normal Flow For Air Unit Class
6326
Note On Operating And Control Medium
Oiled operation not possible
Max. Normal Flow For Air Purity Class
18980
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für Druckgeräte
CE Certificate (See Declaration Of Conformity)
to EU pressure vessel directive
EAN
4052568263621
Manufacturer
Festo
