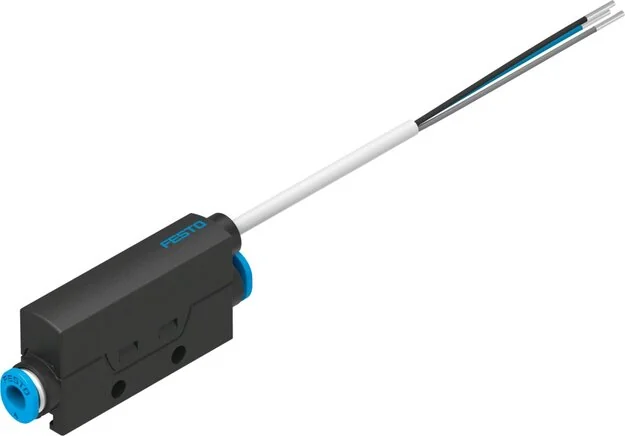

Festo - SFTE-10U-Q4-B-2.5K-8058515 - Flow Transmitter

SKU: festo-sfte-10u-q4-b-2-5k-8058515

Browse all parts
Festo - SFTE-10U-Q4-B-2.5K-8058515 - Flow Transmitter

€191.88€164.00 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€191.88

Brand
Festo
KC-mark
KC-EMV
Permission
RCM mark
Material Note
RoHs compliant
Fastening Type
With Accessories
Flow Direction
Uni-directional
Rise Time (ms)
3
Analogue Output
1 - 5 V
Cable Length (m)
2,5
Housing Material
PA reinforced
Operating Medium
Nitrogen
Measured Parameter
Volumenstrom
Overload Resistant
Available
Measurement Process
Heat Loss
Protection Category
IP40
Pneumatic Connection
für Steckanschluss-Außen-Ø 4 mm
Cable Sleeve Material
TPE-U(PUR)
Installation Position
arbitrary
Measurement Principle
Thermic
Empty Run Current (mA)
17
LABS (PWIS) Conformity
VDMA24364-B2-L
Repeatability In ± %FS
1
Medium Temperature (°C)
0 to 50
Operating Pressure (bar)
-0.9 to 10
Short Circuit Resistance
yes
Ambient Temperature (°C)
0 to 50
Nominal Temperature (°C)
23
Reverse Polarity Protection
for all electrical connections
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Operating Voltage Range DC (V)
22 to 26
Min. Load Resistance Voltage Output
20
End Value For Flow Rate Sensing Range
10
Start Value For Flow Rate Sensing Range
0
Electrical Connection 1, Connection Type
cable
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
Open end
Electrical Connection 1, Number Of Pins / Wires
3
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
EAN
4052568435394
Manufacturer
Festo
