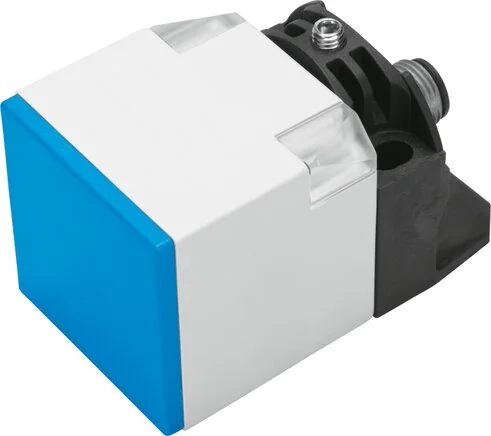

Festo - SIEF-Q40S-NA-S-2L-538342 - Proximity Switch

SKU: festo-sief-q40s-na-s-2l-538342

Browse all parts
Festo - SIEF-Q40S-NA-S-2L-538342 - Proximity Switch

€134.66€115.09 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€134.66

Brand
Festo
Size
40x40x65 mm
Design
quadratic
Permission
c UL us - Listed (OL)
Control Output
NPN
Fastening Type
With throughway bores
Hysteresis (mm)
1.05 to 5.25
Residual Ripple
10%
Housing Material
PBT reinforced
Integration Type
Part flush
Voltage Drop (V)
1,8
Reduction Factors
Stahl St 37 = 1,0
Repeatability (mm)
0,70
Protection Category
IP67
Complies To Standard
EN 60947-5-2
Electrical Connection
Plug
Measurement Principle
Inductive
Empty Run Current (mA)
15
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Output Current (mA)
200
Short Circuit Resistance
Cycling
Ambient Temperature (°C)
-30 to 85
Switching Element Function
Anti-valent
Switching Status Indicator
LED yellow
Operation-readiness Display
LED green
Reverse Polarity Protection
for all electrical connections
Secured Safety Distance (mm)
28,35
Corrosion Resistance Class KBK
0 - No corrosion stressing
Operating Voltage Range DC (V)
10 to 65
Max. Switching Frequency DC (Hz)
250
Noise Immunity To Magnetic Fields
Magnetic direct and alternating field
Measurement Switching Distance (mm)
35
Electrical Connection 1, Fastening Type
nicht drehbar
Electrical Connection 1, Connection Type
Plug
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für elektrische Betriebsmittel
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M12x1 A-codiert nach EN 61076-2-101
Electrical Connection 1, Number Of Pins / Wires
4
Electrical Connection 1, Compatible Type Of Mounting
Kompatibel mit Schraubverriegelung drehbar
EAN
4052568175924
Manufacturer
Festo
