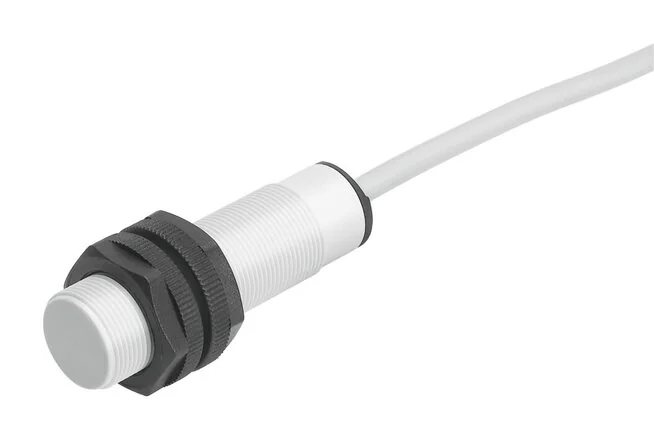

Festo - SIEN-M18NB-PS-K-L-PA-538331 - Proximity Switch

SKU: festo-sien-m18nb-ps-k-l-pa-538331

Browse all parts
Festo - SIEN-M18NB-PS-K-L-PA-538331 - Proximity Switch

€87.55€74.83 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€87.55

Brand
Festo
Size
M18
Design
round
Permission
c UL us - Listed (OL)
Torque (Nm)
2
Control Output
PNP
Fastening Type
With locking nut
Hysteresis (mm)
0.24 to 1.2
Residual Ripple
10%
Cable Length (m)
2,5
Housing Material
PA reinforced
Integration Type
not flush
Voltage Drop (V)
1,8
Reduction Factors
Stahl St 37 = 1,0
Repeatability (mm)
0,16
Protection Category
IP67
Complies To Standard
EN 60947-5-2
Cable Sleeve Material
PVC
Electrical Connection
cable
Measurement Principle
Inductive
Empty Run Current (mA)
15
LABS (PWIS) Conformity
VDMA24364-Zone III
Max. Output Current (mA)
200
Short Circuit Resistance
Cycling
Ambient Temperature (°C)
-25 to 70
Insulation Sleeve Material
PVC
Switching Element Function
NO contact
Switching Status Indicator
LED yellow
Reverse Polarity Protection
for all electrical connections
Secured Safety Distance (mm)
6,48
Corrosion Resistance Class KBK
4 - particularly severe corrosion stress
Operating Voltage Range DC (V)
10 to 30
Max. Switching Frequency DC (Hz)
500
Measurement Switching Distance (mm)
8
Electrical Connection 1, Connection Type
cable
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für elektrische Betriebsmittel
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
Open end
Electrical Connection 1, Number Of Pins / Wires
3
Ambient Temperature For Moving Cable Placements (°C)
0 to 70
EAN
4052568089283
Manufacturer
Festo
