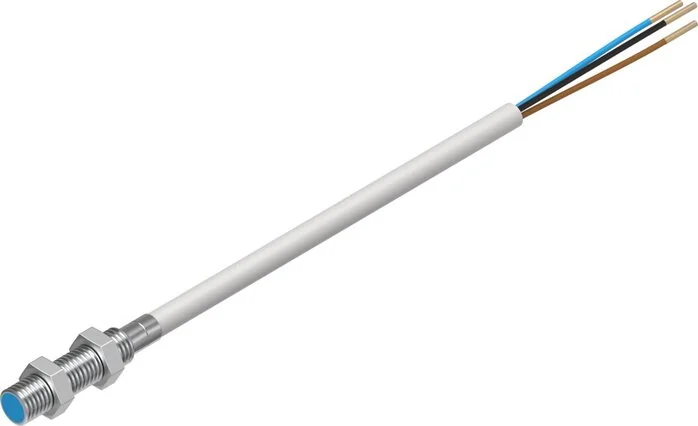

Festo - SIEN-M5B-NS-K-L-150368 - Proximity Switch

SKU: festo-sien-m5b-ns-k-l-150368

Browse all parts
Festo - SIEN-M5B-NS-K-L-150368 - Proximity Switch

€117.64€100.55 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€117.64

Brand
Festo
Size
M5x0,5
Permission
c UL us - Listed (OL)
Torque (Nm)
1,5
Material Note
RoHs compliant
Control Output
NPN
Fastening Type
With locking nut
Cable Length (m)
2,5
Housing Material
High-alloyed stainless steels
Integration Type
flush
Protection Category
IP67
Complies To Standard
EN 60947-5-2
Cable Sleeve Material
TPE-U(PUR)
LABS (PWIS) Conformity
VDMA24364-B2-L
Degree Of Contamination
3
Max. Output Current (mA)
200
Short Circuit Resistance
Cycling
Ambient Temperature (°C)
-25 to 70
Switching Element Function
NO contact
Switching Status Indicator
LED yellow
Reverse Polarity Protection
for all electrical connections
Surge Voltage Strength (kV)
1
Max. Switching Frequency (Hz)
5000
Corrosion Resistance Class KBK
4 - particularly severe corrosion stress
Operating Voltage Range DC (V)
10 to 30
Measurement Switching Distance (mm)
0,8
Electrical Connection 1, Connection Type
cable
Repeatability At Constant Conditions (mm)
0.01
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften (UK-R)
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
Open end
Electrical Connection 1, Number Of Pins / Wires
3
Ambient Temperature For Moving Cable Placements (°C)
-5 to 70
EAN
4052568068783
Manufacturer
Festo
