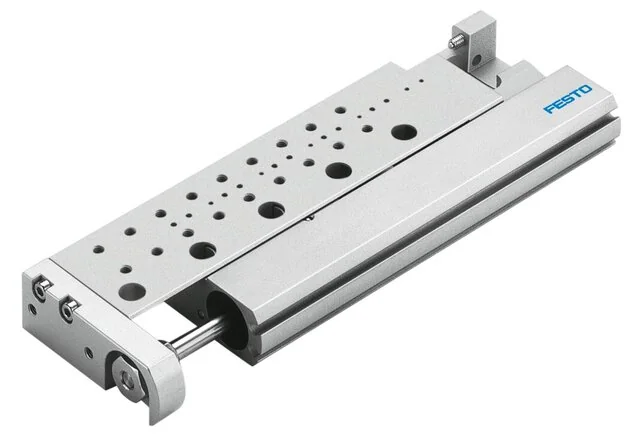

Festo - SLF-16-40-P-A-170514 - Mini Slide

SKU: festo-slf-16-40-p-a-170514

Browse all parts
Festo - SLF-16-40-P-A-170514 - Mini Slide

€978.85€836.62 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€978.85

Brand
Festo
Guide
Ball cage guide
Dampening
elastische Dämpfungsringe/-platten beidseitig
Stroke (mm)
40
Material Note
RoHs compliant
Cover Material
Aluminium wrought alloy
Fastening Type
With throughway bores
Piston Ø (mm)
16
Seals Material
HNBR
Moving Mass (g)
133
Housing Material
Aluminium wrought alloy
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Max. Force Fy (N)
350
Max. Force Fz (N)
350
Position Detection
For proximity switch
Construction Set Up
Schlitten
Max. Torque Mx (Nm)
2,2
Max. Torque My (Nm)
2,2
Max. Torque Mz (Nm)
1,3
Piston Rod Material
High-alloyed stainless steels
Pneumatic Connection
M5
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B2-L
Principle Of Operation
double acting
Alternative Connections
See product drawing
Operating Pressure (MPa)
0,1 to 1
Ambient Temperature (°C)
-20 to 60
Operating Mode, Drive Unit
Joch
Base Weight At 0 mm Stroke (g)
353
Corrosion Resistance Class KBK
0 - No corrosion stressing
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
Impact Energy At The End Positions (Nm)
0,1
Alignable End Position range/Length (mm)
5
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Return Stroke (N)
104
Theoretical Force At 0.6 MPa (6 bar, 87 psi), Advance Stroke (N)
121
EAN
4052568139209
Manufacturer
Festo
