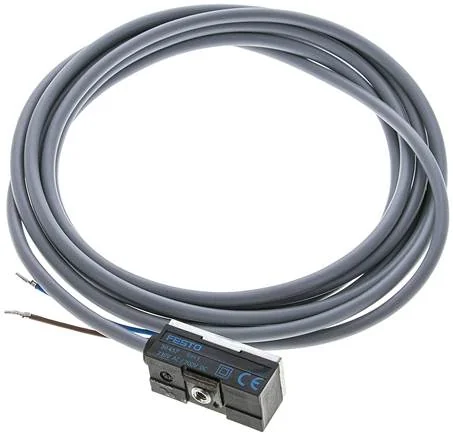

Festo - SMEO-1-B-30457 - Proximity Switch

SKU: festo-smeo-1-b-30457

Browse all parts
Festo - SMEO-1-B-30457 - Proximity Switch

€149.92€128.14 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€149.92

Brand
Festo
Design
Block structure
Torque (Nm)
2,9
Material Note
RoHs compliant
Control Output
Bipolar contact
Fastening Type
With Accessories
Housing Colour
black
Cable Length (m)
2,5
Housing Material
Zinc pressure cast
Voltage Drop (V)
0
Measured Parameter
Position
Overload Resistant
Not available
Repeatability (mm)
0,2
Cable Shield Colour
Grey
Protection Category
IP67
Switch On Time (ms)
0,5
Complies To Standard
EN 60947-5-2
Switch Off Time (ms)
0,03
Cable Sleeve Material
PVC
Installation Position
arbitrary
Measurement Principle
Reed magnetic
Residual Current (mA)
0
Insulation Voltage (V)
250
LABS (PWIS) Conformity
VDMA24364-B2-L
Degree Of Contamination
3
Max. Output Current (A)
1000
Short Circuit Resistance
no
Ambient Temperature (°C)
-20 to 70
Max. Switching Capacity AC
40
Switching Element Function
NO contact
Connection Outlet Direction
along
Max. Output Current AC (mA)
1000
Max. Output Current DC (mA)
1000
Reverse Polarity Protection
no
Surge Voltage Strength (kV)
4
Max. Switching Frequency (Hz)
500
Max. Switching Capacity DC (W)
40
Operating Voltage Range AC (V)
0 to 250
Operating Voltage Range DC (V)
0 to 200
Electrical Connection 1, Connection Type
cable
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für elektrische Betriebsmittel
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
Open end
Electrical Connection 1, Number Of Pins / Wires
2
Ambient Temperature For Moving Cable Placements (°C)
-5 to 70
EAN
4052568003685
Manufacturer
Festo
