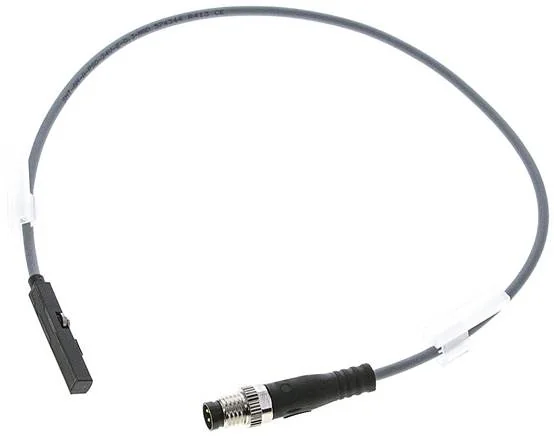

Festo - SMT-8M-A-PS-24V-E-2,5-OE-574335 - Proximity Switch

SKU: festo-smt-8m-a-ps-24v-e-2-5-oe-574335

Browse all parts
Festo - SMT-8M-A-PS-24V-E-2,5-OE-574335 - Proximity Switch

€46.93€40.11 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€46.93

Brand
Festo
Design
For T-slot
Wire Ends
Wire end sleeve
Permission
c UL us - Listed (OL)
Material Note
halogenfrei
Control Output
PNP
Fastening Type
Insertable from above into the slot
Housing Colour
black
Line Properties
energiekettentauglich/ robotertauglich
Cable Length (m)
2,5
Housing Material
High-alloyed stainless steels
Special Features
Oil resistant
Voltage Drop (V)
1,5
Based On Standard
EN 60947-5-2
Certification Body
UL E232949
Measured Parameter
Position
Overload Resistant
yes
Repeatability (mm)
0,2
Cable Shield Colour
Grey
Protection Category
IP69K
Switch On Time (ms)
1,3
Switch Off Time (ms)
7,3
Test Conditions Line
Energiekette: > 5 Millionen Zyklen, Biegeradius 28 mm
Cable Sleeve Material
TPE-U(PUR)
Installation Position
arbitrary
Measurement Principle
Magnetoresistive
LABS (PWIS) Conformity
VDMA24364-B2-L
Max. Output Current (mA)
100
Short Circuit Resistance
yes
Ambient Temperature (°C)
-40 to 85
Functional Reserve Display
LED orange
Insulation Sleeve Material
PP
Switching Element Function
NO contact
Switching Status Indicator
LED yellow
Connection Outlet Direction
along
Max. Tightening Torque (Nm)
0,6
Reverse Polarity Protection
for all electrical connections
Max. Switching Frequency (Hz)
130
Max. Switching Capacity DC (W)
2,8
Operating Voltage Range DC (V)
5 to 30
Rated Operating Voltage DC (V)
24
Electrical Connection 1, Connection Type
cable
Max. Output Current In Fastening Sets (mA)
100
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
Open end
Electrical Connection 1, Number Of Pins / Wires
3
Max. Switching Capacity DC In Fastening Sets (W)
2,8
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Ambient Temperature For Moving Cable Placements (°C)
-20 to 85
Cleanroom Suitability, Measured According To ISO 14644-14
Statisch installiertes Element, keine sinnvolle Bewertung möglich nach ISO 14644-1
EAN
4052568103101
Manufacturer
Festo
