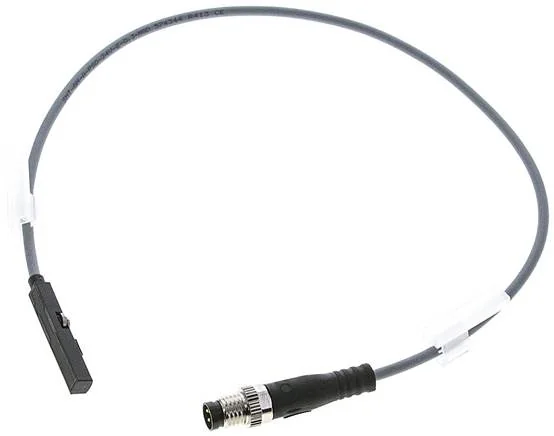

Festo - SMT-8M-A-PSO-24V-E-0,3-M8D-574344 - Proximity Switch

SKU: festo-smt-8m-a-pso-24v-e-0-3-m8d-574344

Browse all parts
Festo - SMT-8M-A-PSO-24V-E-0,3-M8D-574344 - Proximity Switch

€57.00€48.72 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€57.00

Brand
Festo
Design
For T-slot
KC-mark
KC-EMV
Permission
RCM mark, c UL us - Listed (OL)
Control Output
PNP
Fastening Type
Insertable from above into the slot, Permanently screwed
Housing Colour
black
Cable Length (m)
0,3
Housing Material
High-alloyed stainless steels, PA reinforced, brass nickel-plated
Voltage Drop (V)
< 2,5 V
Based On Standard
EN 60947-5-2
Measured Parameter
Position
Overload Resistant
Available
Repeatability (mm)
0,2
Protection Category
IP65, IP68, IP69K
Switch On Time (ms)
<= 1 ms
Material Information
halogen free, Copper and PTFE-free, RoHs compliant
Magnetoresistive
Switch Off Time (ms)
<= 1 ms
Cable Sleeve Material
TPE-U(PUR)
Installation Position
arbitrary
Max. Output Current (mA)
100
Short Circuit Resistance
yes
Ambient Temperature (°C)
-40 to 85
Switching Element Function
Opener/closer switchable
Switching Status Indicator
LED yellow (for closer) / LED white (for opened)
Connection Outlet Direction
along
Max. Tightening Torque (Nm)
0,6
Reverse Polarity Protection
for all electrical connections
Max. Switching Frequency (Hz)
180
Max. Switching Capacity DC (W)
2,7
Operating Voltage Range DC (V)
7 to 30
Rated Operating Voltage DC (V)
24
Electrical Connection 1, Fastening Type
Screw lock
Electrical Connection 1, Connection Type
Cable with plug
Max. Output Current In Fastening Sets (mA)
100
Electrical Connection 1, Connection Pattern
Grey
UKCA Marking (See Declaration Of Conformity)
Oil resistant
CE Certificate (See Declaration Of Conformity)
acc. to EU-EMV Directive, acc. to EU-RoHS Directive
Electrical Connection 1, Connection Technology
M8x1 A coded to EN 61076-2-104
Electrical Connection 1, Number Of Pins / Wires
3
Max. Switching Capacity DC In Fastening Sets (W)
2,7
Electrical Connection 1, Compatible Type Of Mounting
Cable track+robot
Ambient Temperature For Moving Cable Placements (°C)
-20 to 85
EAN
4052568103194
Manufacturer
Festo
