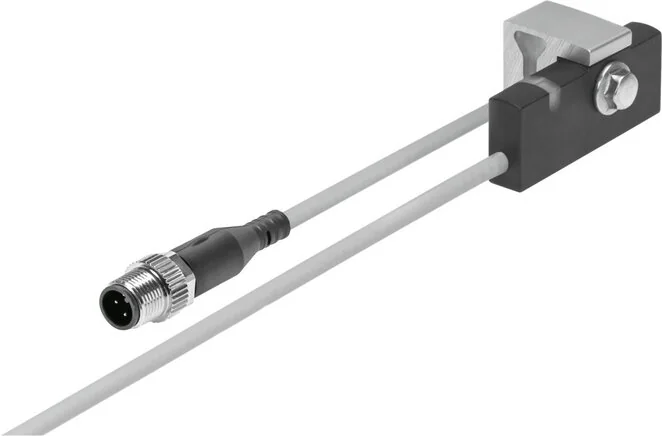

Festo - SMT-C1-PS-24V-K-0,3-M12-571341 - Proximity Switch

SKU: festo-smt-c1-ps-24v-k-0-3-m12-571341

Browse all parts
Festo - SMT-C1-PS-24V-K-0,3-M12-571341 - Proximity Switch

€101.22€86.51 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€101.22

Brand
Festo
Design
Block structure
Permission
RCM mark
Torque (Nm)
1,2
Material Note
halogenfrei
Control Output
PNP
Fastening Type
clamped
Housing Colour
black
Hysteresis (mm)
2
Residual Ripple
10%
Cable Length (m)
0,3
Housing Material
High-alloyed stainless steels
Voltage Drop (V)
1,8
Based On Standard
EN 60947-5-2
Food Compatibility
See expanded material information
Measured Parameter
Position
Overload Resistant
yes
Cable Shield Colour
Grey
Protection Category
acc. to IEC 60529
Screw Lock Material
brass, nickel-plated
Switch On Time (ms)
0,5
Switch Off Time (ms)
0,5
Cable Sleeve Material
TPE-O
Installation Position
arbitrary
Measurement Principle
Inductive magnet
Residual Current (mA)
0,1
LABS (PWIS) Conformity
VDMA24364-B2-L
Plug Contacts Material
brass, Gold plated
Max. Output Current (mA)
200
Short Circuit Resistance
yes
Ambient Temperature (°C)
-20 to 70
Minimum Load Current (mA)
0
Switching Element Function
NO contact
Switching Status Indicator
LED yellow
Connection Outlet Direction
along
Reverse Polarity Protection
for all electrical connections
Inductive Protection Circuit
adjusted to MZ, MY, ME coils
Max. Switching Capacity DC (W)
6
Operating Voltage Range DC (V)
10 to 30
Rated Operating Voltage DC (V)
24
Electrical Connection 1, Fastening Type
drehbar
Electrical Connection 1, Connection Type
Cable with plug
Electrical Connection 1, Connection Pattern
995573
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M12x1 A-codiert nach EN 61076-2-101
Electrical Connection 1, Number Of Pins / Wires
3
Electrical Connection 1, Compatible Type Of Mounting
Kompatibel mit Schraubverriegelung drehbar/nicht drehbar
Ambient Temperature For Moving Cable Placements (°C)
-20 to 70
EAN
4052568101213
Manufacturer
Festo
