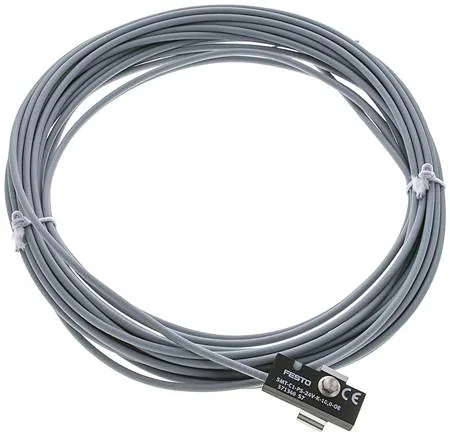

Festo - SMT-C1-PS-24V-K-10,0-OE-571340 - Proximity Switch

SKU: festo-smt-c1-ps-24v-k-10-0-oe-571340

Browse all parts
Festo - SMT-C1-PS-24V-K-10,0-OE-571340 - Proximity Switch

€113.21€96.76 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€113.21

Brand
Festo
Design
Block structure
Wire Ends
Wire end sleeve
Permission
RCM mark
Torque (Nm)
1,2
Material Note
halogenfrei
Control Output
PNP
Fastening Type
clamped
Housing Colour
black
Hysteresis (mm)
2
Residual Ripple
10%
Cable Length (m)
10
Housing Material
High-alloyed stainless steels
Voltage Drop (V)
1,8
Based On Standard
EN 60947-5-2
Food Compatibility
See expanded material information
Measured Parameter
Position
Overload Resistant
yes
Cable Shield Colour
Grey
Protection Category
acc. to IEC 60529
Switch On Time (ms)
0,5
Switch Off Time (ms)
0,5
Cable Sleeve Material
TPE-O
Installation Position
arbitrary
Measurement Principle
Inductive magnet
Residual Current (mA)
0,1
LABS (PWIS) Conformity
VDMA24364-B2-L
Max. Output Current (mA)
200
Short Circuit Resistance
yes
Ambient Temperature (°C)
-20 to 70
Minimum Load Current (mA)
0
Switching Element Function
NO contact
Switching Status Indicator
LED yellow
Connection Outlet Direction
along
Reverse Polarity Protection
for all electrical connections
Inductive Protection Circuit
adjusted to MZ, MY, ME coils
Max. Switching Capacity DC (W)
6
Operating Voltage Range DC (V)
10 to 30
Rated Operating Voltage DC (V)
24
Electrical Connection 1, Connection Type
cable
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
Open end
Electrical Connection 1, Number Of Pins / Wires
3
Ambient Temperature For Moving Cable Placements (°C)
-20 to 70
EAN
4052568101206
Manufacturer
Festo
