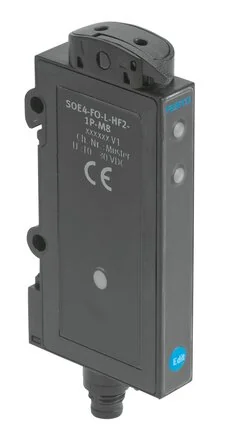

Festo - SOE4-FO-L-HF2-1N-M8-552798 - Light Guide Device

SKU: festo-soe4-fo-l-hf2-1n-m8-552798

Browse all parts
Festo - SOE4-FO-L-HF2-1N-M8-552798 - Light Guide Device

€167.67€143.31 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€167.67

Brand
Festo
Design
Block structure
Display
LED
Light Type
red
Permission
c UL us - Listed (OL)
Control Output
NPN
Fastening Type
With Slot rail
Timer Function
1 - 2000 ms
Residual Ripple
10%
Setting Options
Teach-In über elektrischen Anschluss
Housing Material
ABS
Voltage Drop (V)
2,4
Counter Influence
bis zu vier direkt nebeneinander montierten Geräten
Measured Parameter
Position
Measurement Process
Light guide device
Protection Category
IP64
Complies To Standard
EN 60947-5-2
Electrical Connection
Plug
Installation Position
arbitrary
Measurement Principle
Optoelectronic
Empty Run Current (mA)
25
Insulation Voltage (V)
50
LABS (PWIS) Conformity
VDMA24364-B2-L
Max. Output Current (mA)
100
Max. Switching Frequency
1500
Short Circuit Resistance
Cycling
Ambient Temperature (°C)
-20 to 60
Functional Reserve Display
LED green
Switching Element Function
Switchable
Switching Status Indicator
LED yellow
Reverse Polarity Protection
for all electrical operating voltage connections
Corrosion Resistance Class KBK
4 - particularly severe corrosion stress
Operating Voltage Range DC (V)
10 to 30
Electrical Connection 1, Fastening Type
nicht drehbar
Electrical Connection 1, Connection Type
Plug
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M8x1, A coded to EN 61076-2-104
Electrical Connection 1, Number Of Pins / Wires
4
Electrical Connection 1, Compatible Type Of Mounting
Kompatibel mit Schraubverriegelung drehbar
EAN
4052568194536
Manufacturer
Festo
