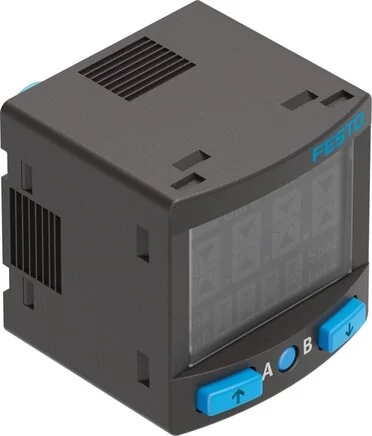

Festo - SPAN-B11R-Q4-PN-PN-L1-8134894 - Pressure Sensor

SKU: festo-span-b11r-q4-pn-pn-l1-8134894

Browse all parts
Festo - SPAN-B11R-Q4-PN-PN-L1-8134894 - Pressure Sensor

€146.69€125.38 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€146.69

Brand
Festo
Permission
c UL us - Listed (OL)
Display Type
Illuminating LCD
Material Note
RoHs compliant
Control Output
2 x PNP or 2 x NPN switchable
Fastening Type
With Wall / flat holder
Setting Options
Via display and buttons
Switch Function
Auto Differenz Überwachung
Housing Material
PA reinforced
Operating Medium
Inerte Gase
Tamper-proof Fuse
PIN code
Certification Body
UL E322346
Measured Parameter
Relative pressure
Accuracy In ± % FS
1,5
Measurement Process
Piezoresistive pressure sensor
Presentable Unit(s)
psi
Protection Category
IP40
Pneumatic Connection
für Schlauch-Außen-Ø 4 mm
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Overload Pressure (MPa)
1,5
Repeatability In ± %FS
0,3
Max. Output Current (mA)
100
Medium Temperature (°C)
0 to 50
Short Circuit Resistance
yes
Ambient Temperature (°C)
0 to 50
Settings Range Hysteresis
0 to 90
Switching Element Function
Opener/closer switchable
Reverse Polarity Protection
for all electrical connections
Max. Overload Pressure (bar)
15
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Operating Voltage Range DC (V)
15 to 30
Settings Range Threshold Value
0 to 100
From Medium Contacting Materials
PA reinforced
Temperature Coefficient In ± %FS/K
0,05
Note On Operating And Control Medium
Oiled operation possible
Electrical Connection 1, Connection Type
Plug
Pressure Measurement Range End Value (MPa)
1,0
Electrical Connection 1, Connection Pattern
995428
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
Wiring diagram L1J
Electrical Connection 1, Number Of Pins / Wires
4
Pressure Measurement Range Starting Value (MPa)
-0,1
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
EAN
4052568553142
Manufacturer
Festo
