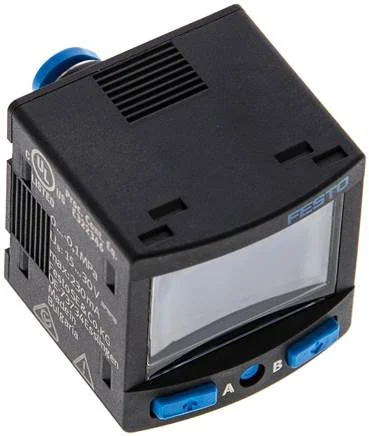

Festo - SPAN-V1R-Q4-PN-PN-L1-8035554 - Pressure Sensor

SKU: festo-span-v1r-q4-pn-pn-l1-8035554

Browse all parts
Festo - SPAN-V1R-Q4-PN-PN-L1-8035554 - Pressure Sensor

€146.69€125.38 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€146.69

Brand
Festo
Permission
c UL us - Listed (OL)
Display Type
Illuminating LCD
Material Note
RoHs compliant
Control Output
2 x PNP or 2 x NPN switchable
Fastening Type
With Wall / flat holder
Setting Options
Via display and buttons
Switch Function
Auto Differenz Überwachung
Housing Material
PA reinforced
Operating Medium
Inerte Gase
Tamper-proof Fuse
PIN code
Certification Body
UL E322346
Measured Parameter
Relative pressure
Accuracy In ± % FS
1,5
Measurement Process
Piezoresistive pressure sensor
Presentable Unit(s)
psi
Protection Category
IP40
Pneumatic Connection
für Schlauch-Außen-Ø 4 mm
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Overload Pressure (MPa)
0,5
Repeatability In ± %FS
0,3
Max. Output Current (mA)
100
Medium Temperature (°C)
0 to 50
Short Circuit Resistance
yes
Ambient Temperature (°C)
0 to 50
Settings Range Hysteresis
0 to 90
Switching Element Function
Opener/closer switchable
Reverse Polarity Protection
for all electrical connections
Max. Overload Pressure (bar)
5
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Operating Voltage Range DC (V)
15 to 30
Settings Range Threshold Value
0 to 100
From Medium Contacting Materials
PA reinforced
Temperature Coefficient In ± %FS/K
0,05
Note On Operating And Control Medium
Oiled operation possible
Electrical Connection 1, Connection Type
Plug
Pressure Measurement Range End Value (MPa)
-0,1
Electrical Connection 1, Connection Pattern
995428
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
Wiring diagram L1J
Electrical Connection 1, Number Of Pins / Wires
4
Pressure Measurement Range Starting Value (MPa)
0
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
EAN
4052568284947
Manufacturer
Festo
