Festo - SPBA-P2R-G18-2P-M12-0,25X-8000210 - Pressure Switch

SKU: festo-spba-p2r-g18-2p-m12-0-25x-8000210

Browse all parts

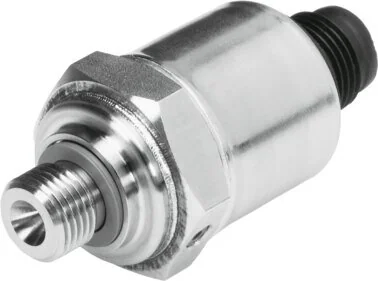

Festo - SPBA-P2R-G18-2P-M12-0,25X-8000210 - Pressure Switch

€293.49€250.85 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€293.49

Brand
Festo
Material Note
RoHs compliant
Control Output
2xPNP
Fastening Type
Screwable
Setting Options
Fixed setting
Switch Function
Threshold value with fixed hysteresis
Housing Material
High-alloyed stainless steels
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Measured Parameter
Relative pressure
Measurement Process
Metal thin film pressure sensor
Protection Category
IP65
Pneumatic Connection
G1/8
Electrical Connection
runde Bauform
Switch On Point (bar)
0,25
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Operating Pressure (MPa)
-0,1 to 1
Short Circuit Resistance
yes
Switch-on Point Max (bar)
0,4
Switch-off Point Min (bar)
0,05
Switching Element Function
Anti-valent
Max. Output Current DC (mA)
500
Reverse Polarity Protection
for all electrical connections
Corrosion Resistance Class KBK
4 - particularly severe corrosion stress
Operating Voltage Range DC (V)
19,2 to 30
Electrical Connection: Material
PBT
Note On Operating And Control Medium
Oiled operation possible
Electrical Connection 1, Fastening Type
nicht drehbar
Electrical Connection 1, Connection Type
Plug
Electrical Connection 1, Connection Pattern
995386
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
to EU machinery directive
Electrical Connection 1, Connection Technology
M12x1 A-codiert nach EN 61076-2-101
Electrical Connection 1, Number Of Pins / Wires
4
Electrical Connection 1, Compatible Type Of Mounting
Kompatibel mit Schraubverriegelung drehbar
EAN
4052568256135
Manufacturer
Festo
