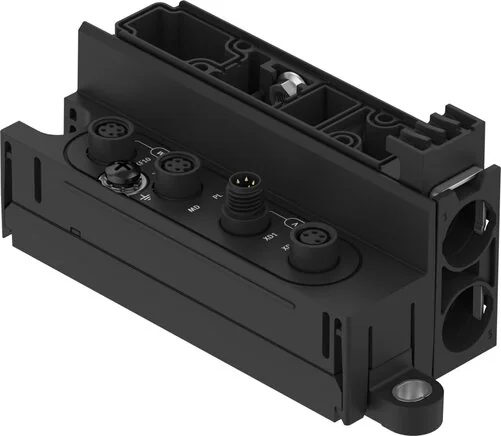

Festo - VABX-A-P-EL-E12-MS1T-SHUH-XL-8206421 - Manifold Plate

SKU: festo-vabx-a-p-el-e12-ms1t-shuh-xl-8206421

Festo - VABX-A-P-EL-E12-MS1T-SHUH-XL-8206421 - Manifold Plate

€73.49€62.81 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€73.49

Brand
Festo
Size
2
KC-mark
KC-EMV
Permission
RCM mark
Cable Output
straight
Nut Material
High-alloyed stainless steels
Material Note
RoHs compliant
Cover Material
PA reinforced
Fastening Type
mit Durchgangsbohrung für Schraube M5
Seals Material
NBR
Clamps Material
High-alloyed stainless steels
Sleeve Material
High-alloyed stainless steels
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Relative Humidity
5 - 95 %
Connection Position
On the side
Electrical Controls
multi-pin
Protection Category
IP40
Dimensions W x L x H
49,9 mm x 117,4 mm x 53,9 mm
Max. Line Length (m)
30
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
für Cartridge 15 mm
Pneumatic Connection 5
für Cartridge 15 mm
Valve Island Structure
Valve sizes mixable
Degree Of Contamination
2
Ambient Temperature (°C)
-20 to 50
Bearing Temperature (°C)
-20 to 70
Connection Plate Material
PA reinforced
Max. Number Of Valve Coils
24
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Fastening Type Connection Plate
With throughway bores
Nominal Operating Voltage DC Of Load (V)
24
Max. Tightening Torque Wall Assembly (Nm)
6
Electrical Connection 1, Connection Pattern
995643
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
Sub-D
Electrical Connection 1, Number Of Pins / Wires
25
Manufacturer
Festo
