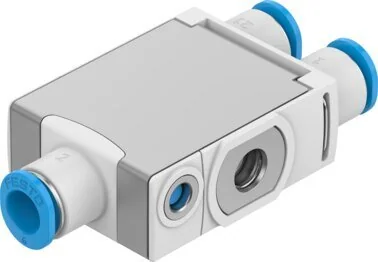

Festo - VFOF-CE-BAH-Q6-Q6-8193267 - Throttle Check Valve

SKU: festo-vfof-ce-bah-q6-q6-8193267

Browse all parts
Festo - VFOF-CE-BAH-Q6-Q6-8193267 - Throttle Check Valve

€119.18€101.86 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€119.18

Brand
Festo
Material Note
RoHs compliant
Actuation Type
Manually
Control Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Cover Material
ES-BE
PBT
Seals Material
NBR
Valve Function
Exhaust air flow control return function
Sleeve Material
Aluminium wrought alloy
POM
Housing Material
PBT
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Installation Position
arbitrary
Shifting Time On (ms)
6
Control Pressure (MPa)
0,2 to 1
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
QS-6
Pneumatic Connection 2
QS-6
Shifting Time Off (ms)
9
Manual Venting Function
tentative
Medium Temperature (°C)
-10 to 60
Operating Pressure (MPa)
1
Ambient Temperature (°C)
-10 to 60
Bearing Temperature (°C)
-20 to 70
Control Air 21 Connection
QS-6
Regulation Screw Material
Brass
Note On Operating And Control Medium
Oiled operation possible
Actuation Type Controlled Feedback Function
pneumatic
Normal Nominal Flow In One-way Flow Control
240
Normal Nominal Flow In Check Valve Direction
400 to 460
Permitted Actuation Moment Regulation Disc (Nm)
1
Operating Pressure Complete Temperature Range (MPa)
0.2 to 10
Normal Nominal Flow Actuated In Check Valve Direction
150 to 230
Normal Nominal Flow Not Actuated In The Check Valve Direction
120 to 220
Standard Flow Rate In Flow Control Direction 0.6->0 MPa (6->0 bar, 87->0 psi)
420
Standard Flow Rate In Non-return Direction 0.6->0 MPa (6->0 bar, 87->0 psi) Actuated
400 to 460
Standard Flow Rate In Non-return Direction 0.6->0 MPa (6->0 bar, 87->0 psi) Non-actuated
400 to 460
EAN
4052568641320
Manufacturer
Festo
