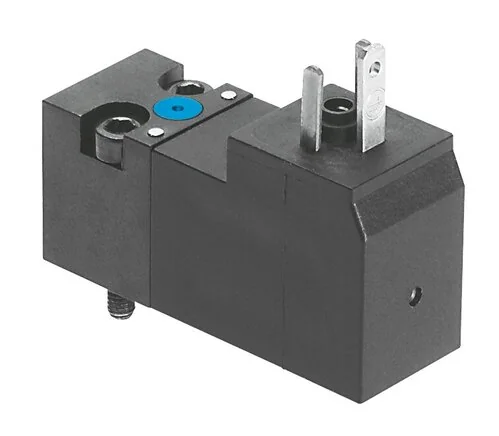

Festo - VSCS-B-M32-MH-WA-2AC1-8-8040567 - Solenoid Valve

SKU: festo-vscs-b-m32-mh-wa-2ac1-8-8040567

Browse all parts
Festo - VSCS-B-M32-MH-WA-2AC1-8-8040567 - Solenoid Valve

€47.96€40.99 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€47.96

Brand
Festo
Overlap
negative Überdeckung
Reset Mode
Mechanical spring
Control Type
Direct
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Flow Direction
Not reversible
Seals Material
NBR
Valve Function
3/2 closed monostable
Build Width (mm)
15
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Shock Resistance
Shock test with degree of severity 1 to FN 942017-5 and EN 60068-2-27
Sealing Principle
Soft
Protection Category
IP65
Complies To Standard
ISO 15218
Oscillation Strength
Transport use test with severity level 1 to FN 942017-4 and EN 60068-2-6
Electrical Connection
acc. to DIN EN 175301-803
Hand Assist Actuation
tentative
Installation Position
arbitrary
Shifting Time On (ms)
8
LABS (PWIS) Conformity
VDMA24364-C1-L
Pneumatic Connection 1
Connection plate
Pneumatic Connection 2
Connection plate
Pneumatic Connection 3
Connection plate
Shifting Time Off (ms)
20
Medium Temperature (°C)
-5 to 50
Operating Pressure (MPa)
0,15 to 0,8
Ambient Temperature (°C)
-5 to 50
Coil Characteristic Value
110 V AC: 50/60 Hz, Anzugsleistung 2,0 VA, Halteleistung 1,5 VA
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Permitted Voltage Oscillations
± 10 %
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für elektrische Betriebsmittel
CE Certificate (See Declaration Of Conformity)
to EU low voltage directive
Standard Nominal Flow Rate (Standardised To DIN 1343)
13,5
EAN
4052568434564
Manufacturer
Festo
