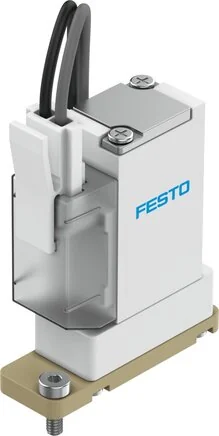

Festo - VYKB-F10-M32-16-PF-5HPS-8122821 - Media Separated Solenoid Valve

SKU: festo-vykb-f10-m32-16-pf-5hps-8122821

Browse all parts
Festo - VYKB-F10-M32-16-PF-5HPS-8122821 - Media Separated Solenoid Valve

€267.91€228.98 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€267.91

Brand
Festo
Size
10
Medium
Gasförmige Medien
Flow Kv
0,034
Reset Mode
Mechanical spring
Control Type
Direct
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Fastening Type
mit Durchgangsbohrung für Schraube M2
Flow Direction
Not reversible
Seals Material
FFPM
Valve Function
3/2 open/closed monostable
Internal Volume
35 µl
Fluid Connection
flange
Housing Material
PEEK
Sealing Principle
Soft
Diaphragm Material
FFPM
Nominal Width (mm)
1,6
Construction Set Up
Wippenventil mit Membrandichtung
Protection Category
IP40
Hand Assist Actuation
None
Installation Position
arbitrary
Medium Pressure (MPa)
-0,075 to 0,1
Shifting Time On (ms)
20
LABS (PWIS) Conformity
VDMA24364-Zone III
Shifting Time Off (ms)
20
Overload Pressure (MPa)
0,3
Medium Temperature (°C)
0 to 50
Ambient Temperature (°C)
0 to 50
Bearing Temperature (°C)
-20 to 70
Coil Characteristic Value
12 V DC: Niederstromphase 1 W, Hochstromphase 3,7 W
Max. Switching Frequency (Hz)
2
Corrosion Resistance Class KBK
0 - No corrosion stressing
Operating Voltage Range DC (V)
12
Permitted Voltage Oscillations
-0,5
From Medium Contacting Materials
PEEK
Medium Temperature Liquid Media (°C)
0 to 50
Electrical Connection 1, Connection Type
Cable with plug
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
Anschlussbild HP
EAN
4052568556860
Manufacturer
Festo
