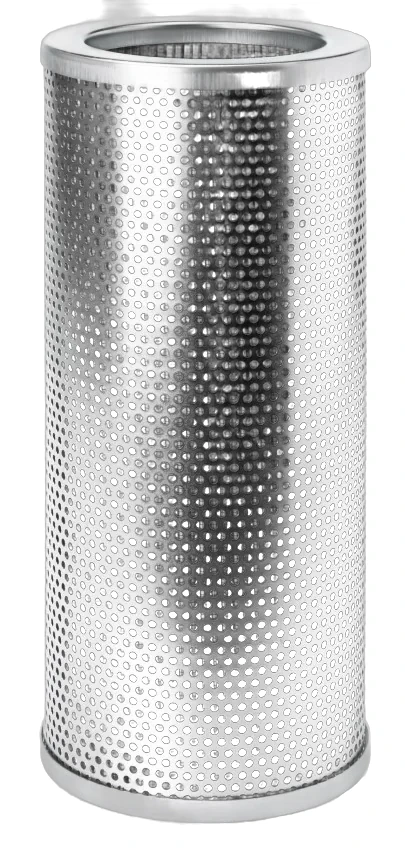

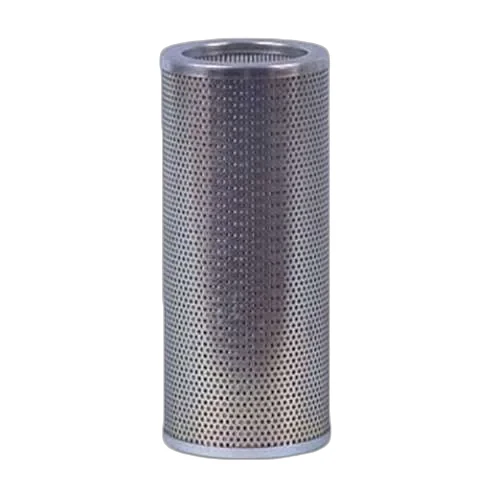

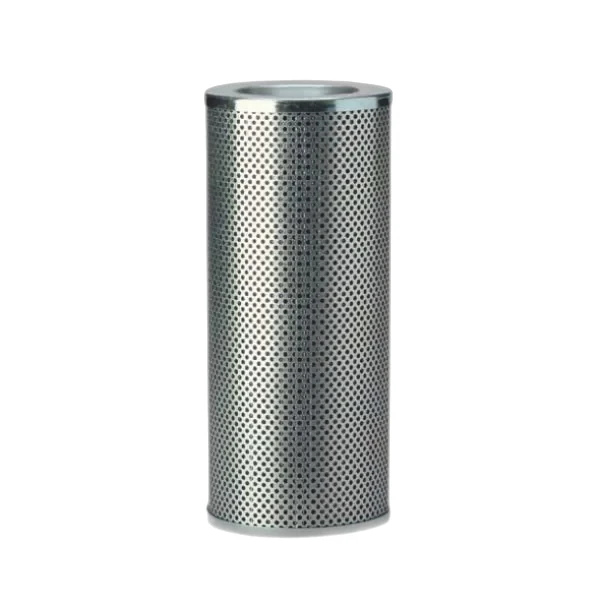

Fleetguard - HF28803 - Hydraulic filter element
Fleetguard - HF28803 - Hydraulic filter element
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Fleetguard - HF28803 - Hydraulic filter element

Fleetguard - HF28803 - Hydraulic filter element

€97.04

(Excl. VAT)

Price

(Excl. VAT)

€97.04

Product Description

The Fleetguard HF28803 is a genuine hydraulic spin-on filter designed to provide superior protection for hydraulic systems. Featuring Synteq XP media, it offers high efficiency with a Beta 1000 rating at 10 micron, effectively removing contaminants. This filter has a height of 170 mm, an outer diameter of 95 mm, and a 1 1/2-16 UN-2B thread size. It includes a bypass valve set at 1.7 bar (25 psi) to ensure continuous fluid flow under varying conditions. It is a direct replacement for OEM part numbers like Case IH/New Holland 87405288 and aftermarket equivalents such as Donaldson P172465.
Fleetguard
Fleetguard manufactures filtration systems for agricultural and industrial machinery, including tractors and combines. The brand produces high-performance air, oil, and fuel filters to protect engines from contaminants. Its solutions are designed for reliability in demanding farming environments. Shop more than 9,141 genuine Fleetguard spare parts.

Product Details

Brand
fleetguard
Equivalent OEM Part Numbers

Case Ih

87405288

New Holland

87405288
Equivalent AM Part Numbers

Donaldson

P172465

Wix

57246

Baldwin

BT8422
Fits

Case Ih

MX100MX110MX120MX135MX150MX170MX180MX200MX210MX220MX230MX240MX255MX270MX285STX275STX325STX375STX425STX440STX450STX500STX530Magnum 215Magnum 245Magnum 275Magnum 305Magnum 335Steiger 335Steiger 385Steiger 435Steiger 485Steiger 535Quadtrac 450Quadtrac 500Quadtrac 530911091309150917091809210923092409250926092709280931093309350937093809390

New Holland

TJ275TJ325TJ375TJ425TJ450TJ500TJ530T8010T8020T8030T8040T8050T9020T9030T9040T9050T9060TG210TG230TG255TG285TV140TV145TV607086708770887089709030V928294829682988290309280948096809880
Height (mm)
170
Outer Diameter (mm)
95
Weight (kg)
0.798
Thread Size
1 1/2-16 UN-2B
Bypass Valve
True
Bypass Valve Setting (bar)
1.7
Media Type
Synteq XP
Efficiency Beta 1000 Micron
10
Manufacturer
fleetguard
