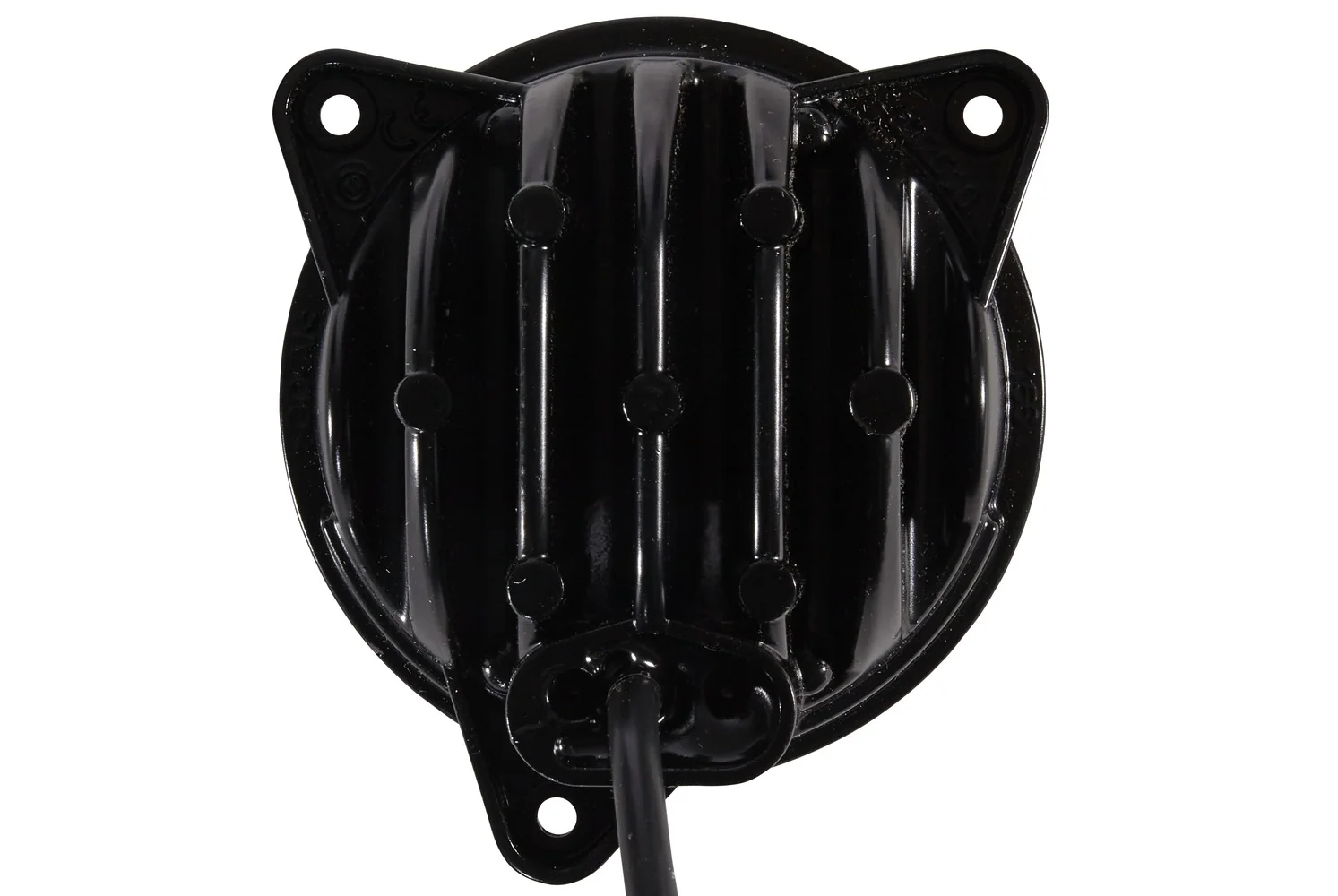

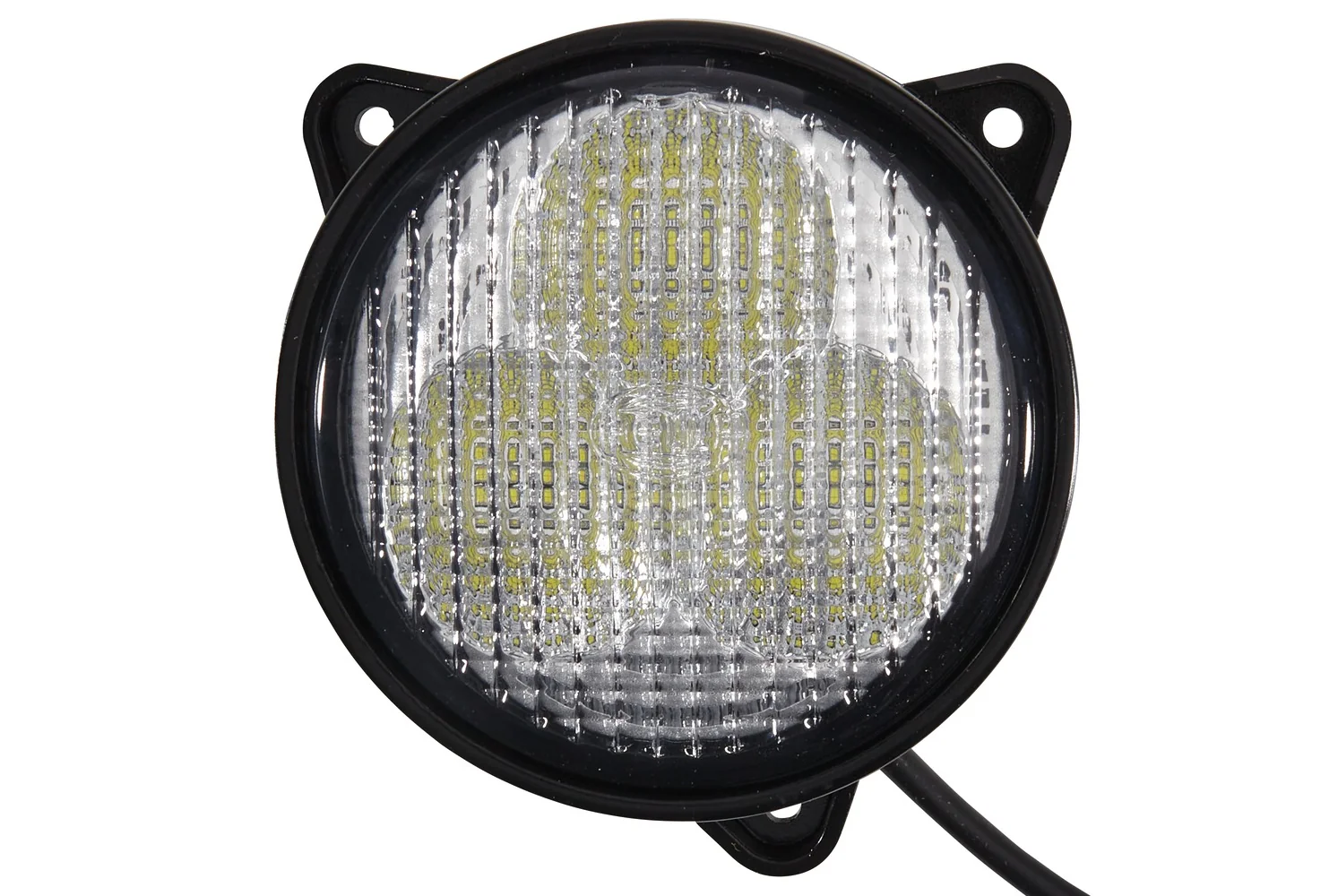

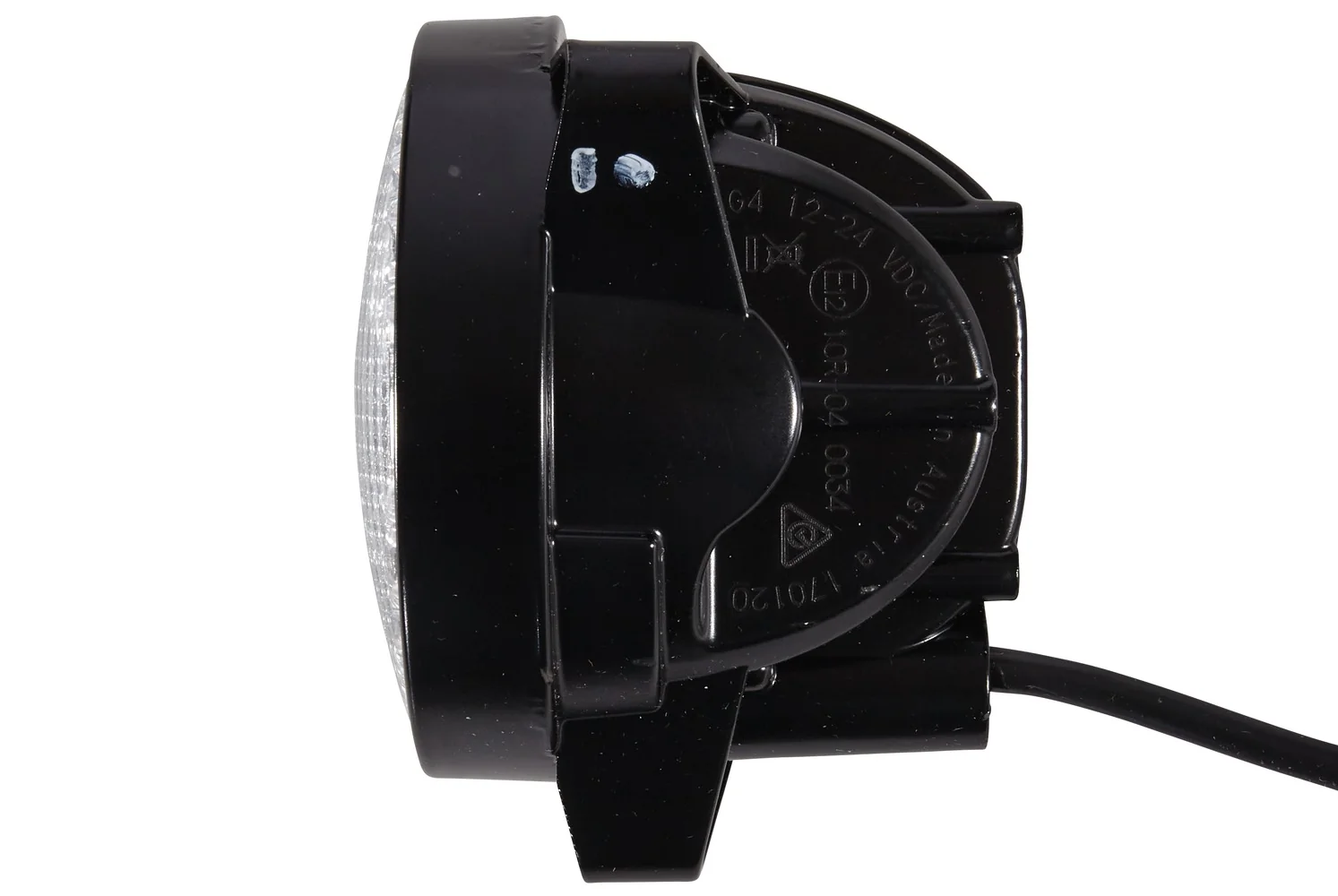

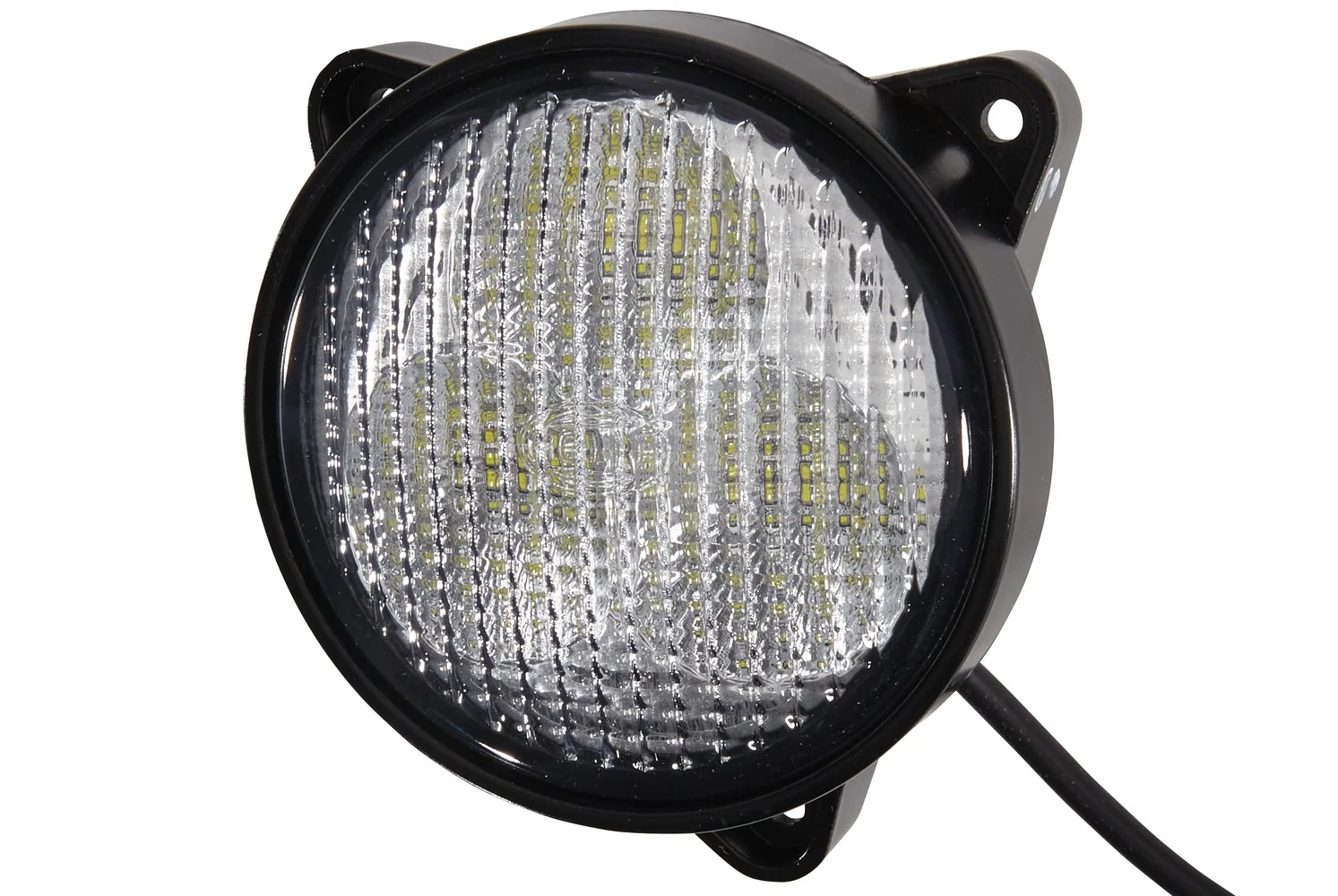

HELLA - 1G0 996 476-121 - LED-Worklight, Modul 70 Gen. IV, 12/24V
HELLA - 1G0 996 476-121 - LED-Worklight, Modul 70 Gen. IV, 12/24V
HELLA - 1G0 996 476-121 - LED-Worklight, Modul 70 Gen. IV, 12/24V
HELLA - 1G0 996 476-121 - LED-Worklight, Modul 70 Gen. IV, 12/24V
HELLA - 1G0 996 476-121 - LED-Worklight, Modul 70 Gen. IV, 12/24V
HELLA - 1G0 996 476-121 - LED-Worklight, Modul 70 Gen. IV, 12/24V
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

HELLA - 1G0 996 476-121 - LED-Worklight, Modul 70 Gen. IV, 12/24V

HELLA - 1G0 996 476-121 - LED-Worklight, Modul 70 Gen. IV, 12/24V

€128.16

(Excl. VAT)

Price

(Excl. VAT)

€128.16

Product Description

With the Module 70 LED Generation IV, HELLA is launching a compact worklight with very powerful light output. For the first time, LED light output at xenon level can be achieved in this compact design. Equipped with 3 high-performance multi-chip LEDs, this worklight produces 2,500 measured lumens with an energy consumption of only 30 watts. The black housing of the Module 70 LED Gen. IV is made of aluminium and has cooling fins to ensure the necessary heat dissipation of the high-performance LEDs. The Module 70 LED Gen. IV is a robust worklight for various applications despite its compact form. The light beams of the LEDs are emitted homogeneously into the working area thanks to the multifacet reflector and the light disk. In addition to classic close-range and wide-range illumination, there is the Module 70 LED Gen. IV in another extra-wide special illumination. With a colour temperature of 6,500 Kelvin, the light of the LED worklight is very similar to daylight, making it possible to distinguish colours more clearly in the dark. Thus, making it much easier for the human eye to perceive the senses and prevent rapid eye fatigue. The electronics of the Module 70 LED Gen. IV is multi-voltage compatible and can therefore be operated with 12 or 24 volts. The integrated electronics protect the unit in the event of reverse polarity and ensure constant brightness even with a fluctuating operating voltage of 9 to 32 volts. In addition, temperature sensors protect the worklight from overheating. This is the only way to ensure the long service life of the LEDs and safe working at night.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Hamm

2438359

Hydrema

7401158

Krone

200849620
Plug
Open cable ends
Cable
2000 mm
Depth
73 mm
Width
85 mm
Height
85 mm
Voltage
24 V / 12 V
Lamp Type
LED
Housing Type
Aluminium Housing
Light Design
LED
Assembly Note
Assembly by qualified personnel required
Luminous Flux
2500 lm
Mounting Type
Fitting / Screw Connection
Fastening Type
3-point attachment
Housing Colour
Black
Number of LEDs
3
Power Consumption
30 W
Colour Temperature
6500 K
Light Distribution
Short-Range Illumination
Diffusing Lens Type
Patterned diffusing lens
Fulfils ECE Standard
R10
Diffusing Lens Material
PC (Polycarbonate)
Protection Type (IP Code)
IP6K9K / IP6K7
Manufacturer
HELLA
