Home
Electrical, Lighting & Batteries
Lighting
Work Lights
HELLA - 1GA 996 661-021 - LED-Worklight, Oval 100, 12/24V
HELLA - 1GA 996 661-021 - LED-Worklight, Oval 100, 12/24V

In stock - ready to ship

Order now for delivery between 28 May and 1 June
Free shipping

Pay Securely with

HELLA - 1GA 996 661-021 - LED-Worklight, Oval 100, 12/24V

HELLA - 1GA 996 661-021 - LED-Worklight, Oval 100, 12/24V

€144.75

(Excl. VAT)

Price

(Excl. VAT)

€144.75

Product Description

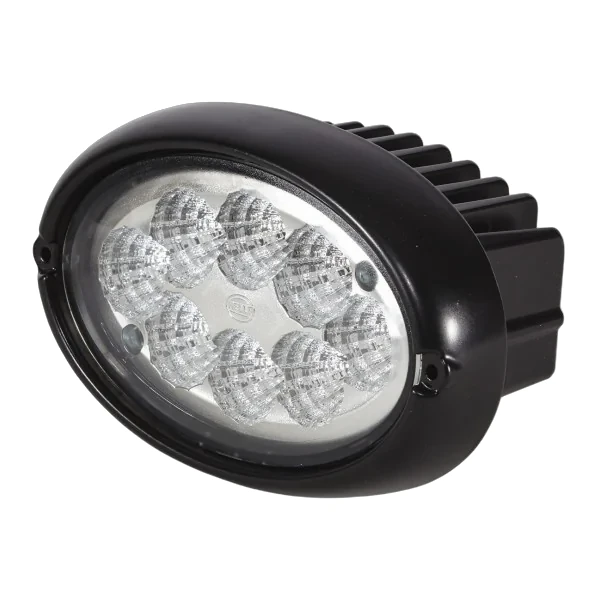

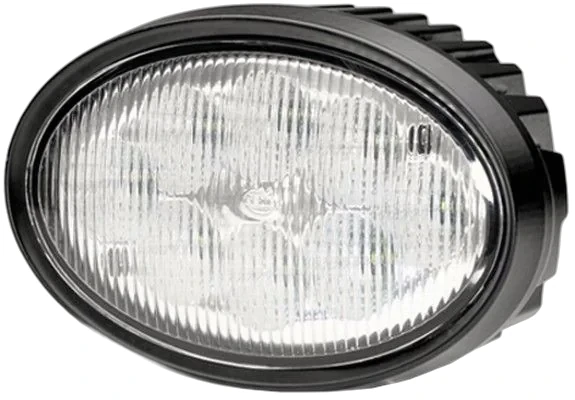

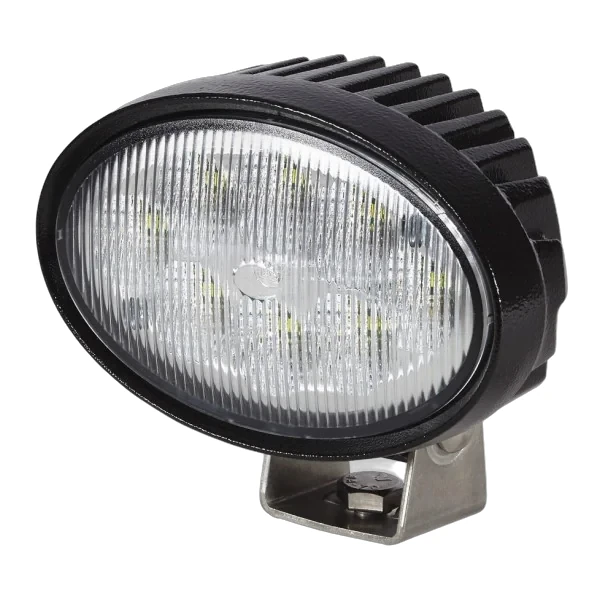

The Oval 100 LED worklight complements the modular series with the halogen and xenon variants with efficient LED technology. The spotlight can be operated with both 12 and 24 volts. The integrated electronics protect the unit in the event of reverse polarity and ensures constant brightness even with a fluctuating operating voltage of 9 to 33 volts. Thanks to its powerful light output, the Oval 100 LED can replace standard halogen worklights (e.g. H3 / 55 watts) - with a power consumption of only 25 watts. This makes the worklight ideal for use on vehicles with battery operation, and when the alternator is already heavily loaded. The light output is a powerful 1,700 lumens. The light is distributed with a specially developed multi-facet reflector and ensures homogeneous illumination. The Oval 100 LED can be mounted either upright (0°) or suspended (180°). With 6,500 Kelvin, the light of the LED worklight is similar to daylight. This causes colours to distinguish more clearly in the dark than in the yellowish light of halogen bulbs, making it much easier for the human eye to perceive the senses and thus prevent rapid eye fatigue. The worklight's black housing is made of aluminium and has cooling fins to dissipate the heat from the 8 high-performance LEDs. In addition, a sensor protects the worklight from overheating. Only in this way can the long life of the LEDs (up to 130 times the life of a halogen bulb) be fully exploited.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Agco

71480385

Bomag

0575134705751347L
Plug
DEUTSCH plug
Depth
75 mm
Width
166 mm
Height
106 mm
Voltage
12 V / 24 V
Lamp Type
LED
Housing Type
Aluminium Housing
Light Design
LED
Assembly Note
Assembly by qualified personnel required
Luminous Flux
1700 lm
Mounting Type
Fitting / Screw Connection
Fastening Type
2-point attachment
Housing Colour
Black
Number of LEDs
8
Power Consumption
25 W
Registration Type
ADR/GGVS
Colour Temperature
6500 K
Light Distribution
Short-Range Illumination
Diffusing Lens Type
Patterned diffusing lens
Fulfils ECE Standard
R10
Protection Type (IP Code)
IP6K9K / IP6K7
Manufacturer
HELLA
