HELLA - 1GA 998 522-297 - Halogen-Worklight, Picador 8522, 24V
HELLA - 1GA 998 522-297 - Halogen-Worklight, Picador 8522, 24V
HELLA - 1GA 998 522-297 - Halogen-Worklight, Picador 8522, 24V
HELLA - 1GA 998 522-297 - Halogen-Worklight, Picador 8522, 24V
HELLA - 1GA 998 522-297 - Halogen-Worklight, Picador 8522, 24V
HELLA - 1GA 998 522-297 - Halogen-Worklight, Picador 8522, 24V

In stock - ready to ship

Order now for delivery between 27 May and 30 May
Free shipping on orders over €60

Pay Securely with

HELLA - 1GA 998 522-297 - Halogen-Worklight, Picador 8522, 24V

HELLA - 1GA 998 522-297 - Halogen-Worklight, Picador 8522, 24V

€28.52

(Excl. VAT)

Price

(Excl. VAT)

€28.52

Product Description

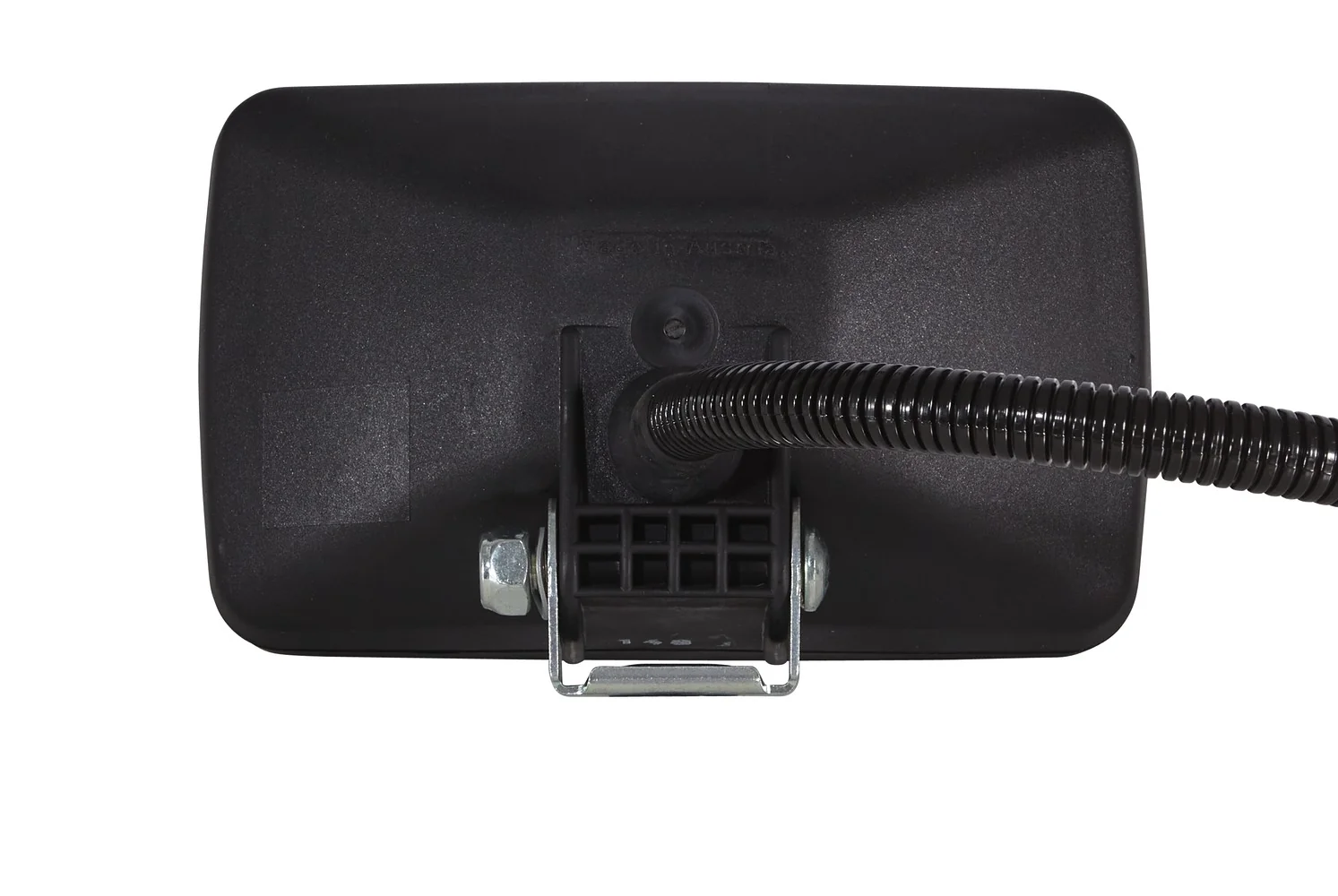

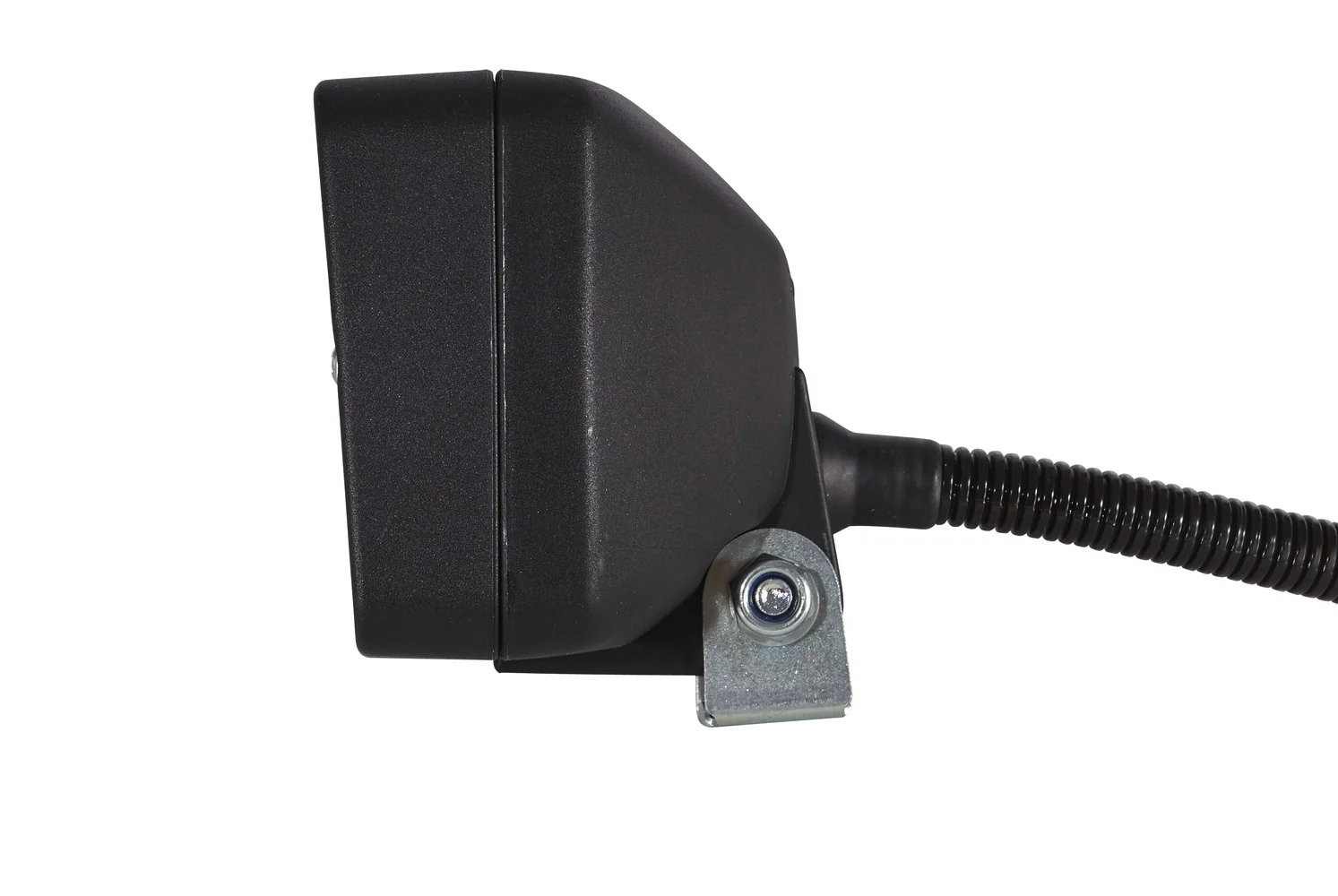

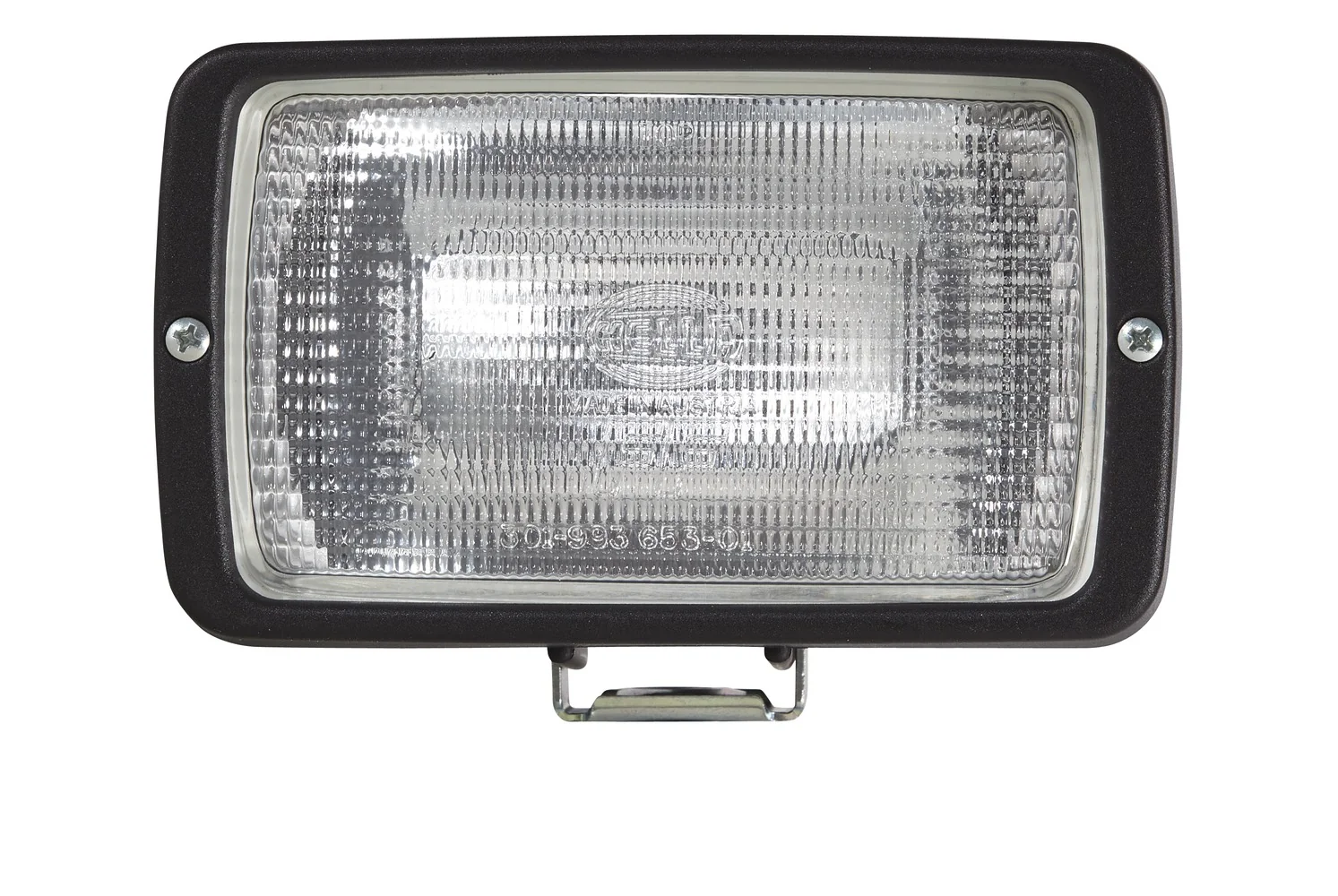

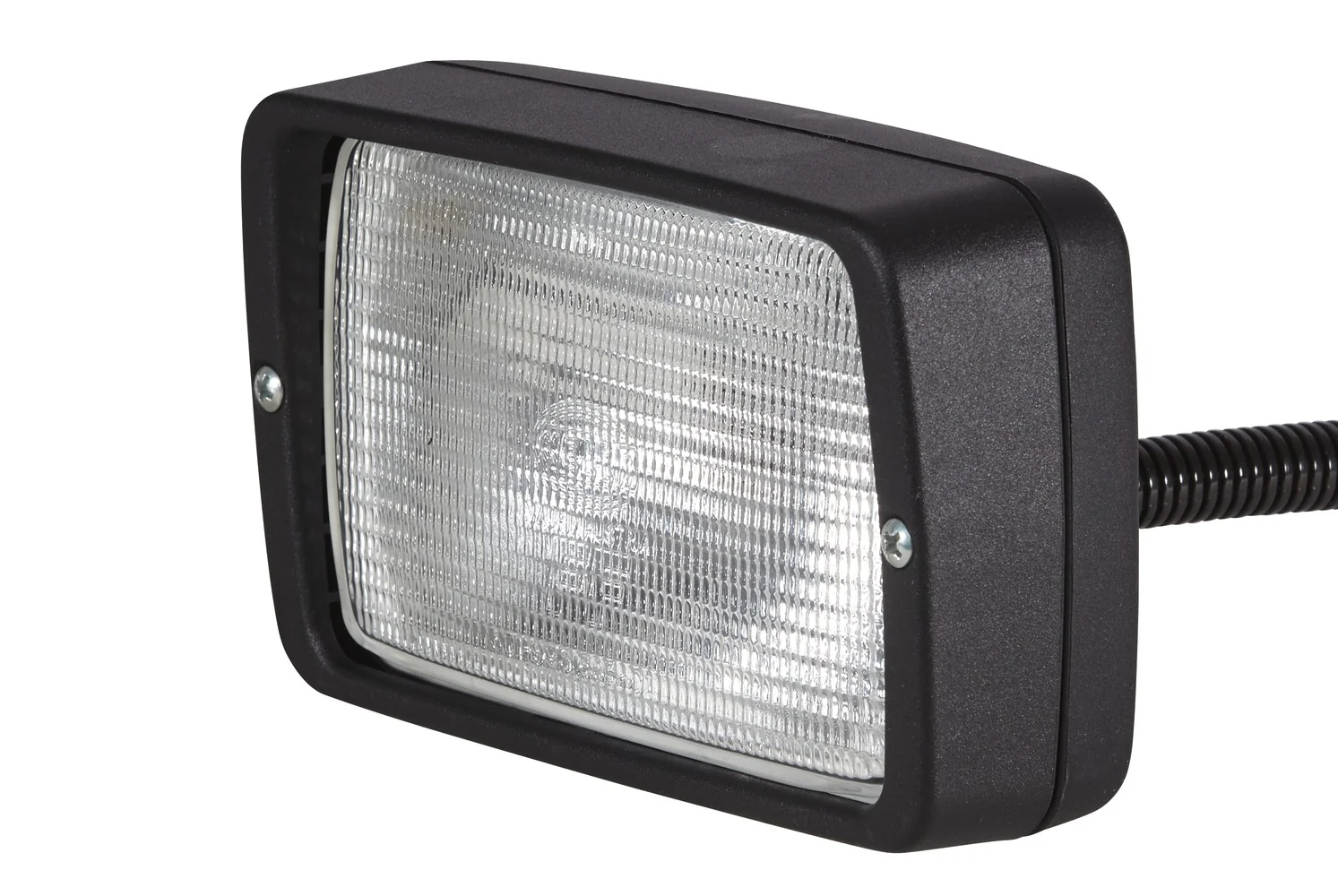

The reflector of the worklight is based on free-form technology. This, in conjunction with a structured glass diffuser panel, ensures intensive illumination of the working area at close range. An H3 bulb is used as the light source (not included). The worklight can be used with both 12 V and 24 V on-board voltage. The housing of this robust worklight is made of acid- and corrosion-resistant, glass-fibre reinforced plastic. To protect the glass diffusing panel, the housing is provided with a protruding rim at its front. Due to its compact external dimensions, the Picador FF can be mounted in most places. Thanks to the lateral mounting foot, the Picador FF 1GA 006 875-001 is suitable for mounting on vertical car body surfaces. The swivel joint makes it easy to align the worklight so that the working area can be optimally illuminated. A central foot connection is intended for both upright and suspended mounting (by rotating the spotlight insert) on horizontal surfaces. The cable feed-through for the power connection is via a grommet.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Daf

1612432

Leyland daf

1612432
Plug
Protected contact plug
Cable
300 mm
Depth
84 mm
Width
154 mm
Height
104 mm
Voltage
24 V
Lamp Type
H3
Housing Type
Synthetic Material Housing
Light Design
Halogen
Assembly Note
Assembly by qualified personnel required
Mounting Type
Mounting / Bolted
Fastening Type
Swivelling Mounting Bracket / Vertical
Housing Colour
Black
Power Consumption
70 W
Light Distribution
Short-Range Illumination
Diffusing Lens Type
Patterned diffusing lens
Protection Type (IP Code)
IP5K4K
Manufacturer
HELLA
