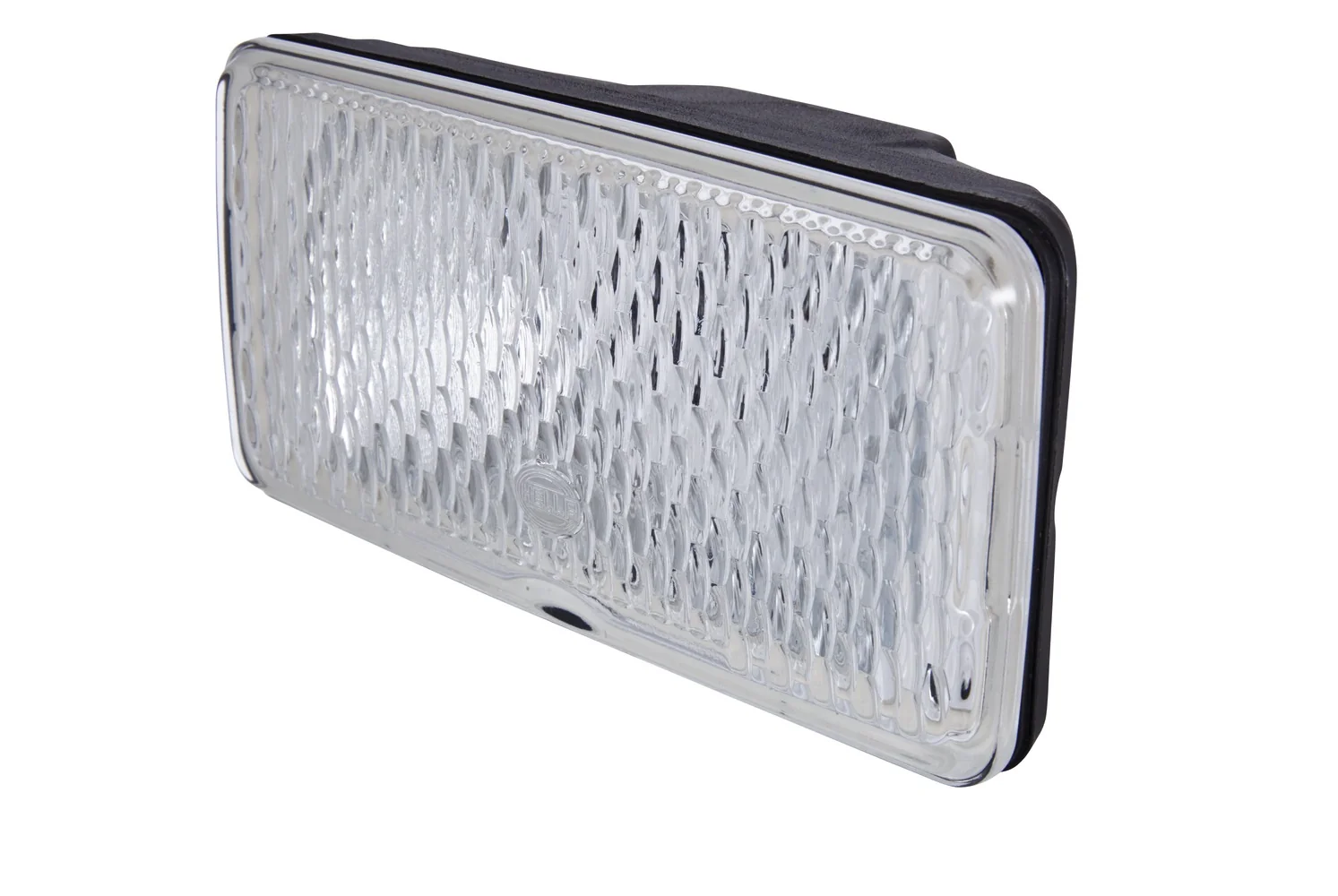

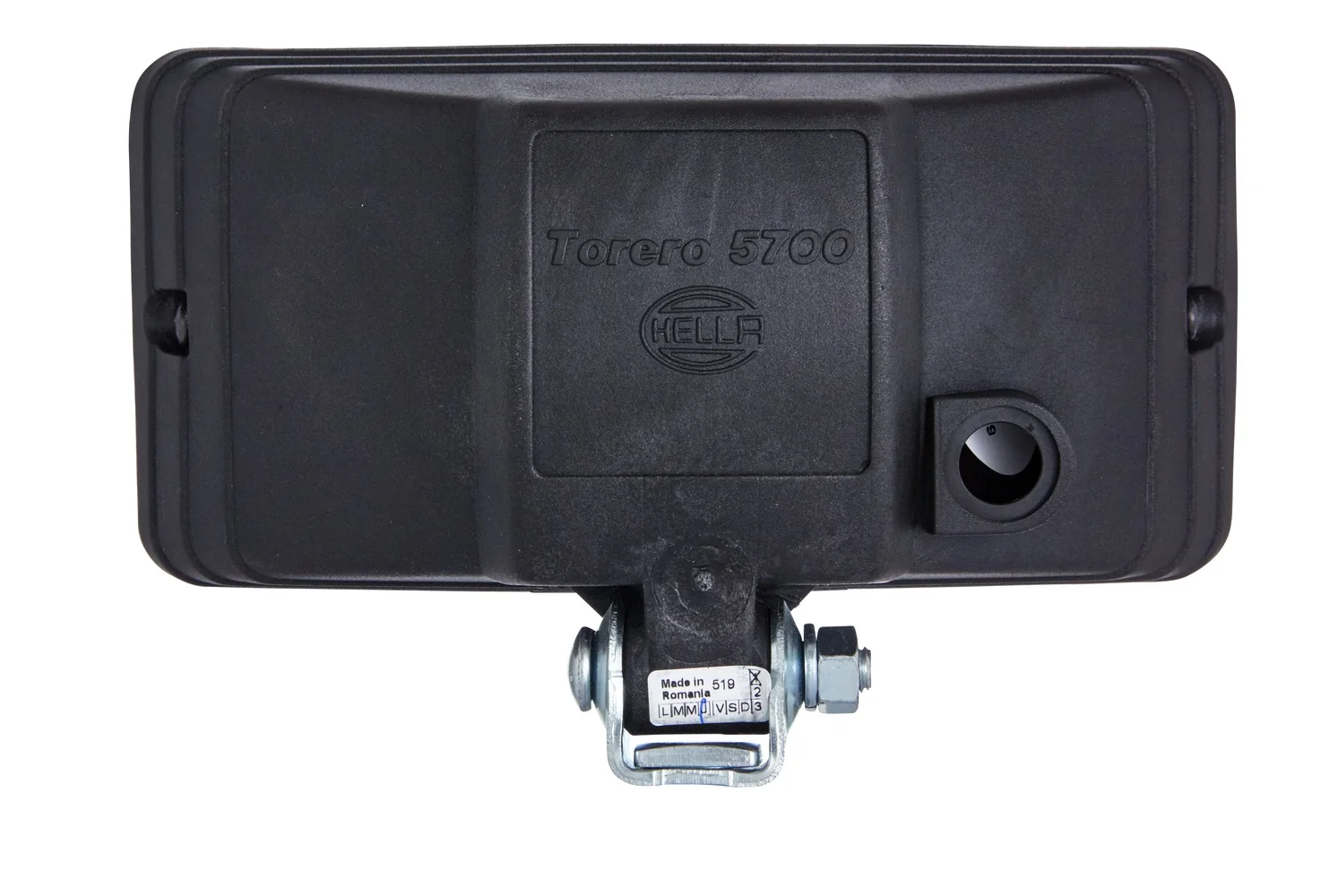

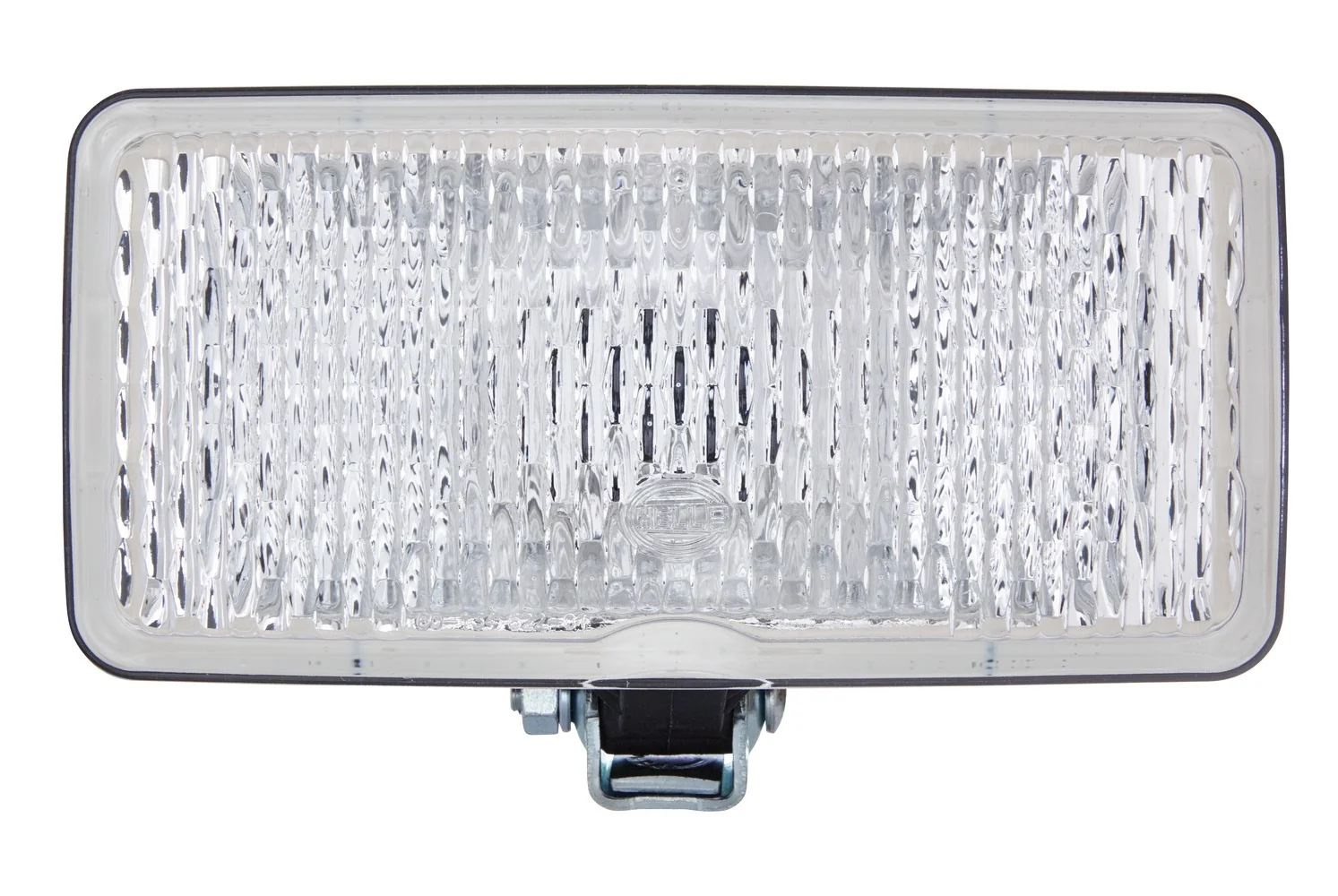

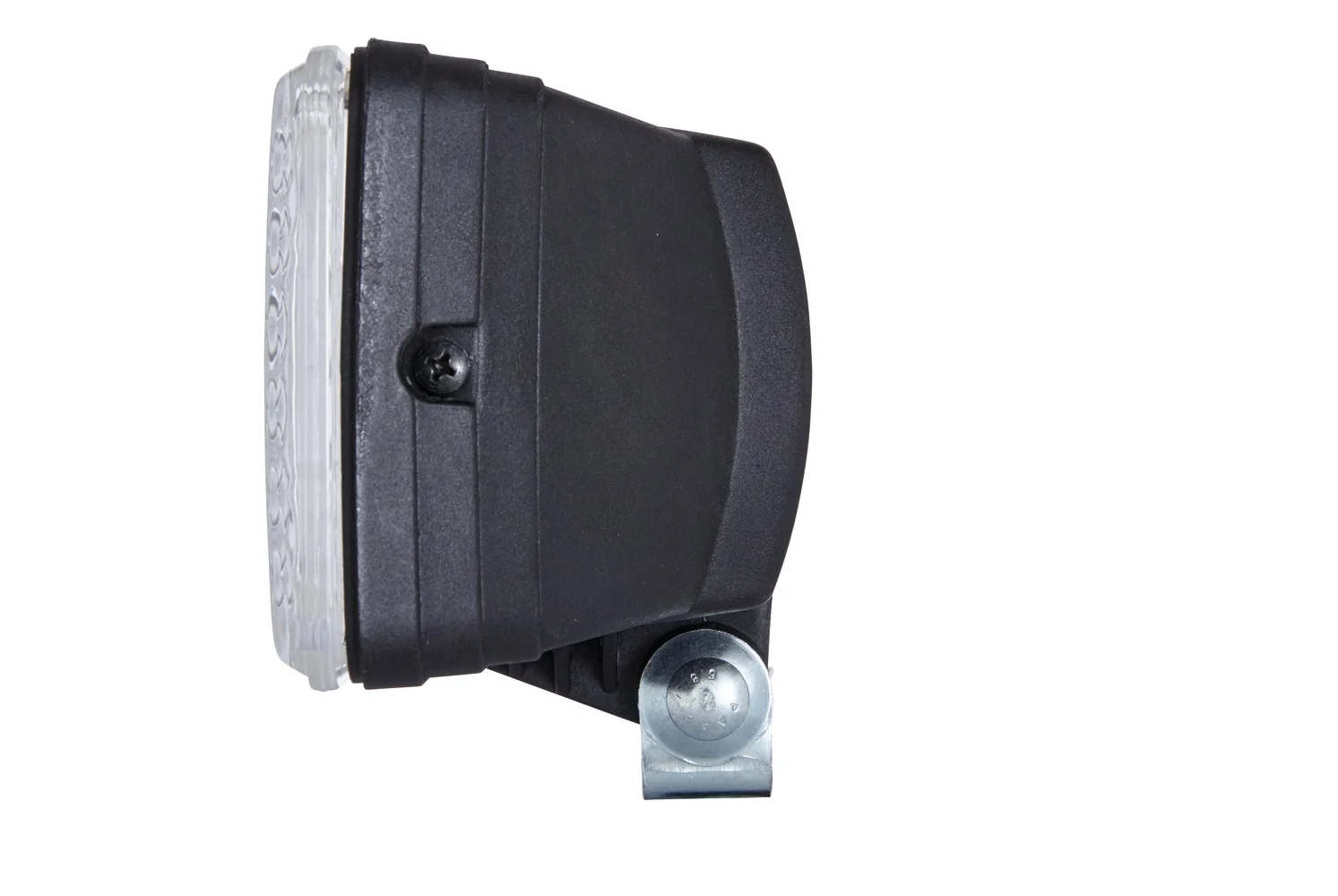

HELLA - 1GD 005 700-501 - Halogen-Worklight 5700, 24/12V
HELLA - 1GD 005 700-501 - Halogen-Worklight 5700, 24/12V
HELLA - 1GD 005 700-501 - Halogen-Worklight 5700, 24/12V
HELLA - 1GD 005 700-501 - Halogen-Worklight 5700, 24/12V
HELLA - 1GD 005 700-501 - Halogen-Worklight 5700, 24/12V
HELLA - 1GD 005 700-501 - Halogen-Worklight 5700, 24/12V

In stock - ready to ship

Order now for delivery between 28 May and 1 June
Free shipping on orders over €60

Pay Securely with

HELLA - 1GD 005 700-501 - Halogen-Worklight 5700, 24/12V

HELLA - 1GD 005 700-501 - Halogen-Worklight 5700, 24/12V

€36.80

(Excl. VAT)

Price

(Excl. VAT)

€36.80

Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Faun

5247 605

Faymonville

3546

Feldbinder

1043552

Hamm

385077

Kögel

250714

Langendorf

1226190

Mafi

000,580,0029

Schmitz cargobull

063113063118

Still

1730074

Terberg benschop

T25071084
Plug
Blade Terminal
Depth
83 Mm
Width
195 Mm
Height
96 Mm
Voltage
12 V / 24 V
Lamp Type
H3
Housing Type
Synthetic Material Housing
Light Design
Halogen
Assembly Note
Assembly By Qualified Personnel Required
Mounting Type
Bolted / Mounting
Fastening Type
Vertical / Swivelling Mounting Bracket
Housing Colour
Black
Power Consumption
35 W / 70 W
Light Distribution
Short-Range Illumination
Diffusing Lens Type
Patterned Diffusing Lens
Supplementary Article
With Screw / Without Bulbs
Diffusing Lens Material
Glass
Protection Type IP Code
IP5K4K
Manufacturer
HELLA
