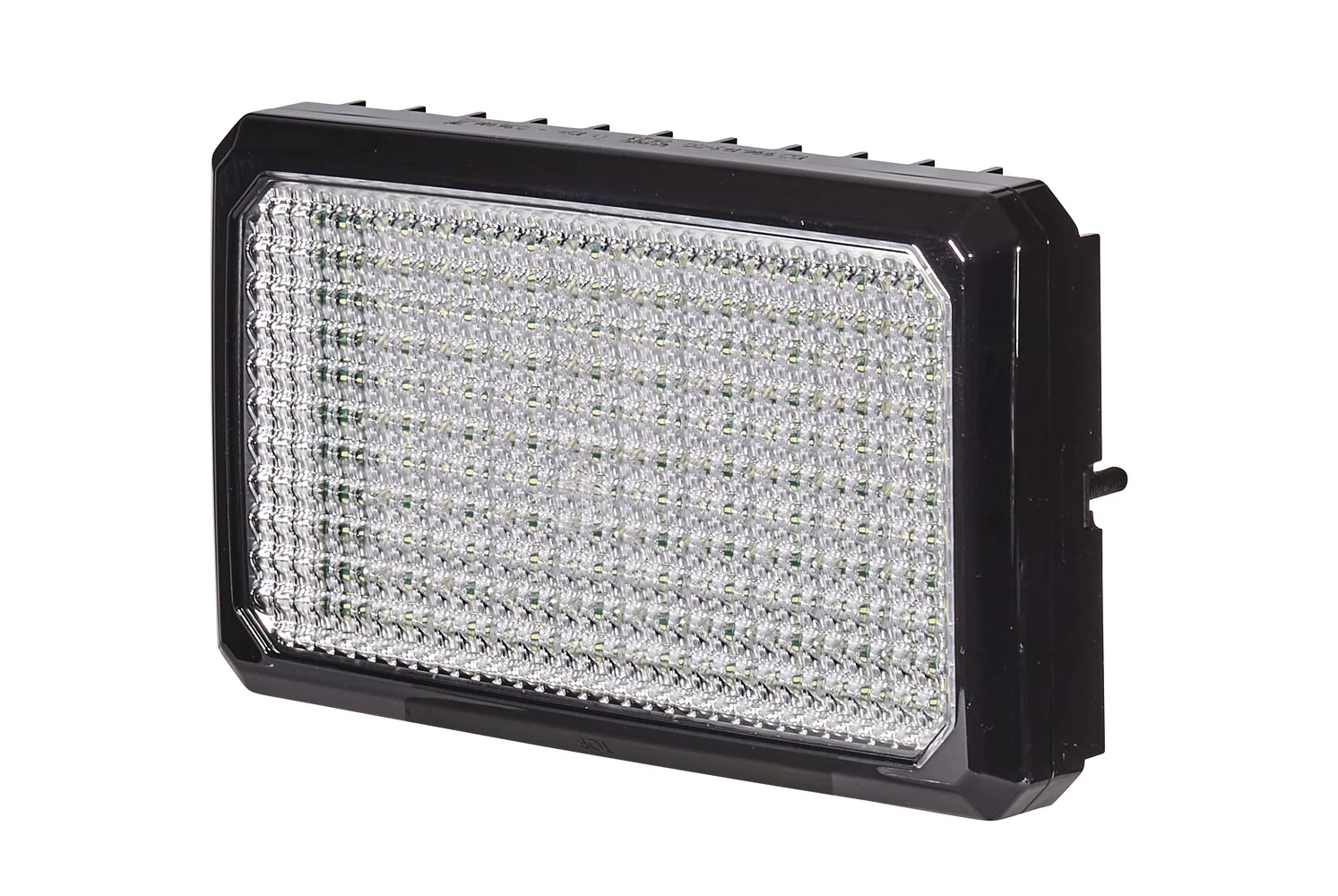

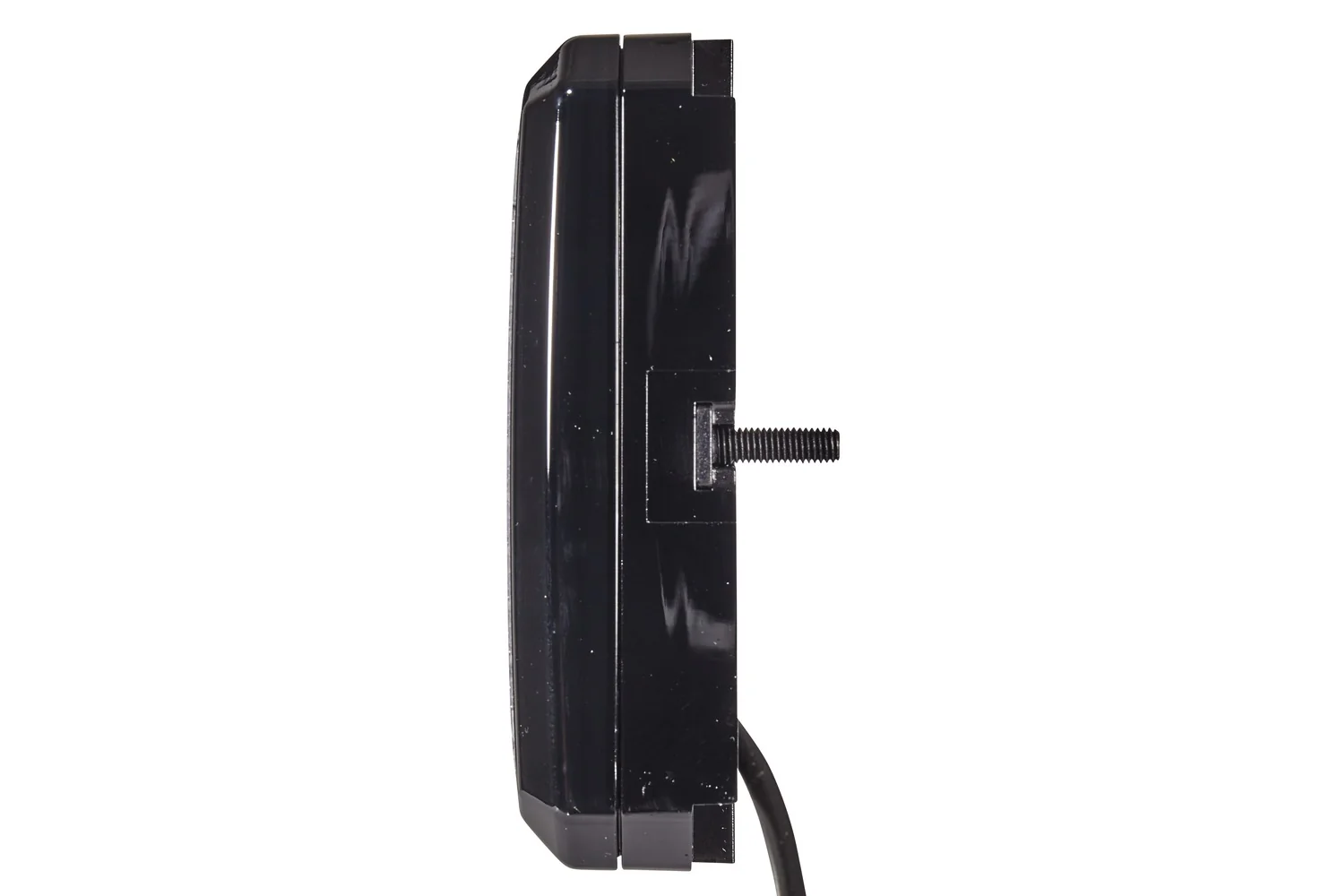

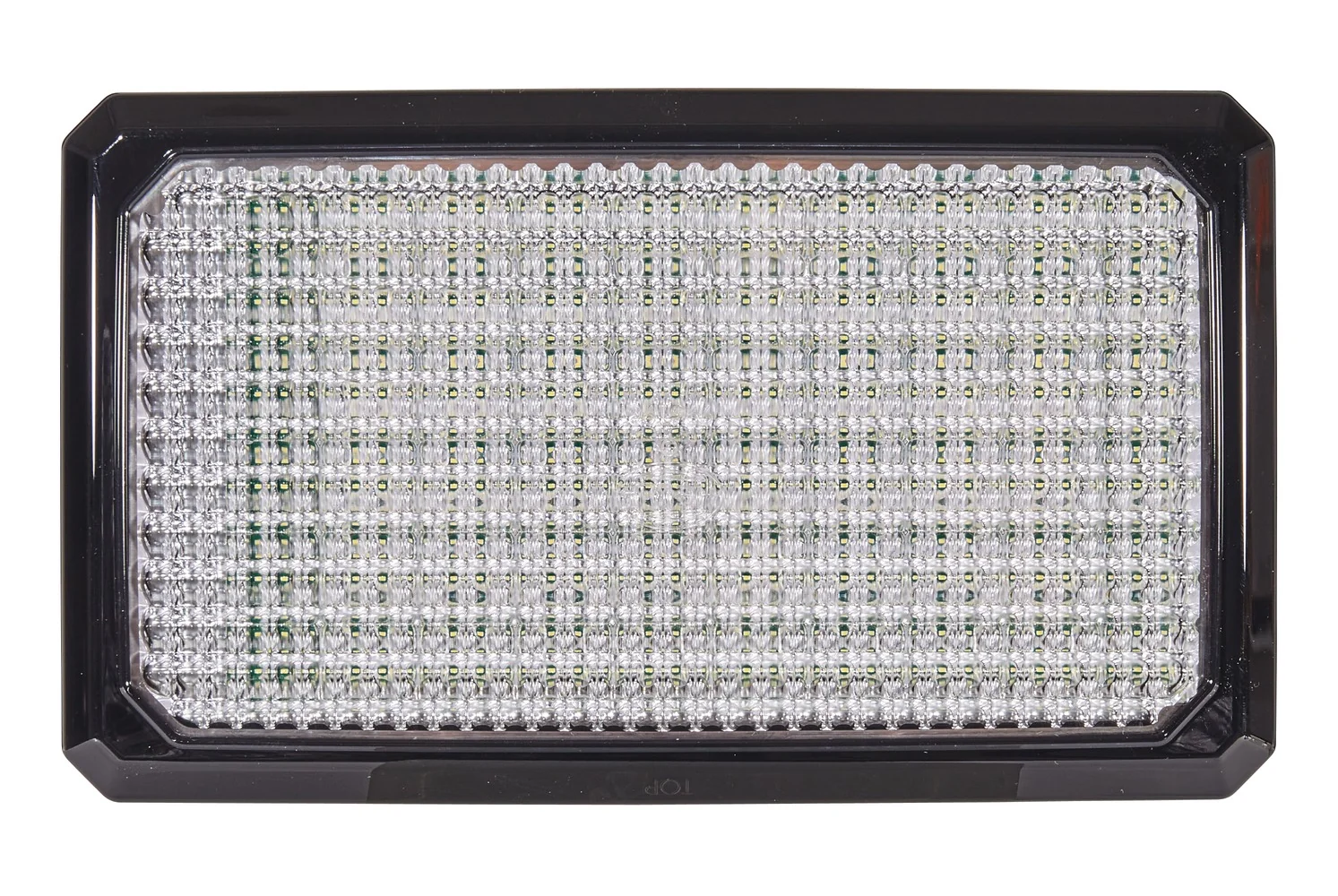

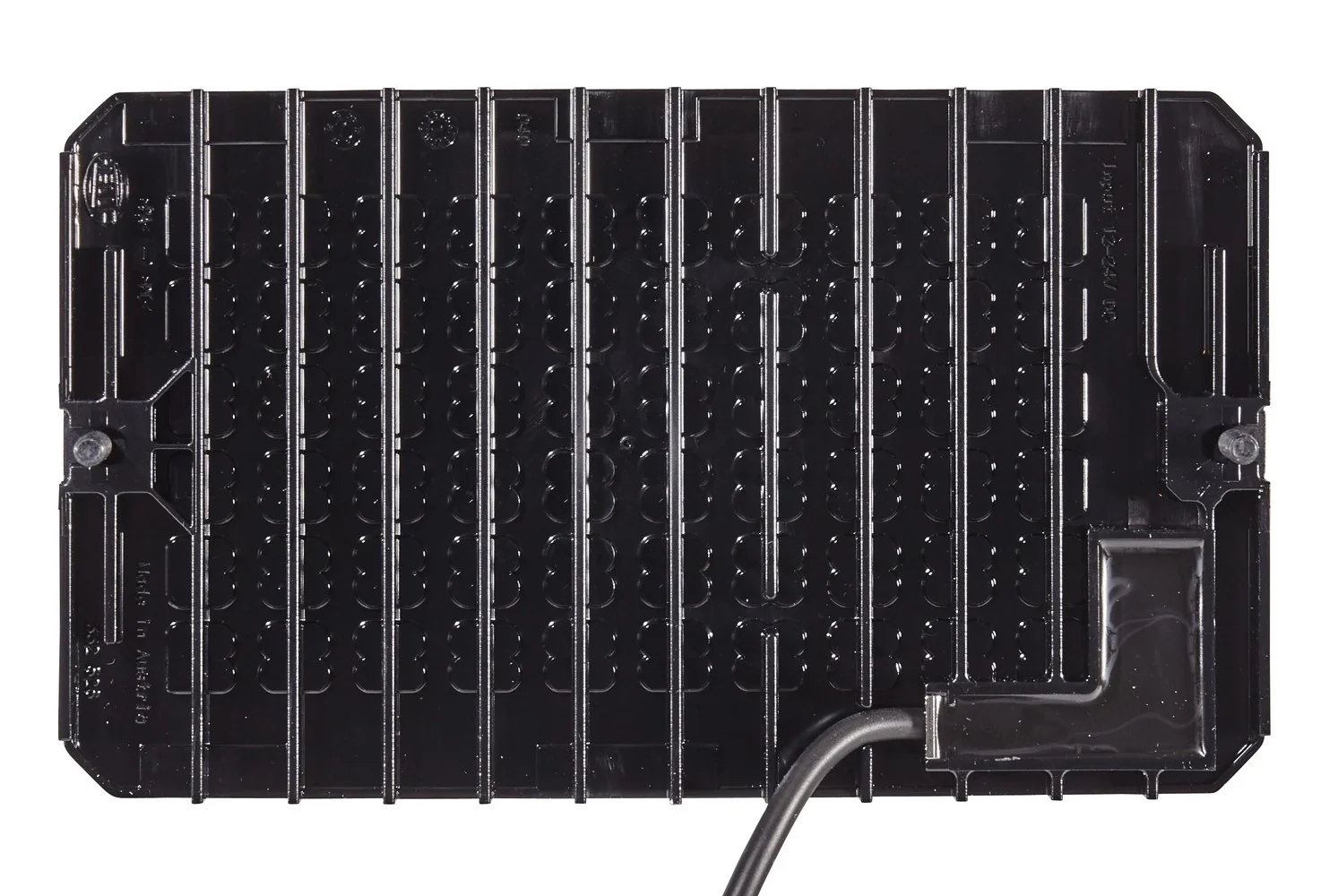

HELLA - 1GD 996 193-001 - LED-Worklight, Flat Beam 1000, 24/12V
HELLA - 1GD 996 193-001 - LED-Worklight, Flat Beam 1000, 24/12V
HELLA - 1GD 996 193-001 - LED-Worklight, Flat Beam 1000, 24/12V
HELLA - 1GD 996 193-001 - LED-Worklight, Flat Beam 1000, 24/12V
HELLA - 1GD 996 193-001 - LED-Worklight, Flat Beam 1000, 24/12V
HELLA - 1GD 996 193-001 - LED-Worklight, Flat Beam 1000, 24/12V

In stock - ready to ship

Order now for delivery between 28 May and 1 June
Free shipping

Pay Securely with

HELLA - 1GD 996 193-001 - LED-Worklight, Flat Beam 1000, 24/12V

HELLA - 1GD 996 193-001 - LED-Worklight, Flat Beam 1000, 24/12V

€143.67

(Excl. VAT)

Price

(Excl. VAT)

€143.67

Product Description

The Flat Beam 1000 LED from HELLA is a highly efficient LED worklight. Due to its extremely flat design, the worklight is ideal for mounting situations with little space and allows flexible mounting options, e.g. on the rear wall of trucks. With a light output of 1,100 lumens, the Flat Beam 1000 LED provides homogeneous illumination in the near-field area of the working environment. In addition to the standard light distribution for near-field illumination, the Flat Beam 1000 LED is also available as a variant with 45° near-field illumination. With this illumination variant, the special optics in the lens ensure that the light is perfectly directed into the working area, even when mounted vertically on the wall. The structure refracts the light downwards at a 45° angle and thus provides good illumination in the direct near-field area. This LED worklight features 60 energy-efficient LEDs that consume only 11 watts of power. To achieve the same amount of light with a 12 volt halogen headlamp, 70 watts (e.g. H3) are needed. The reduced energy consumption of the vehicle minimises energy costs and protects the environment. The Flat Beam 1000 LED can be operated with either 12 or 24 volts. The integrated electronics protect the unit in the event of reverse polarity and ensures constant brightness even with a fluctuating operating voltage of 9 to 32 volts.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Alexander dennis

76180004

Claas

00172360

Daf

1528215

Faun

5171783

Iveco

503226736

Liebherr

10177498

Rosenbauer

571638

Scania

2331320

Van hool

11511903

Vdl

11511903
Plug
Open cable ends
Cable
2000 mm
Depth
44 mm
Width
190 mm
Height
113 mm
Voltage
24 V / 12 V
Lamp Type
LED
Housing Type
Synthetic Material Housing
Light Design
LED
Assembly Note
Assembly by qualified personnel required
Luminous Flux
1100 lm
Mounting Type
Mounting / Screw Connection
Fastening Type
Vertical
Housing Colour
Black
Number of LEDs
60
Power Consumption
11 W
Colour Temperature
6500 K
Light Distribution
Short-Range Illumination
Diffusing Lens Type
Patterned diffusing lens
Fulfils ECE Standard
R10
Diffusing Lens Material
PC (Polycarbonate)
Protection Type (IP Code)
IP6K7 / IP6K9K
Manufacturer
HELLA
