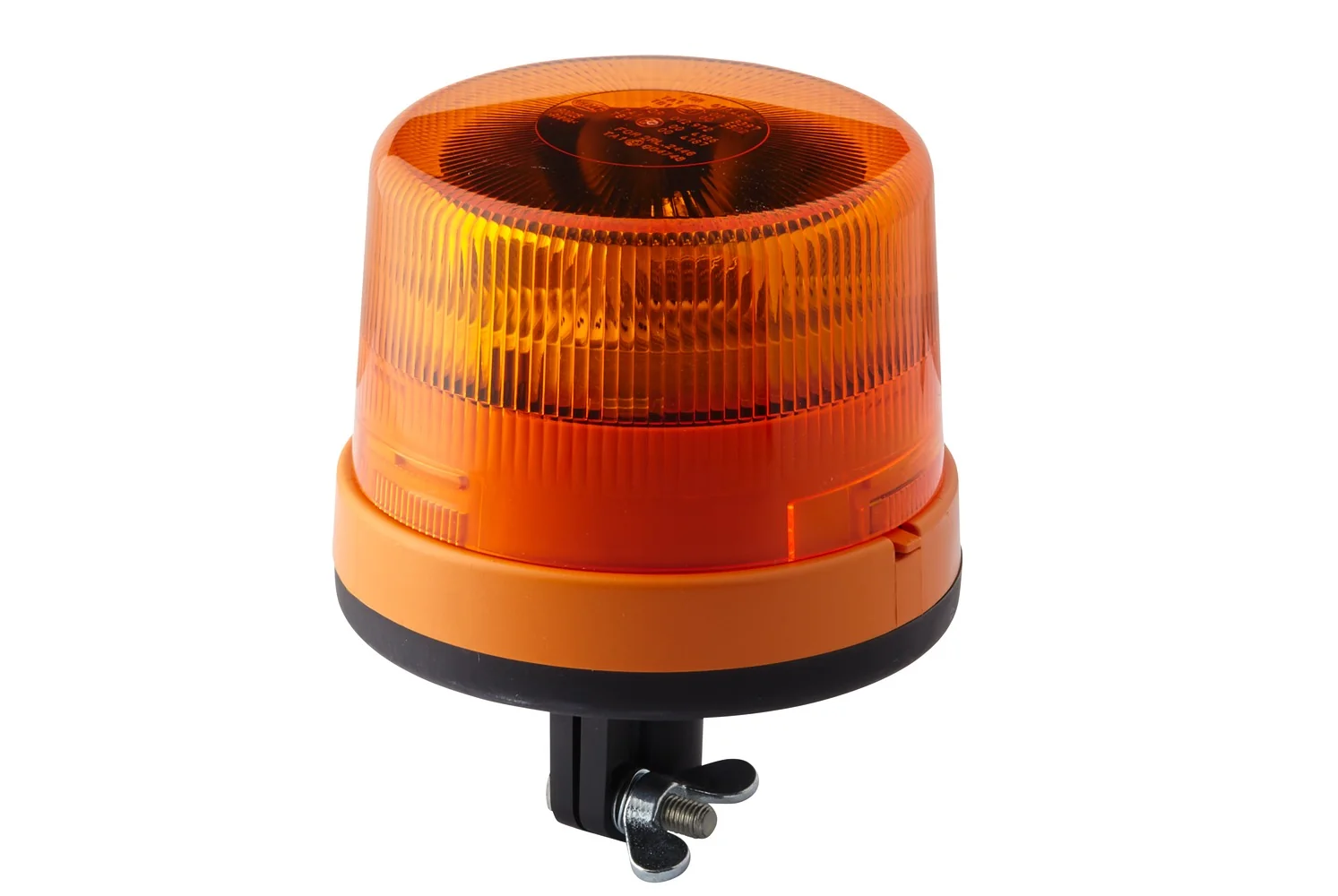

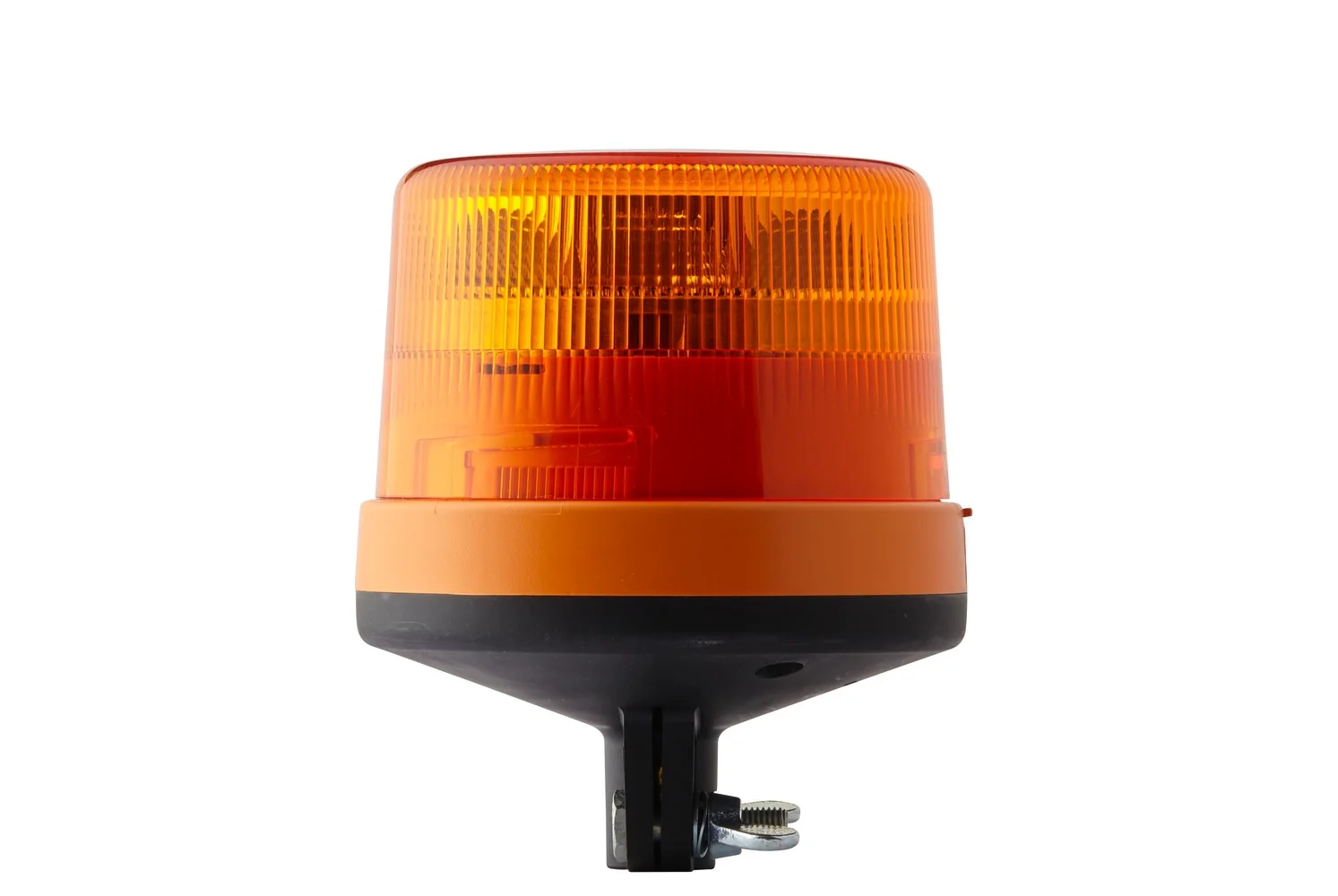

HELLA - 2RL 011 484-011 - LED-Rotating Beacon, KL 7000, 12/24V, yellow (amber)
HELLA - 2RL 011 484-011 - LED-Rotating Beacon, KL 7000, 12/24V, yellow (amber)
HELLA - 2RL 011 484-011 - LED-Rotating Beacon, KL 7000, 12/24V, yellow (amber)
HELLA - 2RL 011 484-011 - LED-Rotating Beacon, KL 7000, 12/24V, yellow (amber)
HELLA - 2RL 011 484-011 - LED-Rotating Beacon, KL 7000, 12/24V, yellow (amber)
HELLA - 2RL 011 484-011 - LED-Rotating Beacon, KL 7000, 12/24V, yellow (amber)

In stock - ready to ship

Order now for delivery between 28 May and 1 June
Free shipping

Pay Securely with

HELLA - 2RL 011 484-011 - LED-Rotating Beacon, KL 7000, 12/24V, yellow (amber)

HELLA - 2RL 011 484-011 - LED-Rotating Beacon, KL 7000, 12/24V, yellow (amber)

€128.98

(Excl. VAT)

Price

(Excl. VAT)

€128.98

Product Description

The KL 7000 LED beacon is available with flashing or rotating light function. The signal is generated by means of an electronic concept and thus without moving parts. The beacon can be connected to an operating voltage of 10 - 32 V and is available as a fixed-mount variant (F), with tube socket mounting (R) or with magnetic mounting (M). The fixed version can be mounted from above and below. The product is very flat and has a scratch-resistant and dirt-resistant smooth light bonnet. The height of the beacon is approx. 119 mm (F) to 194 mm (R), depending on the design. It meets the requirements of IP5K4K and IPX9K and is therefore protected against dust and resistant to high-pressure cleaners. In addition, the KL 7000 LED enables a 1:1 exchange from halogen to LED technology, as it is the successor of the halogen beacon series KL 700 and KL 7000.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Daf

1533685

Komatsu

97550840

Sany

60222275

Van hool

11586540

Vdl

11586540
Height
250 mm
Weight
875 g
Voltage
12 V / 24 V
Quantity
1
Lamp Type
LED
Lens Colour
Yellow (amber)
Light Colour
Yellow (amber)
Light Design
LED
Assembly Note
Assembly by qualified personnel required
Mounting Type
Flexible pipe sockets
Housing Colour
Yellow
Light Function
With rotating warning signal
Number of LEDs
8
Housing Material
Plastic
Outer Diameter 1
165 mm
Power Consumption
10 W
Registration Type
ADR/GGVS / SAE
Rotating Beacon RPM
123 1/min
Fulfils ECE Standard
R10 / R65
Temperature Range To
+60 °C
Fulfils Test Standard
RCM
Temperature Range From
-40 °C
Diffusing Lens Material
PMMA (Polymethylmethacrylate)
Protection Type (IP Code)
IPX9K / IP5K4K
Supplementary Article/Supplementary Info 2
Electromagnetic Compatibility (EMC)
Manufacturer
HELLA
