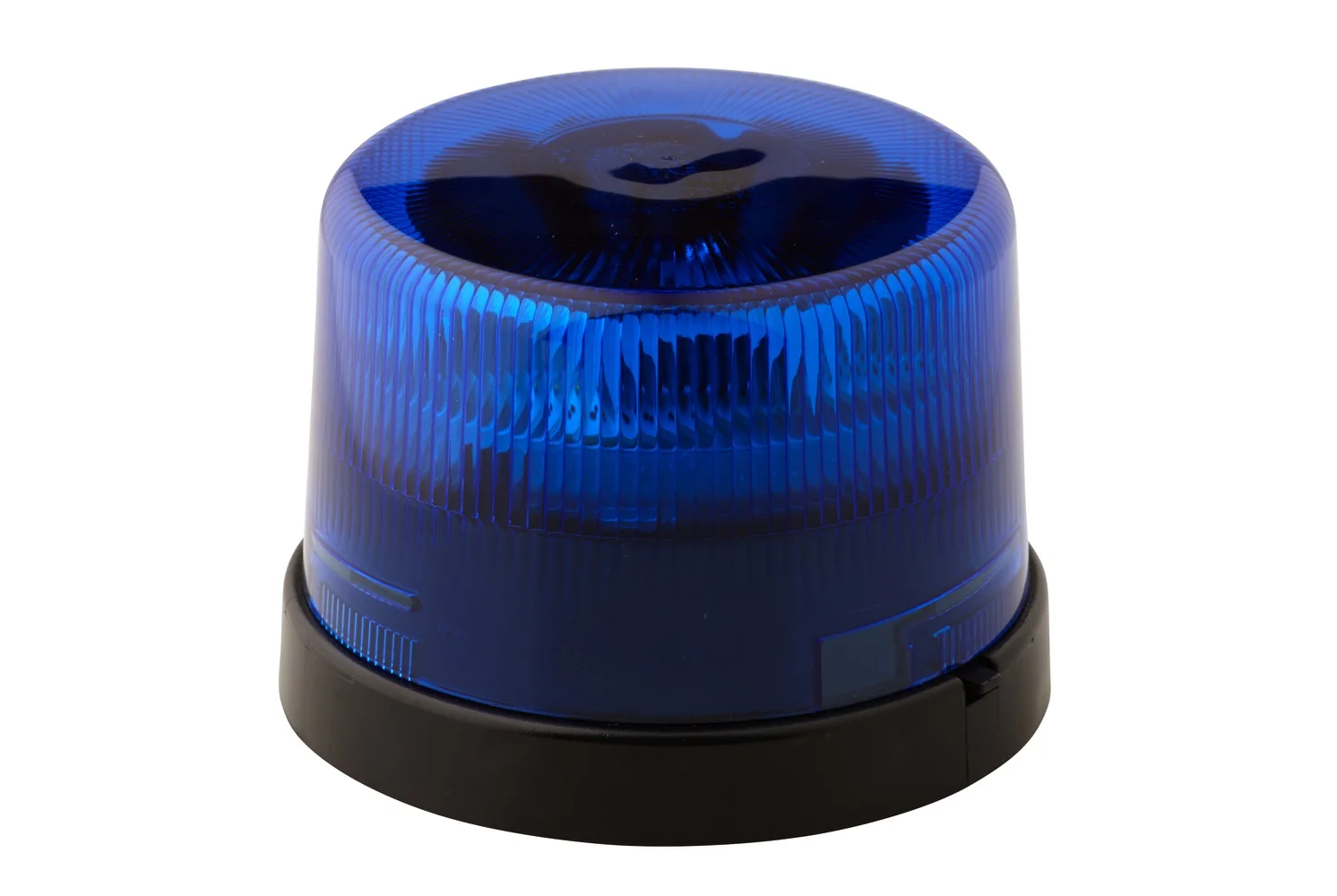

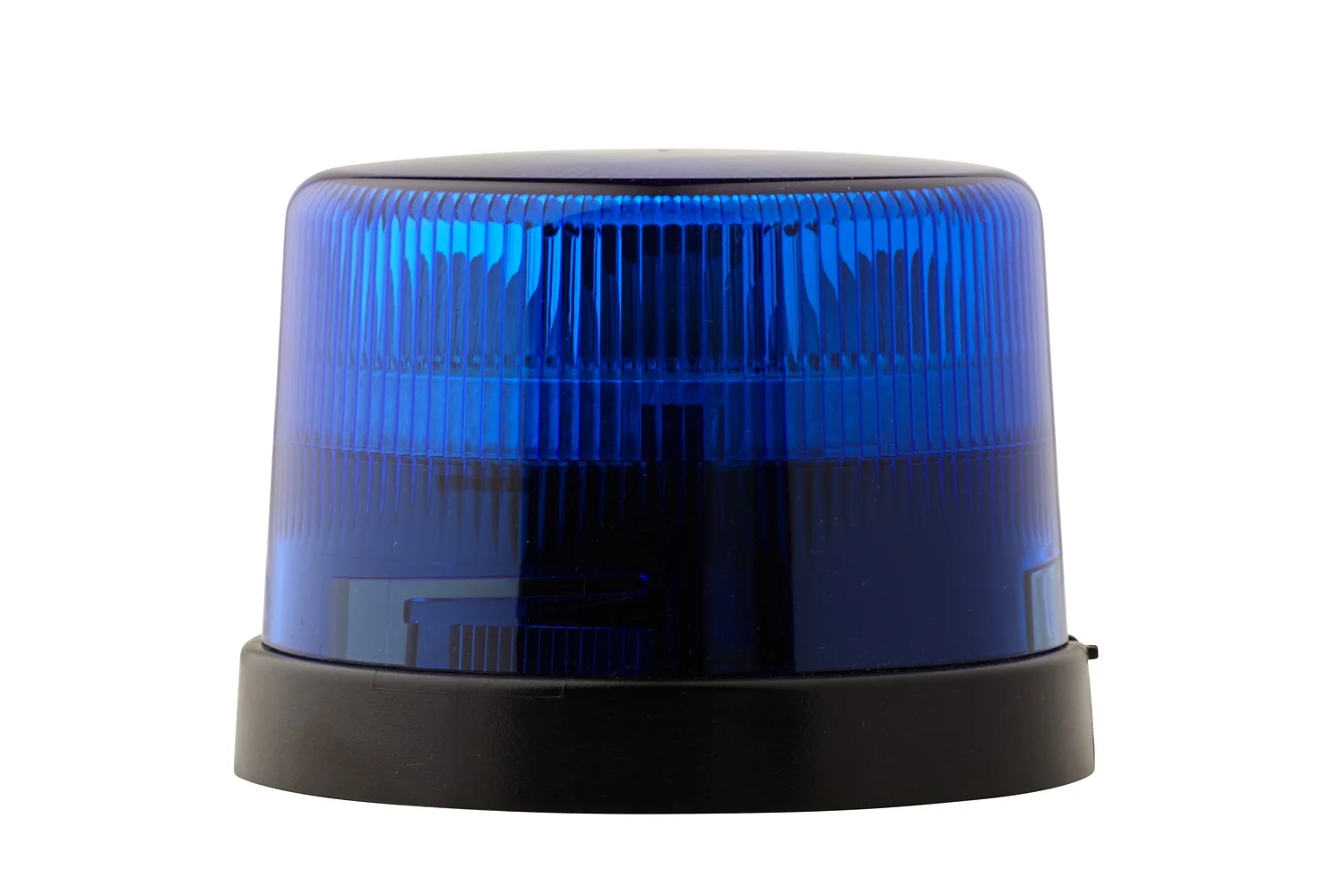

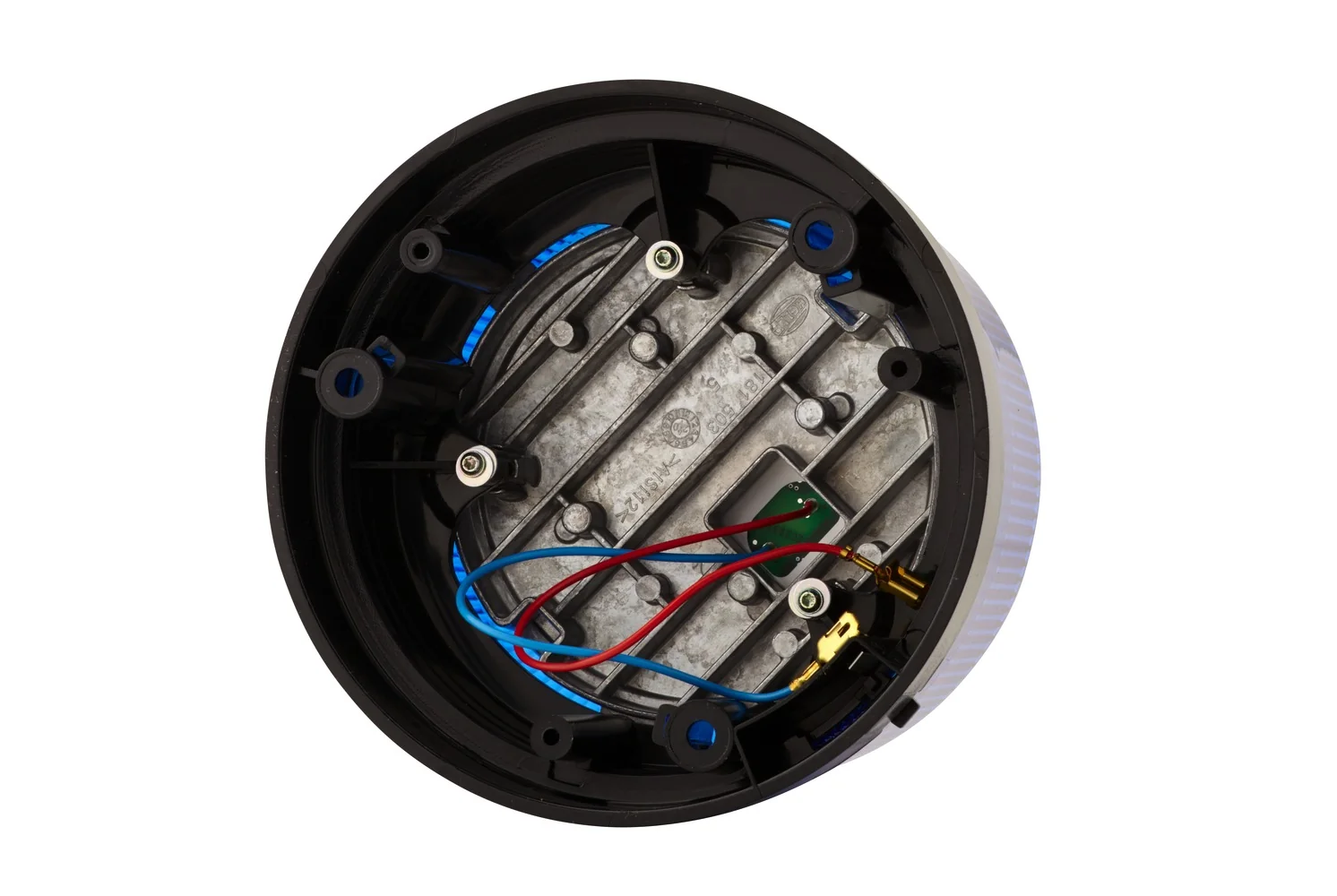

HELLA - 2RL 011 484-101 - LED-Rotating Beacon, KL 7000, 12/24V, Blue
HELLA - 2RL 011 484-101 - LED-Rotating Beacon, KL 7000, 12/24V, Blue
HELLA - 2RL 011 484-101 - LED-Rotating Beacon, KL 7000, 12/24V, Blue
HELLA - 2RL 011 484-101 - LED-Rotating Beacon, KL 7000, 12/24V, Blue
HELLA - 2RL 011 484-101 - LED-Rotating Beacon, KL 7000, 12/24V, Blue
HELLA - 2RL 011 484-101 - LED-Rotating Beacon, KL 7000, 12/24V, Blue

In stock - ready to ship

Order now for delivery between 28 May and 1 June
Free shipping

Pay Securely with

HELLA - 2RL 011 484-101 - LED-Rotating Beacon, KL 7000, 12/24V, Blue

HELLA - 2RL 011 484-101 - LED-Rotating Beacon, KL 7000, 12/24V, Blue

€125.41

(Excl. VAT)

Price

(Excl. VAT)

€125.41

Product Description

The KL 7000 LED beacon is available with flashing or rotating light function. The signal is generated by means of an electronic concept and thus without moving parts. The beacon can be connected to an operating voltage of 10 - 32 V and is available as a fixed-mount variant (F), with tube socket mounting (R) or with magnetic mounting (M). The fixed version can be mounted from above and below. The product is very flat and has a scratch-resistant and dirt-resistant smooth light bonnet. The height of the beacon is approx. 119 mm (F) to 194 mm (R), depending on the design. It meets the requirements of IP5K4K and IPX9K and is therefore protected against dust and resistant to high-pressure cleaners. In addition, the KL 7000 LED enables a 1:1 exchange from halogen to LED technology, as it is the successor of the halogen beacon series KL 700 and KL 7000.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Equivalent OEM Part Numbers

Rosenbauer

FE6012

Terex

2037.125.0010

Van hool

11574202

Vdl

11574202

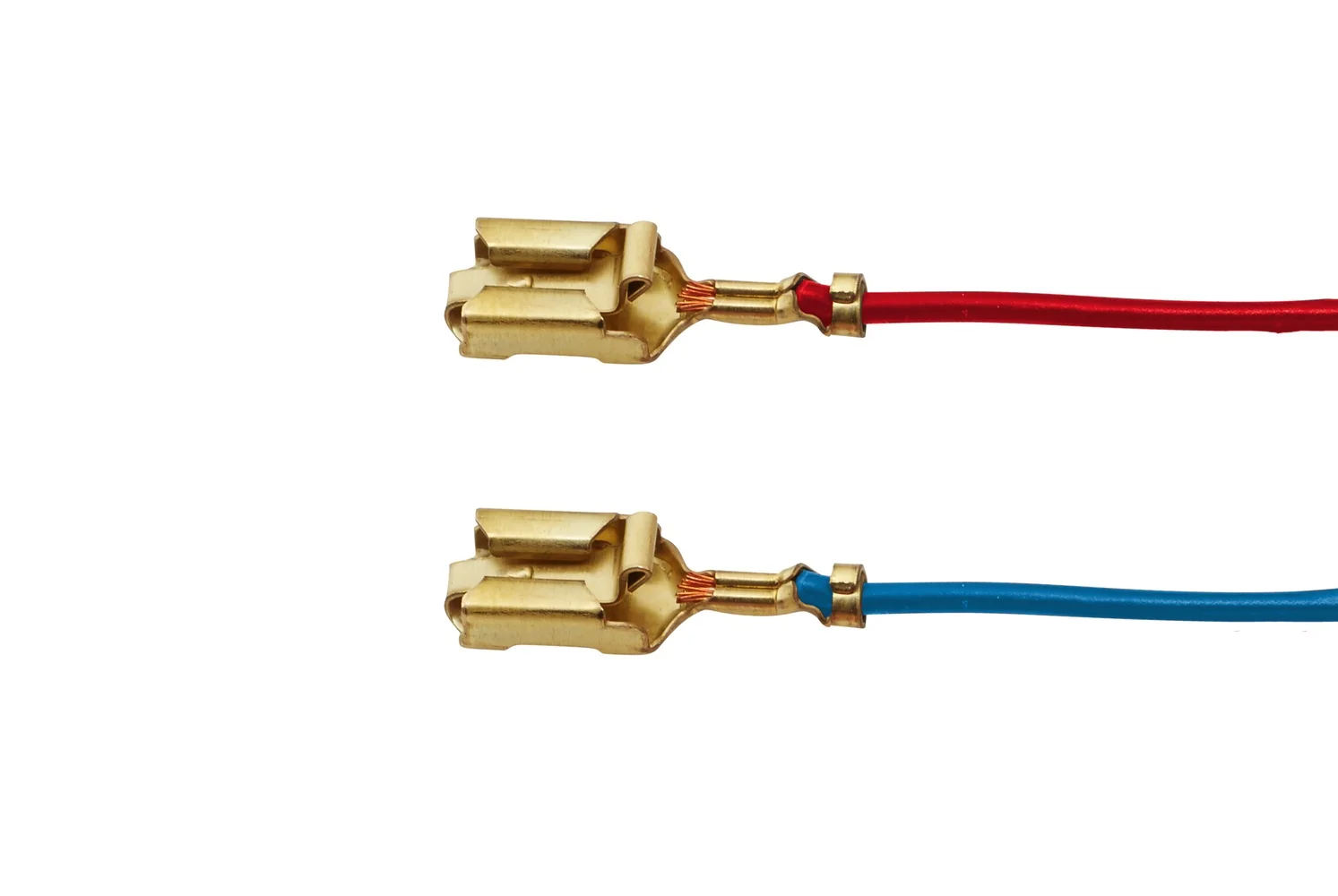

Plug
Blade Terminal
Cable
200 mm
Height
119 mm
Weight
910 g
Voltage
12 V / 24 V
Quantity
1
Lamp Type
LED
Lens Colour
Blue
Light Colour
Blue
Light Design
LED
Assembly Note
Assembly by qualified personnel required
Mounting Type
Bolted / mounting
Housing Colour
Black
Light Function
With rotating warning signal
Number of LEDs
8
Housing Material
ABS (Acrylonitrile-Butadiene-Styrene Copolymerisate)
Outer Diameter 1
165 mm
Power Consumption
9 W
Registration Type
SAE / ADR/GGVS
Rotating Beacon RPM
123 1/min
Fulfils ECE Standard
R10 / R65
Temperature Range To
+60 °C
Temperature Range From
-40 °C
Diffusing Lens Material
PMMA (Polymethylmethacrylate)
Protection Type (IP Code)
IP5K4K / IPX9K
Manufacturer
HELLA
