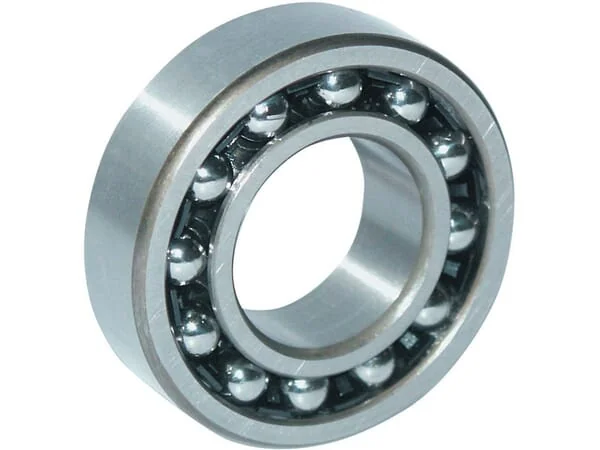

INA FAG - 1213KTVHC3 - Self-Aligning Ball Bearing
INA FAG - 1213KTVHC3 - Self-Aligning Ball Bearing
INA FAG - 1213KTVHC3 - Self-Aligning Ball Bearing
INA FAG - 1213KTVHC3 - Self-Aligning Ball Bearing
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

INA FAG - 1213KTVHC3 - Self-Aligning Ball Bearing

INA FAG - 1213KTVHC3 - Self-Aligning Ball Bearing

€67.24

(Excl. VAT)

Price

(Excl. VAT)

€67.24

Product Description

The INA-FAG 1213KTVHC3 is a high-quality self-aligning ball bearing from Schaeffler, featuring a 65mm tapered bore, 120mm outer diameter, and 23mm width. This genuine bearing is equipped with a glass fibre reinforced polyamide cage (TVH) and offers C3 radial internal clearance, making it suitable for applications with misalignment and moderate to high speeds. It ensures reliable performance and extended service life in demanding machinery.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 15,678 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Part Numbers
1213ktvhc3
Unit
Each
BWidth
23 mm
Weight
1,108 kg
Sealing
Open
Material
Steel
Properties
Self-adjusting roller bearing Double row With conical inner ring
Consists of
Self-adjusting roller bearing Expansion bush not included
Rows number
2
Inner ring shape
Tapered
dInside diameter
65 mm
Application range
Bearing design with considerable shaft deflection or alignment errors Conveyor belts Plants for steel production
DOutside diameter
120 mm
Bearing model type
Self-aligning ball bearings
Max rotation speed
6500 r/min
Ref rotation speed
6300 r/min
Basic radial load static
12500 N
Basic radial load dynamic
31000 N
Radial internal clearance code
C3
EAN
4012801159128
Manufacturer
INA/FAG
