INA FAG - 2309TVHC3 - Self-Aligning Ball Bearing

OEM Supplier

SKU: ina-fag-2309tvhc3

INA FAG - 2309TVHC3 - Self-Aligning Ball Bearing

€83.43

(excl. VAT)
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€83.43

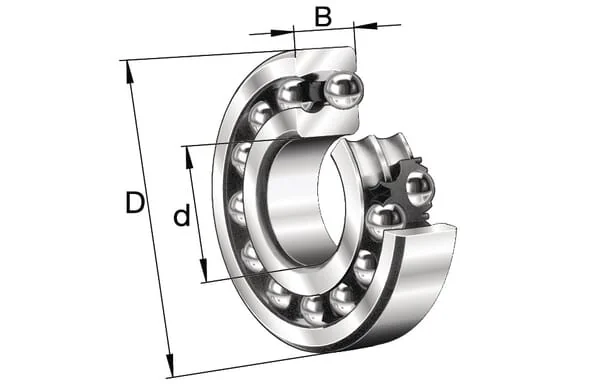

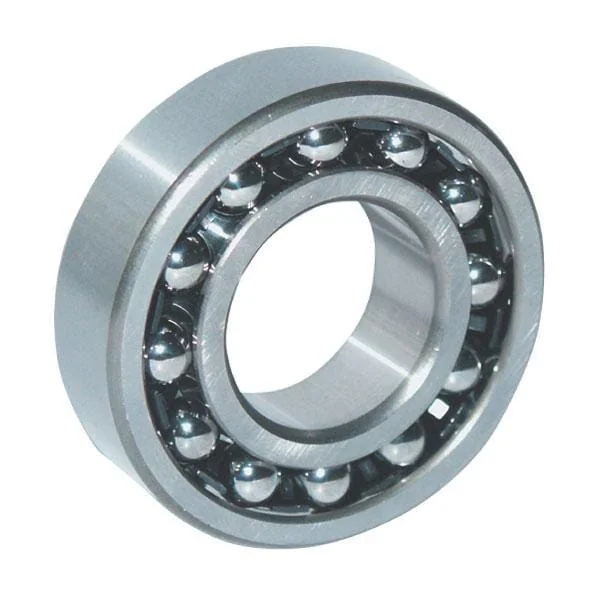

The INA-FAG 2309TVHC3 is a high-quality double row self-aligning ball bearing designed to accommodate angular misalignment between the shaft and housing. It features a 45 mm bore diameter, 100 mm outer diameter, and 36 mm width. The 'TVH' suffix indicates a robust solid cage made from glass fibre reinforced polyamide 66, while 'C3' denotes a radial internal clearance greater than normal, suitable for applications with higher operating temperatures or where thermal expansion is expected. This genuine FAG bearing ensures reliable performance in demanding industrial and agricultural machinery.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Part Numbers
2309tvhc3
OEM Part Numbers
Unit
Each
BWidth
36 mm
Weight
0,121 kg
Sealing
Open
Material
Steel
Properties
Self-adjusting roller bearing Double row
Rows number
2
Inner ring shape
Cylindrical
dInside diameter
45 mm
Application range
Bearing design with considerable shaft deflection or alignment errors Conveyor belts Plants for steel production
DOutside diameter
100 mm
Bearing model type
Self-aligning ball bearings
Max rotation speed
7000 r/min
Ref rotation speed
8000 r/min
Basic radial load static
16600 N
Basic radial load dynamic
55000 N
Radial internal clearance code
C3
EAN
4012801191722
Manufacturer
INA/FAG
