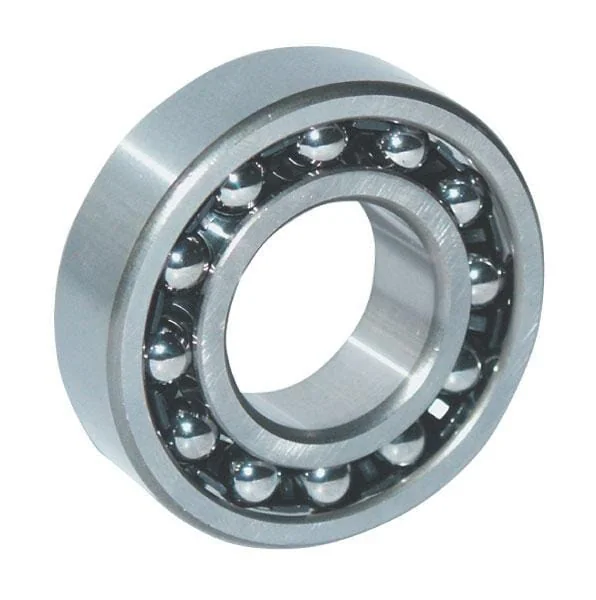

INA FAG - 2310TVH - Self-Aligning Ball Bearing Double Row

OEM Supplier

SKU: ina-fag-2310tvh

INA FAG - 2310TVH - Self-Aligning Ball Bearing Double Row

€109.56

(excl. VAT)
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€109.56

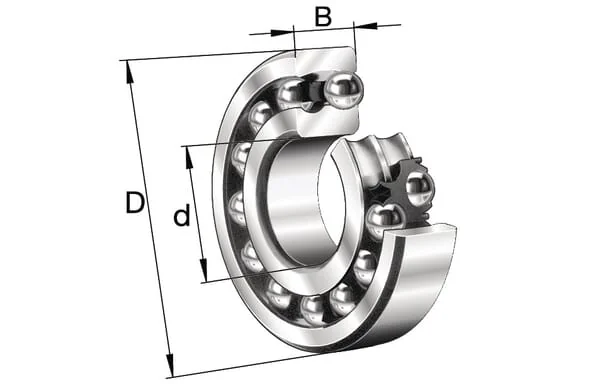

The INA-FAG 2310TVH is a high-quality, genuine double row self-aligning ball bearing. This bearing features a bore diameter of 50 mm, an outer diameter of 110 mm, and a width of 40 mm. It is engineered to accommodate angular misalignment between the shaft and housing, making it suitable for various industrial and agricultural machinery applications where shaft deflection or mounting errors may occur. The TVH designation indicates a solid window cage made of glass fibre reinforced polyamide.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Part Numbers
2310tvh
Unit
Each
BWidth
40 mm
Weight
1,622 kg
Sealing
Open
Material
Steel
Properties
Self-adjusting roller bearing Double row
Rows number
2
Inner ring shape
Cylindrical
dInside diameter
50 mm
Application range
Bearing design with considerable shaft deflection or alignment errors Conveyor belts Plants for steel production
DOutside diameter
110 mm
Bearing model type
Self-aligning ball bearings
Max rotation speed
6300 r/min
Ref rotation speed
6300 r/min
Basic radial load static
20200 N
Basic radial load dynamic
66000 N
Radial internal clearance code
CN
EAN
4012801191760
Manufacturer
INA/FAG
