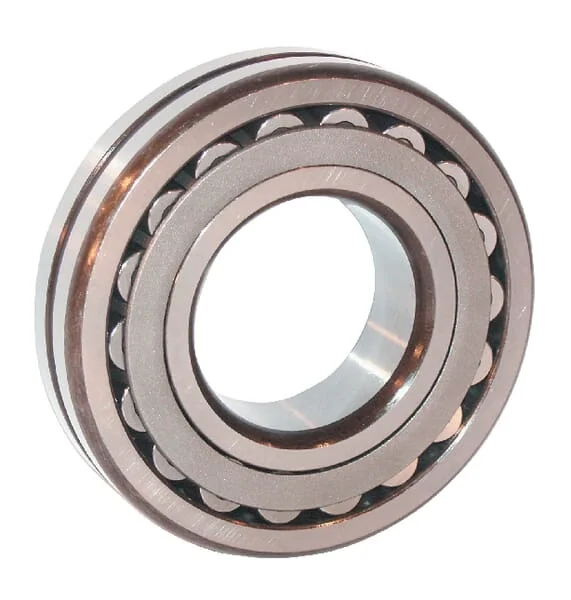

INA FAG - 23218E1XLKTVPBC3 - Spherical Roller Bearing

OEM Supplier

SKU: ina-fag-23218e1xlktvpbc3

INA FAG - 23218E1XLKTVPBC3 - Spherical Roller Bearing

€290.75

(excl. VAT)
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€290.75

The INA-FAG 23218-E1-XL-K-TVPB-C3 is a high-performance spherical roller bearing from FAG's X-Life series, featuring an optimized E1 internal design for increased load carrying capacity and extended service life. This robust bearing has a 90 mm tapered bore (1:12 taper), a 160 mm outer diameter, and a 52 mm width. It is equipped with a glass fibre reinforced polyamide cage (TVPB) guided by the inner ring and offers C3 radial internal clearance, making it suitable for applications requiring greater than normal operating clearance. With a dynamic load rating of 400 kN and a static load rating of 500 kN, it provides reliable performance in demanding industrial environments.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Part Numbers
23218e1xlktvpbc3
Unit
Each
CWidth
52,4 mm
Weight
4,106 kg
Includes
Spherical roller bearing with conical inner ring.
Extra info
Expansion bush ordered separately
Rows number
2
Inner ring shape
Tapered
DOutside diameter
160 mm
FwInside diameter
90 mm
Bearing model type
Spherical roller bearings
Max rotation speed
4250 r/min
Ref rotation speed
2650 r/min
Basic radial load static
520000 N
Basic radial load dynamic
445000 N
EAN
4026677809759
Manufacturer
INA/FAG
